22999 (ST 424) - Ariens 20" Sno-Thro Snow Blower, 4hp Tecumseh (SN: 010000 & Above) TRACTOR PARTS LIST Parts Diagram

20" Sno-Thro Snow Blower, 4hp Tecumseh

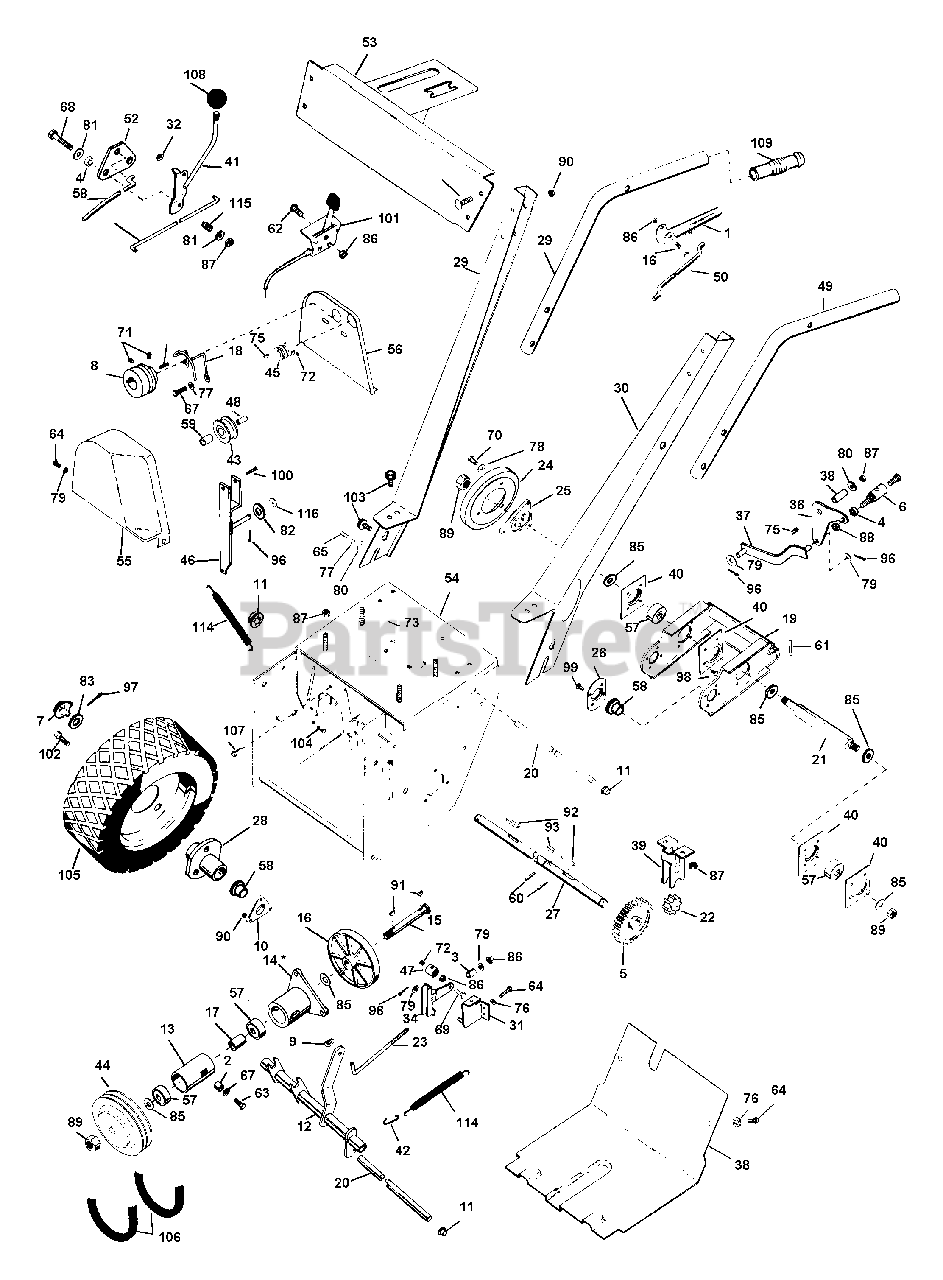

TRACTOR PARTS LIST Parts Diagram

  • Title

1

Ariens 00203800

CLUTCH HANDLE
(Superseded to 00203851)

$39.99

$

Usually ships in 4-12 days

0

2

Ariens 00303400

ROLLER

$15.99

$

In Stock, only 1 left!

0

3

Ariens 00327900

SPACER

$

$

Not available

4

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 01021100

SPUR GEAR, FELLOWS 35T .750 ID

$90.99

$

Usually ships in 4-12 days

0

6

Ariens 01024700

BALL JOINT

$35.99

$

Usually ships in 4-12 days

0

7

Ariens 01028800

HUB CAP

$

$

Not available

8

Ariens 01029400

ENGINE SHEAVE

$

$

Not available

9

Ariens 01037600

RATCHET PLATE

$

$

Not available

10

Ariens 01202300

SUPPORT, BEARING

$67.99

$

In Stock, Qty 5

0

11

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 02200100

FORK

$

$

Not available

13

Ariens 02200200

SPINDLE HOUSING
(Superseded to 52406000)

$171.99

$

Usually ships in 4-12 days

0

14

Ariens 02200300

DRIVE SPINDLE HOUSING
(Superseded to 52406000)

$171.99

$

Usually ships in 4-12 days

0

15

Ariens 02200400

SPINDLE

$

$

Not available

16

Ariens 02200500

DRIVE DISK

$

$

Not available

17

Ariens 02200600

BEARING SPACER .75 X .5 X.88

$

$

Not available

18

Ariens 02200700

BELT FINGER

$3.49

$

Usually ships in 4-12 days

0

19

Ariens 02200800

CARRIER
(Superseded to 02215800)

$

$

Not available

20

Ariens 02200900

SHAFT

$

$

Not available

21

Ariens 02201000

HEX SHAFT

$34.99

$

Usually ships in 4-12 days

0

22

Ariens 02201100

PINION

$10.99

$

In Stock, only 1 left!

0

23

Ariens 02201200

ADJUSTMENT LINK

$51.99

$

Usually ships in 4-12 days

0

24

Ariens 02201300

FRICTION DISC
(Superseded to 03248300)

$38.99

$

In Stock, Qty 12

0

25

Ariens 02201400

FRICTION DISC HUB

$

$

Not available

26

Ariens 02201500

BEARING RETAINER

$

$

Not available

27

Ariens 02201700

AXLE SHAFT

$92.99

$

Usually ships in 4-12 days

0

28

Ariens 02201800

WHEEL HUB

$

$

Not available

29

Ariens 02202000

R H LOWER HANDLE BAR
(Superseded to 02214500)

$

$

Not available

30

Ariens 02202100

L H LOWER HANDLE BAR
(Superseded to 02209500)

$

$

Not available

31

Ariens 02202500

DEADMAN BRACKET

$

$

Not available

32

Ariens 02202800

SPRINGGRIP FASTENER

$

$

Not available

33

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, Qty 6

0

34

Ariens 02203000

DEADMAN LEVER
(Superseded to 02214300)

$

$

Not available

35

Ariens 02203400

SHIFT ROD

$

$

Not available

36

Ariens 02203500

SHIFT LEVER

$

$

Not available

37

Ariens 02203800

SHIFT LINK

$

$

Not available

38

Ariens 02204000

COVER

$

$

Not available

39

Ariens 02204100

FORK

$

$

Not available

40

Ariens 02204200

BEARING RETAINER
(Superseded to 02414100)

$18.99

$

In Stock, only 1 left!

0

41

Ariens 02204400

SHIFT HANDLE

$

$

Not available

42

Ariens 02204500

SPRING HOOK

$

$

Not available

43

Ariens 02204700

IDLER

$55.99

$

Usually ships in 4-12 days

0

44

Ariens 02204800

DRIVE SHEAVE

$

$

Not available

45

Ariens 02204900

CAMSHAFT SHEAVE
(Superseded to 02208900)

$53.99

$

Usually ships in 4-12 days

0

46

Ariens 02205000

IDLER ARM

$

$

Not available

47

Ariens 02205100

ROD ADAPTER

$

$

Not available

48

Ariens 02205300

IDLER SHAFT

$20.99

$

Usually ships in 4-12 days

0

49

Ariens 02205500

HANDLE BARS

$

$

Not available

50

Ariens 02205700

UPPER CLTCH ROD

$

$

Not available

51

Ariens 02205800

LOWER CLTCH ROD

$

$

Not available

52

Ariens 02205900

LINK

$

$

Not available

53

Ariens 02206000

HNDLBR BRCKT

$

$

Not available

54

Ariens 02206100

TRACTOR FRAME
(Superseded to 02206600)

$

$

Not available

55

Ariens 02211700

OUTER BELT COVER
(Superseded to 02217400)

$

$

Not available

56

Ariens 02211800

INNER BELT COVER
(Superseded to 02210000)

$

$

Not available

57

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

58

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 9

0

59

Ariens 05504800

BSHG-SLV .500X.625X.937

$59.99

$

In Stock, only 2 left!

0

60

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 18

0

61

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

62

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

63

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 8

0

64

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

65

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 15

0

66

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 8

0

67

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

68

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$2.99

$

In Stock, Qty 12

0

69

Ariens 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

70

Ariens 05910400

BLT-HEX .25-20X.38 PL GR2
(Superseded to 05947600)

$1.99

$

Usually ships in 4-12 days

0

71

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

72

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0

73

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, only 4 left!

0

74

Ariens 06202100

BLT-RDHDSQNK .25-20X1.50 SHTPL

$

$

Not available

75

Ariens 06202400

BLT-RDHDSQNK .31-18X2.0 SHT PL

$

$

Not available

76

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

77

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

78

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

79

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

In Stock, only 2 left!

0

80

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

81

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 10

0

82

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$1.49

$

Usually ships in 4-12 days

0

83

Ariens 06404200

WSHR-FL-STL .755X2.000X.125
(Superseded to 06444800)

$4.99

$

Usually ships in 4-12 days

0

84

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, only 2 left!

0

85

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

86

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

87

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

88

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

$1.49

$

In Stock, only 3 left!

0

89

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

In Stock, only 1 left!

0

90

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

91

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

92

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

$8.49

$

In Stock, Qty 7

0

93

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 5

0

94

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

95

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

96

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

97

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 8

0

98

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 11

0

99

Ariens 06803100

RVT-POP.125 X .294 DOME

$

$

Not available

100

Ariens 06804500

RVT-TBLR .187X1.343 OH ST YZWC

$1.49

$

Usually ships in 4-12 days

0

101

Ariens 06903200

THROTTLE CONTROL

$

$

Not available

102

Ariens 07000500

BLT-WHL .50-20X.50 GR5 PL
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

103

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

104

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

105

Ariens 07107500

WHL 10.25 IN O.D.
(Superseded to 52202400)

$310.99

$

In Stock, only 1 left!

0

106

Ariens 07202300

V-BELT, SPECIAL-RAW EDGE (SET)

Note: (Matched pairs only)

$51.99

$

In Stock, Qty 5

0

107

Ariens 07402500

SCR-TAP .312-18X.50 CRPH PL 1A

$

$

Not available

108

Ariens 07500100

SHIFT BALL
(Superseded to 07505200)

$20.99

$

Usually ships in 4-12 days

0

109

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

110

Ariens 07803300

4 HP ENGINE DECAL

$

$

Not available

111

Ariens 07805900

CAUTION DECAL
(Superseded to 52416300)

$58.99

$

In Stock, only 1 left!

0

112

Ariens 07806000

SHIFT DECAL

$

$

Not available

113

Ariens 07806100

HANDLEBAR DECAL
(Superseded to 07798500)

$

$

Not available

114

Ariens 08302600

SG-TENS .063X.44X2.81 WLD 18

$20.99

$

Usually ships in 4-12 days

0

115

Ariens 08302900

SG-COMP .092X.375X2.53
(Superseded to 08309000)

$39.99

$

Usually ships in 4-12 days

0
