22P50L10X8A (96117001404) - Murray 22" Walk-Behind Mower (2010) Deck Group (961170010404) Parts Diagram

22" Walk-Behind Mower

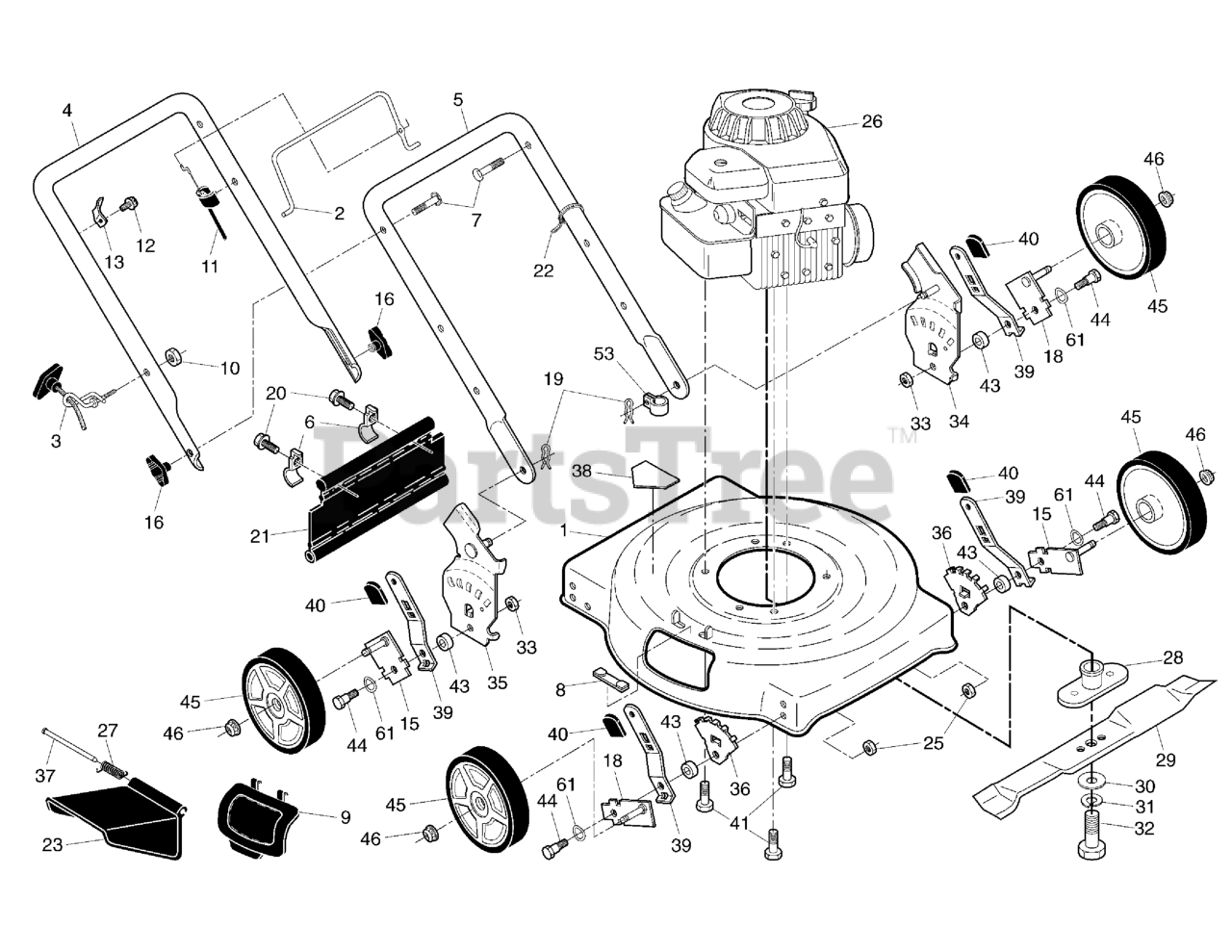

Deck Group (961170010404) Parts Diagram

  • Title

1

Murray 708185

Kit, Housing (Includes Key Number 38)

$296.99

$

Usually ships in 2-12 days

0

2

Murray 709273

Control Bar

$

$

Not available

3

Murray 709279

Rope Guide

$35.99

$

In Stock, only 1 left!

0

4

Murray 709384

Upper Handle

$85.99

$

Usually ships in 2-12 days

0

5

Murray 708680

Lower Handle

$185.99

$

Usually ships in 2-12 days

0

6

Murray 708596

Shoulder Bolt 5/16-18 x 1/2

$6.99

$

Usually ships in 2-12 days

0

7

Murray 709234

Handle Bolt 5/16-18

$7.49

$

Usually ships in 2-12 days

0

8

Murray 708170

Clip, Closeout

$9.49

$

Usually ships in 2-12 days

0

9

Murray 708691

Mulcher Plate

$

$

Not available

10

Murray 709054

Locknut, Hex 1/4-20

$4.99

$

Usually ships in 2-12 days

0

11

Murray 709382

Engine Zone Control Cable

$41.99

$

Usually ships in 2-12 days

0

12

Murray 709195

Screw, Hex Head, Threaded, Rolled, #10-16 x 5/8

$4.49

$

Usually ships in 2-12 days

0

13

Murray 709368

Up-Stop Bracket
(Superseded to 707659)

$9.99

$

Usually ships in 2-12 days

0

15

Murray 709300

Axle Arm Assembly, Left Front & Right Rear

$14.99

$

Usually ships in 2-12 days

0

16

Murray 709219

Handle Knob

$7.49

$

In Stock, only 2 left!

0

18

Murray 709301

Axle Arm Assembly, Right Front & Left Rear

$16.99

$

In Stock, only 1 left!

0

19

Murray 709387

Hairpin Cotter

$9.99

$

Usually ships in 2-12 days

0

20

Murray 709444

Screw, Tapping, Hex Washer Head #10-24

$5.49

$

In Stock, Qty 20+

0

21

Murray 708404

Rear Defl ector

$45.99

$

In Stock, only 2 left!

0

22

Murray 709409

Wire Tie

$6.99

$

In Stock, only 1 left!

0

23

Murray 708168

Discharge Guard

$32.99

$

In Stock, only 4 left!

0

25

Murray 709354

Nut, Hex, Flangelock 5/16-18

$8.99

$

Usually ships in 2-12 days

0

26

Murray 10T602-0149-H1

* ENGINE, Briggs & Stratton

Note: ( Engine Model: 10T602-0149-H1 )

$

$

Currently unavailable

27

Murray 708393

Torsion Spring

$19.99

$

In Stock, Qty 11

0

28

Murray 708468

Blade Adapter
(Superseded to 707856)

$37.99

$

In Stock, only 1 left!

0

29

Murray 708070

22" Blade

$36.99

$

In Stock, only 1 left!

0

30

Murray 709448

Hardened Washer

$9.99

$

In Stock, only 1 left!

0

31

Murray 705316

Helical Lockwasher 3/8

$5.49

$

In Stock, only 1 left!

0

32

Murray 709449

Screw, Hex Head, 3/8-24 x 1-3/8, G8

$9.99

$

Usually ships in 2-12 days

0

33

Murray 705355

Nut, Hex, Flangelock 5/16-18

$12.99

$

In Stock, only 1 left!

0

34

Murray 708647

Wheel Bracket Support, LH
(Superseded to 709787)

$30.99

$

In Stock, only 4 left!

0

35

Murray 708648

Wheel Bracket Support, RH
(Superseded to 709840)

$33.99

$

In Stock, only 3 left!

0

36

Murray 708661

Wheel Bracket Adjuster

$8.99

$

Usually ships in 2-12 days

0

37

Murray 708169

Hinge Rod

$9.49

$

Usually ships in 2-12 days

0

38

Murray 708373

Danger Decal
(Superseded to 709792)

$10.99

$

Usually ships in 2-12 days

0

39

Murray 709304

Selector Spring

$12.99

$

In Stock, only 1 left!

0

40

Murray 709451

Selector Knob

$9.49

$

In Stock, only 2 left!

0

41

Murray 709093

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

43

Murray 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

44

Murray 709307

Shoulder Bolt 5/16-18 x .33

$7.99

$

In Stock, only 1 left!

0

45

Murray 708613

Wheel & Tire Assembly

$31.99

$

In Stock, only 1 left!

0

46

Murray 709321

Nut, Hex, Flangelock 3/8-16

$9.99

$

In Stock, only 1 left!

0

53

Murray 709289

Clip, Cable

$7.49

$

Usually ships in 2-12 days

0

61

Murray 709306

Washer, Curved, Cylindrical

$10.99

$

Usually ships in 2-12 days

0

--

Murray 708374

Warning Decal (not shown)

$13.99

$

Usually ships in 2-12 days

0

--

Murray 709266

Operator's Manual, English

$9.49

$

Usually ships in 2-12 days

0

--

Murray 709269

Operator's Manual, Spanish

$9.49

$

Usually ships in 2-12 days

0
