22P65H30X8A (96137002004) - Murray 22" Walk-Behind Mower (2010) Deck Group (96137002004) Parts Diagram

22" Walk-Behind Mower

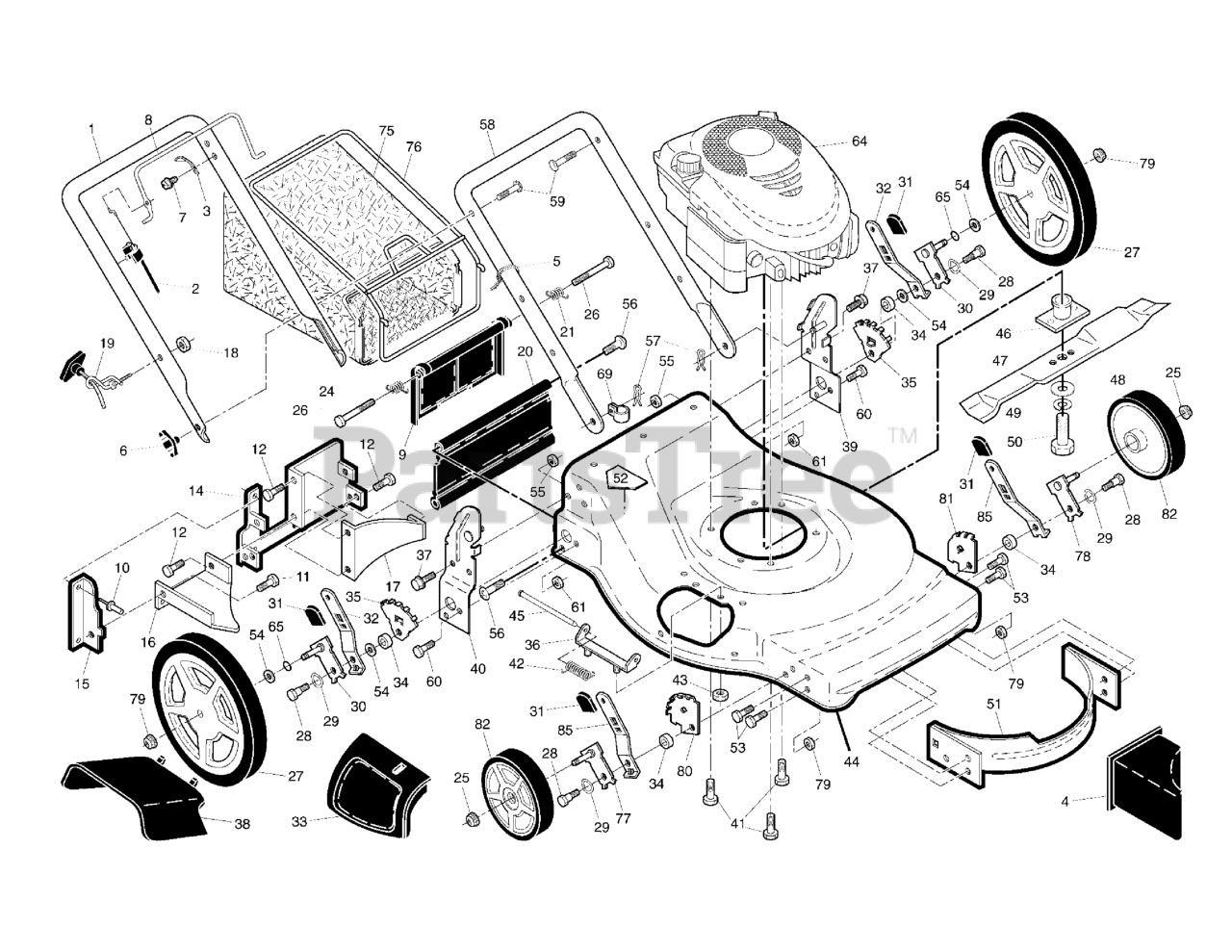

Deck Group (96137002004) Parts Diagram

  • Title

1

Murray 709384

Upper Handle

$85.99

$

Usually ships in 2-12 days

0

2

Murray 709382

Engine Zone Control Cable

$41.99

$

Usually ships in 2-12 days

0

3

Murray 709368

Bracket, Upstop
(Superseded to 707659)

$9.99

$

Usually ships in 2-12 days

0

4

Murray 708176

Mulcher Plug

$

$

Not available

5

Murray 709409

Wire Tie

$6.99

$

In Stock, only 1 left!

0

6

Murray 709219

Handle Knob

$7.49

$

In Stock, only 2 left!

0

7

Murray 709195

Screw

$4.49

$

Usually ships in 2-12 days

0

8

Murray 709273

Control Bar

$

$

Not available

9

Murray 708656

Rear Door Assembly

$32.99

$

Usually ships in 2-12 days

0

10

Murray 708007

Pop Rivet

$6.99

$

Usually ships in 2-12 days

0

11

Murray 708052

Screw, Self-Tapping, #10-24 x 5/8

$6.49

$

Usually ships in 2-12 days

0

12

Murray 708472

Screw, Hex Hex Head, Sems, 1/4-20 x 5/8

$7.49

$

Usually ships in 2-12 days

0

14

Murray 708625

Back Plate

$32.99

$

Usually ships in 2-12 days

0

15

Murray 708666

Side Baffl e

$10.99

$

Usually ships in 2-12 days

0

16

Murray 708584

Discharge Baffle

$23.99

$

Usually ships in 2-12 days

0

17

Murray 708572

Rear Baffle

$18.99

$

Usually ships in 2-12 days

0

18

Murray 709054

Keps Locknut 1/4-20

$4.99

$

Usually ships in 2-12 days

0

19

Murray 709279

Rope Guide

$35.99

$

In Stock, only 1 left!

0

20

Murray 708404

Rear Skirt

$45.99

$

In Stock, only 2 left!

0

21

Murray 709312

Spring, Rear Door, LH

$4.49

$

Usually ships in 2-12 days

0

24

Murray 709313

Spring, Rear Door, RH

$4.49

$

Usually ships in 2-12 days

0

25

Murray 709321

Nut, Hex, Flanged

$9.99

$

In Stock, only 1 left!

0

26

Murray 709205

Bolt, Rear Door

$4.99

$

Usually ships in 2-12 days

0

27

Murray 709395

Wheel & Tire Assembly, Rear

$63.99

$

In Stock, only 1 left!

0

28

Murray 708189

Bolt, Shoulder 3/8-16 x 1

$7.49

$

Usually ships in 2-12 days

0

29

Murray 709306

Washer, Curved, Cylindrical

$10.99

$

Usually ships in 2-12 days

0

30

Murray 708652

Axle Arm Assembly, Rear
(Superseded to 709790)

$10.99

$

Usually ships in 2-12 days

0

31

Murray 709451

Selector Knob

$9.49

$

In Stock, only 2 left!

0

32

Murray 708655

Selector Spring, Rear

$6.99

$

Usually ships in 2-12 days

0

33

Murray 708595

Mulcher Door
(Superseded to 709774)

$27.99

$

Usually ships in 2-12 days

0

34

Murray 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

35

Murray 708685

Wheel Adjusting Bracket, Rear

$6.49

$

Usually ships in 2-12 days

0

36

Murray 709183

Hinge Bracket Assembly

$13.99

$

In Stock, only 1 left!

0

37

Murray 705321

Screw
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

38

Murray 708657

Discharge Deflector

$35.99

$

Usually ships in 2-12 days

0

39

Murray 708628

Handle Bracket Assembly, LH

$21.99

$

Usually ships in 2-12 days

0

40

Murray 708627

Handle Bracket Assembly, RH

$21.99

$

Usually ships in 2-12 days

0

41

Murray 709093

Screw, Hex Head, Threaded, Rolled, 3/8-16 x 1-1/5
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

42

Murray 709257

Spring, Torsion

$10.99

$

In Stock, only 1 left!

0

43

Murray 709432

Nut, Hex, Nylock
(Superseded to 705713)

$5.99

$

Usually ships in 2-12 days

0

44

Murray 708409

Kit, Lawn Mower Housing (Includes Ref. Nos. 14, 15 & 51)

$296.99

$

Usually ships in 2-12 days

0

45

Murray 709178

Rod, Hinge

$12.99

$

In Stock, only 1 left!

0

46

Murray 709333

Blade Adapter

$21.99

$

Usually ships in 2-12 days

0

47

Murray 708070

Blade, 22"

$36.99

$

In Stock, only 1 left!

0

48

Murray 709448

Washer, Hardened

$9.99

$

In Stock, only 1 left!

0

49

Murray 705316

Washer, Helical

$5.49

$

In Stock, only 1 left!

0

50

Murray 709449

Screw, Machine, Hex Head, 3/8-24 x 1-3/8, G8

$9.99

$

Usually ships in 2-12 days

0

51

Murray 708180

Kit, Front Baffle (Includes Ref. No 53)

$51.99

$

Usually ships in 2-12 days

0

52

Murray 708373

Danger Decal
(Superseded to 709792)

$10.99

$

Usually ships in 2-12 days

0

53

Murray 709185

Screw, Serrated, Type TT, 1/4-20

$5.99

$

In Stock, only 1 left!

0

54

Murray 709452

Washer, Flat

$6.99

$

Usually ships in 2-12 days

0

55

Murray 708495

Locknut, Hex 3/8-16
(Superseded to 705351)

$6.49

$

Usually ships in 2-12 days

0

56

Murray 708006

Hinge Screw 1/4-20 x 1-1/4

$9.49

$

Usually ships in 2-12 days

0

57

Murray 709387

Hairpin Cotter

$9.99

$

Usually ships in 2-12 days

0

58

Murray 708680

Lower Handle

$185.99

$

Usually ships in 2-12 days

0

59

Murray 709234

Handle Bolt

$7.49

$

Usually ships in 2-12 days

0

60

Murray 705365

Bolt, Hex Head 3/8-16 x 3/4

$5.49

$

In Stock, only 2 left!

0

61

Murray 708495

Locknut, Hex 3/8-16
(Superseded to 705351)

$6.49

$

Usually ships in 2-12 days

0

64

Murray 124T02-6626-ED

* Engine, Briggs & Stratton

$

$

Currently unavailable

65

Murray 709288

O-Ring

$7.49

$

Usually ships in 2-12 days

0

69

Murray 709289

Clip, Cable

$7.49

$

Usually ships in 2-12 days

0

75

Murray 708453

Grassbag Assembly

$59.99

$

Usually ships in 2-12 days

0

76

Murray 708400

Frame, Grassbag

$122.99

$

Usually ships in 2-12 days

0

77

Murray 709301

Axle Arm Assembly, Front, RH

$16.99

$

In Stock, only 1 left!

0

78

Murray 709300

Axle Arm Assembly, Front, LH

$14.99

$

Usually ships in 2-12 days

0

79

Murray 409149

Locknut, Hex 1/4-20

Note: (This part is not serviced by Briggs & Stratton. )

$4.99

$

In Stock, Qty 20+

0

80

Murray 708659

Wheel Adjusting Bracket, Front, RH

$6.49

$

Usually ships in 2-12 days

0

81

Murray 708660

Wheel Adjusting Bracket, Front, LH

$6.49

$

Usually ships in 2-12 days

0

82

Murray 708613

Wheel & Tire Assembly, Front

$31.99

$

In Stock, only 1 left!

0

85

Murray 709304

Selector Spring, Front

$12.99

$

In Stock, only 1 left!

0

--

Murray 708374

Warning Decal (not shown)

$13.99

$

Usually ships in 2-12 days

0

--

Murray 709266

Operator's Manual, English

$9.49

$

Usually ships in 2-12 days

0

--

Murray 709269

Operator's Manual, Spanish

$9.49

$

Usually ships in 2-12 days

0
