22S67L30X8A (96147001503) - Murray 22" Walk-Behind Mower (2010) Deck Group (96147001503dk) Parts Diagram

22" Walk-Behind Mower

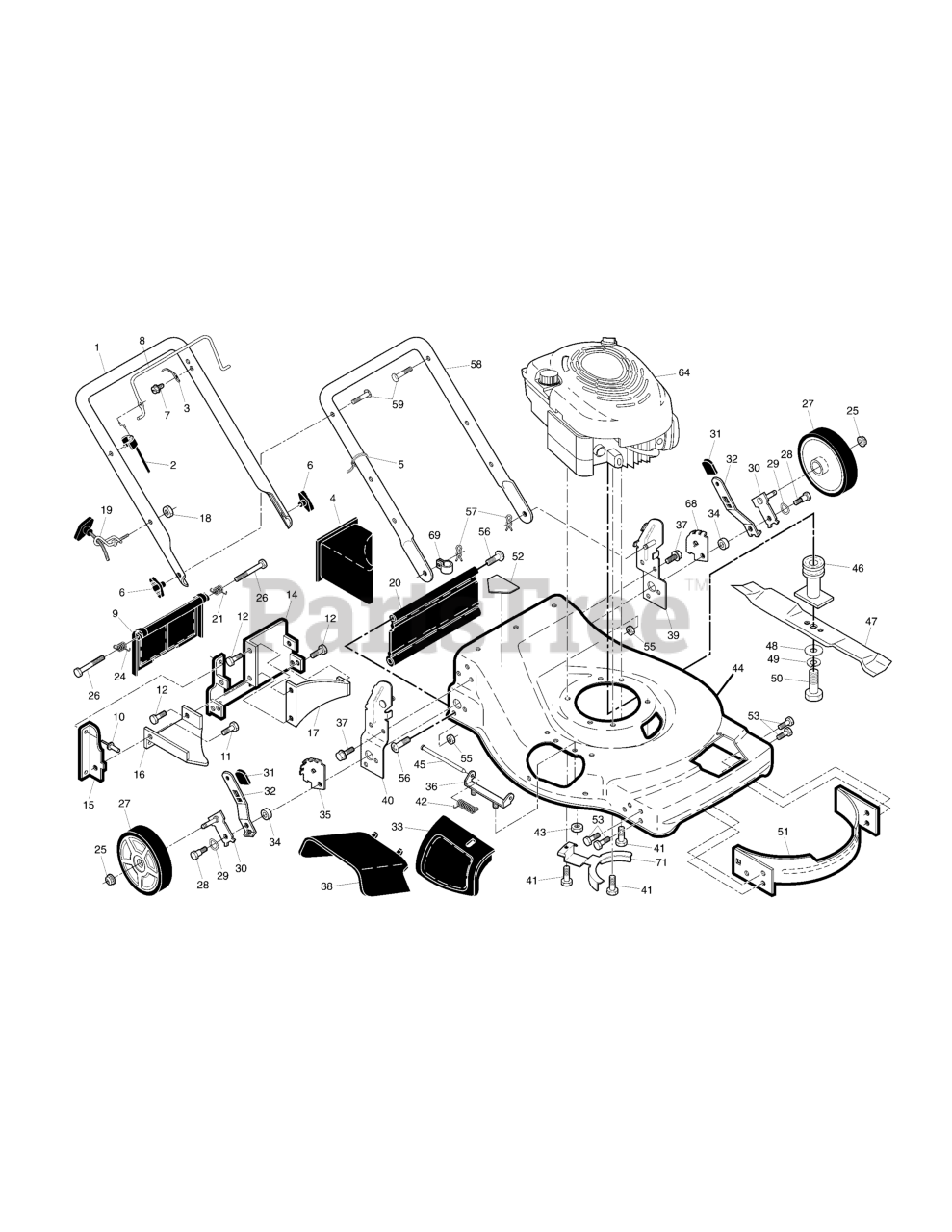

Deck Group (96147001503dk) Parts Diagram

  • Title

1

Murray 708676

Upper Handle

$83.99

$

Usually ships in 2-12 days

0

2

Murray 707993

Engine Zone Control Cable

$29.99

$

Usually ships in 2-12 days

0

3

Murray 708689

Bracket, Upstop

$7.49

$

Usually ships in 2-12 days

0

4

Murray 708176

Mulcher Plug

$

$

Not available

5

Murray 709409

Wire Tie

$6.99

$

In Stock, only 1 left!

0

6

Murray 709219

Handle Knob

$7.49

$

In Stock, only 2 left!

0

7

Murray 708466

Screw

$6.49

$

Usually ships in 2-12 days

0

8

Murray 708675

Control Bar

$38.99

$

Usually ships in 2-12 days

0

9

Murray 708656

Rear Door Assembly

$32.99

$

Usually ships in 2-12 days

0

10

Murray 708007

Pop Rivet

$6.99

$

Usually ships in 2-12 days

0

11

Murray 708052

Screw, Self-Tapping, #10-24 X 5/8

$6.49

$

Usually ships in 2-12 days

0

12

Murray 708472

Screw, Sems, Hex Head, 1/4-20 X 1/2

$7.49

$

Usually ships in 2-12 days

0

14

Murray 708625

Back Plate

$32.99

$

Usually ships in 2-12 days

0

15

Murray 708666

Side Baffle

$10.99

$

Usually ships in 2-12 days

0

16

Murray 708584

Discharge Baffle

$23.99

$

Usually ships in 2-12 days

0

17

Murray 708572

Rear Baffle

$18.99

$

Usually ships in 2-12 days

0

18

Murray 709054

Keps Locknut 1/4-20

$4.99

$

Usually ships in 2-12 days

0

19

Murray 709279

Rope Guide

$35.99

$

In Stock, only 1 left!

0

20

Murray 708404

Rear Skirt

$45.99

$

In Stock, only 2 left!

0

21

Murray 709312

Spring, Rear Door, LH

$4.49

$

Usually ships in 2-12 days

0

24

Murray 709313

Spring, Rear Door, RH

$4.49

$

Usually ships in 2-12 days

0

25

Murray 709321

Nut, Hex, Flanged

$9.99

$

In Stock, only 1 left!

0

26

Murray 709205

Bolt, Rear Door

$4.99

$

Usually ships in 2-12 days

0

27

Murray 708615

Wheel & Tire Assy., Rear

$26.99

$

Usually ships in 2-12 days

0

28

Murray 708189

Bolt, Shoulder 3/8-16 x 1

$7.49

$

Usually ships in 2-12 days

0

29

Murray 709306

Washer, Curved, Cylindrical

$10.99

$

Usually ships in 2-12 days

0

30

Murray 708651

Axle Arm Assembly

$13.99

$

Usually ships in 2-12 days

0

31

Murray 709451

Selector Knob

$9.49

$

In Stock, only 2 left!

0

32

Murray 709304

Selector Spring

$12.99

$

In Stock, only 1 left!

0

33

Murray 708595

Mulcher Door
(Superseded to 709774)

$27.99

$

Usually ships in 2-12 days

0

34

Murray 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

35

Murray 708659

Wheel Adjusting Bracket, RH

$6.49

$

Usually ships in 2-12 days

0

36

Murray 709183

Hinge Bracket

$13.99

$

In Stock, only 1 left!

0

37

Murray 705321

Screw
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

38

Murray 708657

Discharge Defl ector

$35.99

$

Usually ships in 2-12 days

0

39

Murray 708629

Handle Bracket Assy., LH

$17.99

$

Usually ships in 2-12 days

0

40

Murray 708630

Handle Bracket Assy., RH

$21.99

$

Usually ships in 2-12 days

0

41

Murray 709093

Screw, Hex Head, Thread Roll, 3/8-16 x 1-1/8
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

42

Murray 709257

Hinge Spring

$10.99

$

In Stock, only 1 left!

0

43

Murray 709432

Nut, Hex, Nylock
(Superseded to 705713)

$5.99

$

Usually ships in 2-12 days

0

44

Murray 708410

Kit, Housing (Includes Ref. Nos. 14, 15 & 51)

$296.99

$

Usually ships in 2-12 days

0

45

Murray 709178

Hinge Rod

$12.99

$

In Stock, only 1 left!

0

46

Murray 707994

Blade Adapter / Pulley
(Superseded to 709733)

$33.99

$

Usually ships in 2-12 days

0

47

Murray 708070

Blade, 22"

$36.99

$

In Stock, only 1 left!

0

48

Murray 709448

Washer, Hardened

$9.99

$

In Stock, only 1 left!

0

49

Murray 705316

Washer, Helical

$5.49

$

In Stock, only 1 left!

0

50

Murray 709449

Screw, Machine, Hex Head, 3/8-24 x 1-3/8, G8

$9.99

$

Usually ships in 2-12 days

0

51

Murray 708180

Kit, Front Baffle (Includes Ref. 53)

$51.99

$

Usually ships in 2-12 days

0

52

Murray 708373

Danger Decal
(Superseded to 709792)

$10.99

$

Usually ships in 2-12 days

0

53

Murray 709185

Screw, Serrated, Type TT, 1/4-20

$5.99

$

In Stock, only 1 left!

0

55

Murray 708495

Nut, Hex 3/8-16
(Superseded to 705351)

$6.49

$

Usually ships in 2-12 days

0

56

Murray 708006

Hinge Screw 1/4-20 x 1-1/4

$9.49

$

Usually ships in 2-12 days

0

57

Murray 709387

Hairpin Cotter

$9.99

$

Usually ships in 2-12 days

0

58

Murray 708574

Lower Handle

$99.99

$

Usually ships in 2-12 days

0

59

Murray 709234

Handle Bolt

$7.49

$

Usually ships in 2-12 days

0

64

Murray 126T02-0934-B1

* Engine, Briggs & Stratton

$

$

Currently unavailable

68

Murray 708660

Wheel Adjusting Bracket, LH

$6.49

$

Usually ships in 2-12 days

0

69

Murray 709289

Clip, Cable

$7.49

$

Usually ships in 2-12 days

0

71

Murray 708674

Belt Keeper

$10.99

$

Usually ships in 2-12 days

0

--

Murray 708374

Warning Decal (not shown)

$13.99

$

Usually ships in 2-12 days

0

--

Murray 709267

Operator's Manual, English

$11.99

$

Usually ships in 2-12 days

0

--

Murray 193743

Operator's Manual, Spanish

$2.99

$

Usually ships in 3-10 days

0
