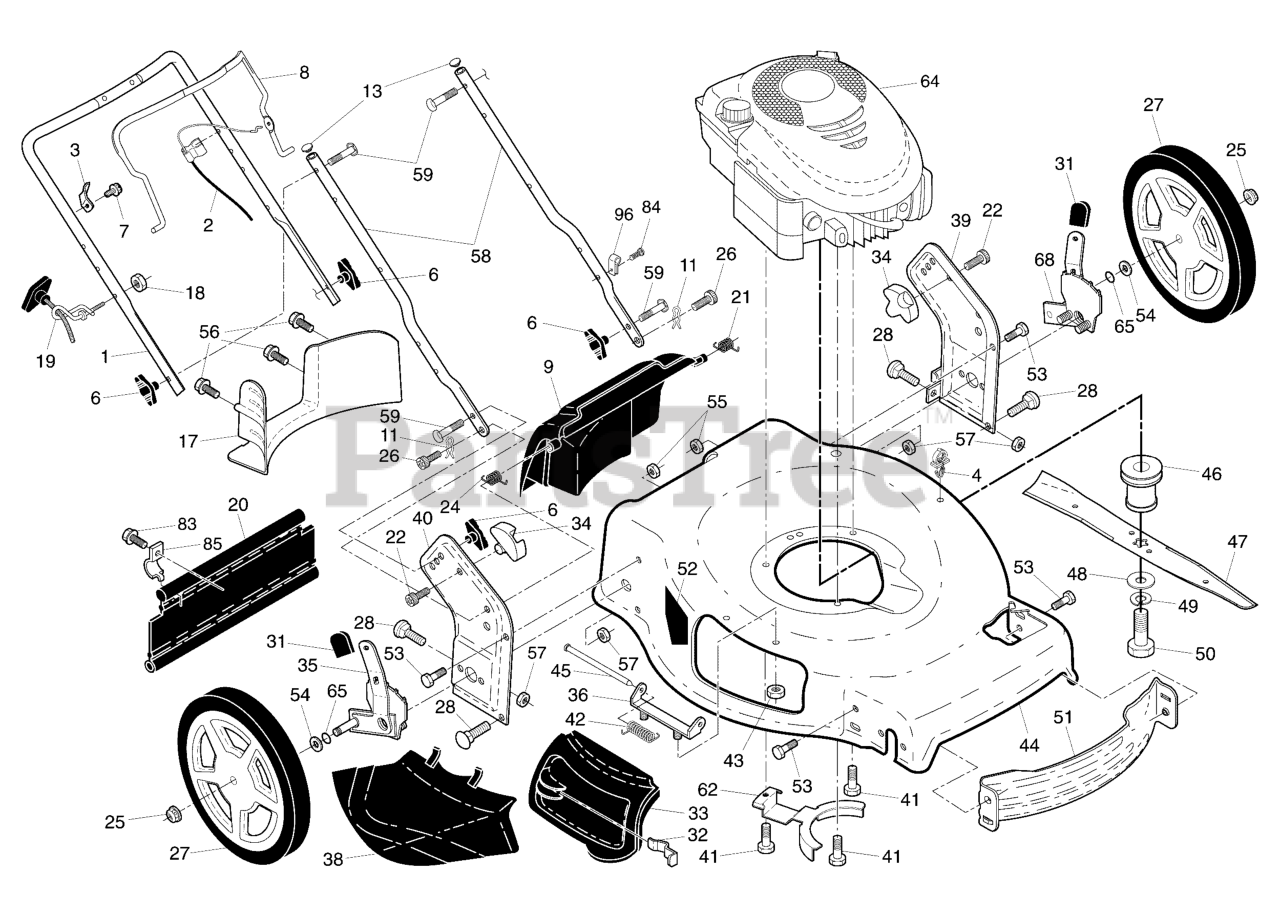

22S68H30 (961470020-00) - Murray 22" Walk-Behind Mower Deck Group Parts Diagram

22" Walk-Behind Mower

Deck Group Parts Diagram

  • Title

1

Murray 709357

Upper Handle

Note: ( Refer to Note: *** )

$78.99

$

Usually ships in 2-12 days

0

2

Murray 709344

Cable, Engine Zone Control

$

$

Not available

3

Murray 709368

Up-Stop Bracket
(Superseded to 707659)

$10.99

$

In Stock, only 2 left!

0

4

Murray 709085

CLIP, Push-In Hinged

$4.49

$

Usually ships in 2-12 days

0

6

Murray 709219

Knob, Handle

$7.99

$

Usually ships in 2-12 days

0

7

Murray 709195

SCREW, Hex Head, Threaded, Rolled, #10-16 x 5/8

$

$

Not available

8

Murray 709356

Control Bar

$33.99

$

Usually ships in 2-12 days

0

9

Murray 709353

Rear Door Assembly

$44.99

$

Usually ships in 2-12 days

0

11

Murray 709352

Hairpin, Door/Handle Pivot
(Superseded to 707772)

$9.99

$

Usually ships in 2-12 days

0

13

Murray 709379

Plug, Lower Handle Bar
(Superseded to 707666)

$6.99

$

Usually ships in 2-12 days

0

17

Murray 709355

Rear Baffle

$38.99

$

Usually ships in 2-12 days

0

18

Murray 709054

Nut, Hex, with Lockwasher Insert, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

19

Murray 709279

GUIDE, Rope

$37.99

$

Usually ships in 2-12 days

0

20

Murray 709366

Rear Skirt

$48.99

$

Usually ships in 2-12 days

0

21

Murray 709341

Spring, Rear Door, LH, Black

$7.49

$

Usually ships in 2-12 days

0

22

Murray 709080

Screw, Panhead, Torx #20

$6.49

$

Usually ships in 2-12 days

0

24

Murray 709340

Spring, Rear Door, RH, Grey
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

25

Murray 409149

Nut, Hex, Flangelock 3/8-16

Note: ( Refer to Note: ** )( This part is not serviced by Briggs & Stratton. )

$4.99

$

In Stock, Qty 20+

0

26

Murray 709338

Screw, Door/Handle Pivot
(Superseded to 707674)

$10.99

$

In Stock, only 1 left!

0

27

Murray 709394

Wheel & Tire Assembly, Rear

$72.99

$

Usually ships in 2-12 days

0

28

Murray 705344

Bolt Rdhd Sqnk 5/16-18 x 5/8

$7.99

$

In Stock, Qty 5

0

31

Murray 709411

Selector Knob

$7.49

$

In Stock, only 4 left!

0

32

Murray 709337

Latch, Mulcher Door

$10.99

$

Usually ships in 2-12 days

0

33

Murray 709375

Mulcher Door

$25.99

$

Usually ships in 2-12 days

0

34

Murray 709339

Pivot Bracket
(Superseded to 707678)

$4.99

$

Usually ships in 2-12 days

0

35

Murray 709372

Kit, Wheel Adjuster, Rear, RH

$27.99

$

Usually ships in 2-12 days

0

36

Murray 709183

Hinge Bracket Assembly

$13.99

$

Usually ships in 2-12 days

0

38

Murray 709336

Discharge Deflector

$40.99

$

In Stock, only 3 left!

0

39

Murray 709397

Handle Bracket, LH

$53.99

$

Usually ships in 2-12 days

0

40

Murray 709396

Handle Bracket, RH

$46.99

$

Usually ships in 2-12 days

0

41

Murray 709093

Screw, Hex Head, Threaded, Rolled, 3/8-16 x 1-1/5
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

42

Murray 709257

Spring, Torsion

$11.99

$

Usually ships in 2-12 days

0

43

Murray 709237

Nut, Hex, Flanged 1/4-20

$6.99

$

Usually ships in 2-12 days

0

44

Murray 709401

Kit, Lawn Mower Housing

$338.99

$

Usually ships in 2-12 days

0

45

Murray 709178

Rod, Hinge

$12.99

$

Usually ships in 2-12 days

0

46

Murray 709398

Blade Adapter / Pulley

$28.99

$

Usually ships in 2-12 days

0

47

Murray 709343

Blade, 22"

$39.99

$

In Stock, only 2 left!

0

48

Murray 709448

WASHER, Hardened

$9.99

$

In Stock, only 3 left!

0

49

Murray 705316

Washer, Lock Hvy Hlcl Spr 3/8

$5.99

$

In Stock, only 1 left!

0

50

Murray 709449

Screw, Machine, Hex Head, 3/8-24 x 1-3/8, Grade 8

$9.99

$

In Stock, Qty 6

0

51

Murray 709371

Front Baffle
(Superseded to 707687)

$42.99

$

Usually ships in 2-12 days

0

52

Murray 709203

Decal Deflect WRN. Cutfinger

$9.49

$

Usually ships in 2-12 days

0

53

Murray 709147

Screw, Hex Head 5/16-18
(Superseded to 705320)

$10.99

$

In Stock, only 1 left!

0

54

Murray 709452

WASHER, Flat, 3/8

$6.99

$

Usually ships in 2-12 days

0

55

Murray 709237

Nut, Hex, Flanged 1/4-20

$6.99

$

Usually ships in 2-12 days

0

56

Murray 709159

Screw, Hex Washer Head, #13 x 3/4

$8.49

$

Usually ships in 2-12 days

0

57

Murray 709105

Nut, Hex 3/8-16

$6.99

$

In Stock, only 1 left!

0

58

Murray 709380

Bar, Handle, Lower

$31.99

$

Usually ships in 2-12 days

0

59

Murray 709234

Bolt, Carriage 1/4-20 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

62

Murray 709374

Belt Retainer

$6.49

$

Usually ships in 2-12 days

0

64

Murray 126T02-7932-H1

* Engine, Briggs & Stratton

Note: ( Refer to Note: * )( Engine Model: 126T02-7932-H1 )

$

$

Currently unavailable

64

Murray 103M05-0035-H1

ENGINE, Briggs & Stratton

Note: ( Refer to Note: * )( Engine Model: 103M05-0035-H1 )

$

$

Currently unavailable

65

Murray 709288

O-Ring

$7.49

$

Usually ships in 2-12 days

0

68

Murray 709373

Kit, Wheel Adjuster, Rear,LH

$44.99

$

Usually ships in 2-12 days

0

83

Murray 709444

SCREW, Tapping, Hex Washer Head #10-24

$5.49

$

In Stock, Qty 20+

0

84

Murray 709358

Fastener, Push

$4.49

$

Usually ships in 2-12 days

0

85

Murray 709367

Mounting Bracket, Skirt
(Superseded to 707695)

$9.99

$

In Stock, only 1 left!

0

96

Murray 709289

Clip, Cable

$7.49

$

Usually ships in 2-12 days

0

--

Murray 709267

Operator's Manual, English

$13.99

$

Usually ships in 2-12 days

0

--

Murray 193736

Operator's Manual, French

$

$

Not available

--

Murray 193743

Operator's Manual, Spanish

$2.99

$

Usually ships in 3-10 days

0

--

Murray 709018

Operator's Manual, Portuguese

$4.99

$

Usually ships in 2-12 days

0

--

Murray 709404

Repair Parts Manual, English

$4.99

$

Usually ships in 2-12 days

0
