22S68H30 (961470020-00) - Murray 22" Walk-Behind Mower Drive Group Parts Diagram

22" Walk-Behind Mower

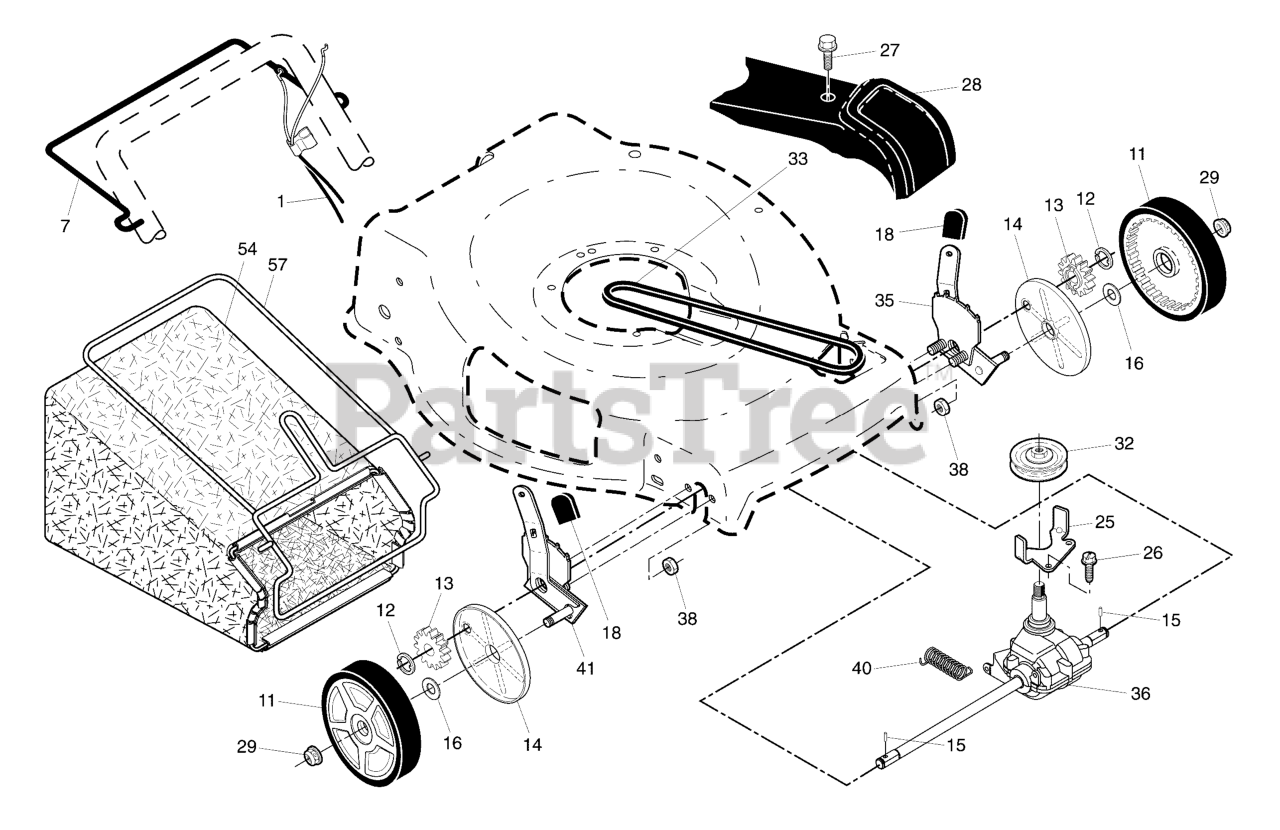

Drive Group Parts Diagram

  • Title

1

Murray 709350

Cable, Drive Control
(Superseded to 709839)

$58.99

$

Usually ships in 2-12 days

0

7

Murray 709274

Control Bar, Drive

$

$

Not available

11

Murray 709393

Wheel & Tire Assembly, Front

$51.99

$

Usually ships in 2-12 days

0

12

Murray 709024

E-Ring
(Superseded to 709760)

$6.49

$

Usually ships in 2-12 days

0

13

Murray 709309

Pinion

$11.99

$

Usually ships in 2-12 days

0

14

Murray 709403

Dust Cover
(Superseded to 707715)

$14.99

$

Usually ships in 2-12 days

0

15

Murray 709310

Pawl, Drive

$6.49

$

Usually ships in 2-12 days

0

16

Murray 709410

Washer, Flat 3/8

$7.99

$

Usually ships in 2-12 days

0

18

Murray 709411

Selector Knob

$7.49

$

In Stock, only 2 left!

0

25

Murray 709370

Belt Keeper

$5.49

$

Usually ships in 2-12 days

0

26

Murray 709115

Screw, Hi-Lo Thread #12 x 5/8
(Superseded to 707720)

$6.49

$

Usually ships in 2-12 days

0

27

Murray 709172

Screw, Pan Head, Self-Tapping #10-24 x #10-24 x 2-3/4

$12.99

$

Usually ships in 2-12 days

0

28

Murray 709335

Drive Cover

$27.99

$

Usually ships in 2-12 days

0

29

Murray 709321

Locknut, Hex

$9.99

$

In Stock, only 1 left!

0

32

Murray 709383

Drive Pulley

$23.99

$

In Stock, only 1 left!

0

33

Murray 709285

V-Belt

$35.99

$

Usually ships in 2-12 days

0

35

Murray 709400

Wheel Adjuster, Front, LH
(Superseded to 709812)

Note: (Includes Bearing)

$33.99

$

Usually ships in 2-12 days

0

36

Murray 709349

Gear Case Assembly, Complete
(Superseded to 709838)

$141.99

$

Usually ships in 2-12 days

0

38

Murray 709237

Locknut, Hex 1/4-20

$6.99

$

Usually ships in 2-12 days

0

40

Murray 709314

Spring

$6.99

$

Usually ships in 2-12 days

0

41

Murray 709399

Wheel Adjuster, Front, RH
(Superseded to 709844)

Note: (Includes Bearing)

$54.99

$

Usually ships in 2-12 days

0

54

Murray 709392

Grassbag

$64.99

$

Usually ships in 2-12 days

0

57

Murray 709342

Frame, Grassbag

$163.99

$

Usually ships in 2-12 days

0
