23-08BX01 (A-81) - Toro Rear-Engine Riding Mower (1983) 32 IN./81 CM SPINDLES-8 & 11 HP RIDERS (23-08BP02, 23-11BP02) Parts Diagram

Rear-Engine Riding Mower

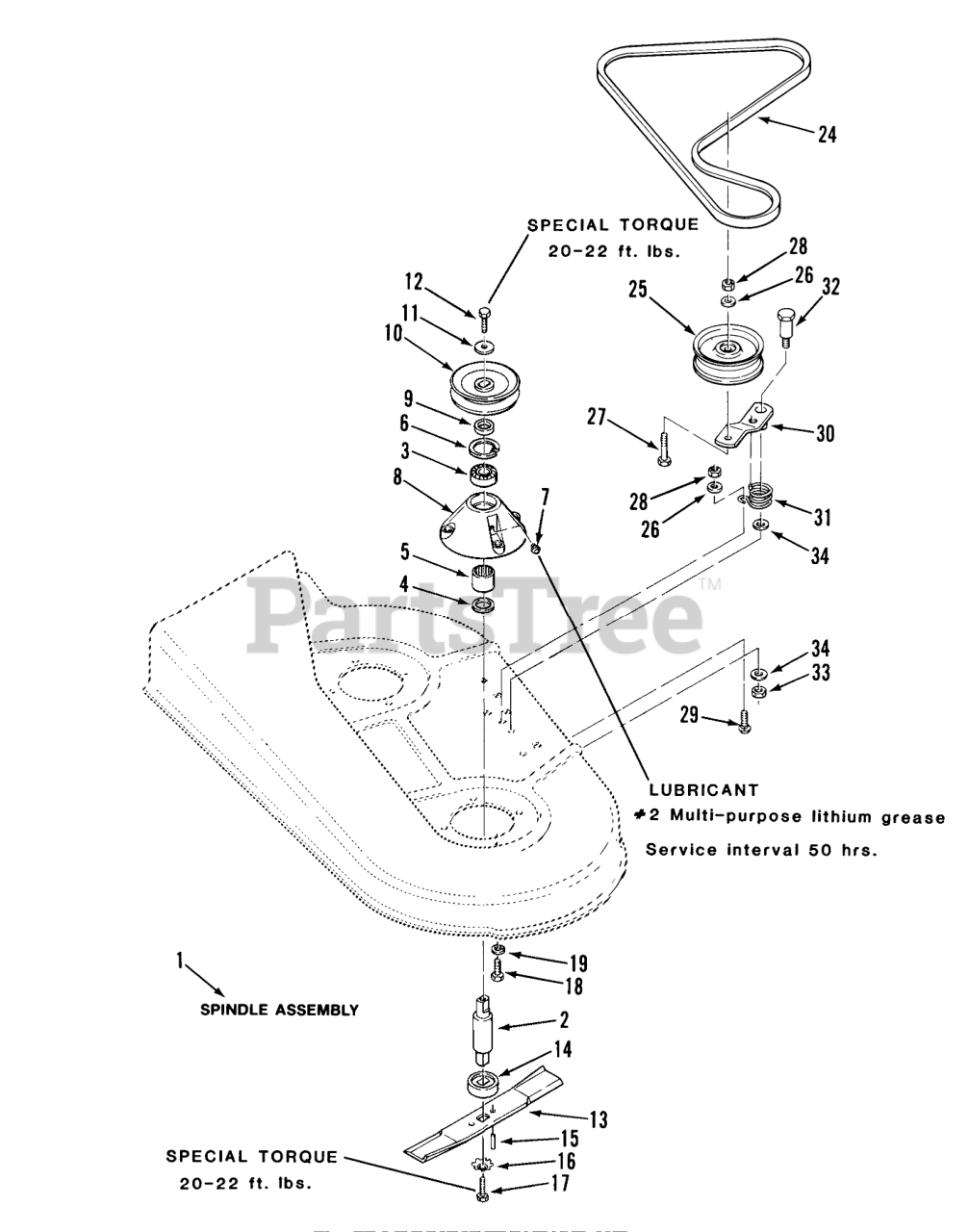

32 IN./81 CM SPINDLES-8 & 11 HP RIDERS (23-08BP02, 23-11BP02) Parts Diagram

  • Title

1

Toro 107275

Spindle Assembly (Includes Items 2 Thru 8)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

2

Toro 103691

SPINDLE MOWER

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

3

Toro 101480

BEARING-BALL

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$55.99

$

In Stock, only 4 left!

0

4

Toro 100863

OIL SEAL

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$19.99

$

In Stock, only 2 left!

0

5

Toro 1528

BEARING-NEEDLE

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$65.99

$

Usually ships in 3-6 days

0

6

Toro 936029

INT SNAP RING

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

7

Toro 3796

Fitting-Grease
(Superseded to 302-16)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

8

Toro 8242

HOUSING

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$927.99

$

Usually ships in 3-6 days

0

9

Toro 8244

SPACER

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

10

Toro 107643

PULLEY-BLADE

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

10

Toro 109796

PULLEY BLADE

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

11

Toro 2844

WASHER

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$3.49

$

In Stock, Qty 14

0

12

Toro 908032

Bolt
(Superseded to 323-4)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$4.49

$

In Stock, Qty 14

0

13

Toro 108040

S/A BLADE KIT

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$197.99

$

Usually ships in 3-6 days

0

14

Toro 8248

Spindle Cup

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

15

Toro 933211

SPIROL ROLL PIN

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$2.49

$

Usually ships in 3-6 days

0

16

Toro 1336

WASHER

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

17

Toro 908032

Bolt
(Superseded to 323-4)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$4.49

$

In Stock, Qty 14

0

18

Toro 908033

Bolt
(Superseded to 110242)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$2.49

$

In Stock, Qty 5

0

19

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$0.99

$

In Stock, Qty 8

0

24

Toro 108491

V-BELT

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

25

Toro 109450

PULLEY-IDLER
(Superseded to 94-4935)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$138.99

$

Usually ships in 3-6 days

0

26

Toro 920009

Washer
(Superseded to 3256-24)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$0.99

$

In Stock, Qty 20+

0

27

Toro 908037

Bolt
(Superseded to 323-9)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$1.49

$

In Stock, Qty 20+

0

28

Toro 915113

Nut
(Superseded to 32153-2)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

29

Toro 900063

Bolt
(Superseded to 323-12)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$2.99

$

In Stock, Qty 7

0

30

Toro 108782

Idler Arm

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

31

Toro 108177

SPRING-TORSION

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$20.99

$

Usually ships in 3-6 days

0

32

Toro 108176

BOLT-SHOULDER

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available

33

Toro 109996

NUT-JAM(7/16-14)

Note: A-81 VIN 03-08BP03-DO NOT USE THIS PARTS LIST FOR MOWER. Mower has its own VIN. Use order form in mower operator-s manual to obtain parts list.

$

$

Not available
