23-3790 - Toro 110 Volt AC Electric Start Kit Starter Assembly Parts Diagram

110 Volt AC Electric Start Kit

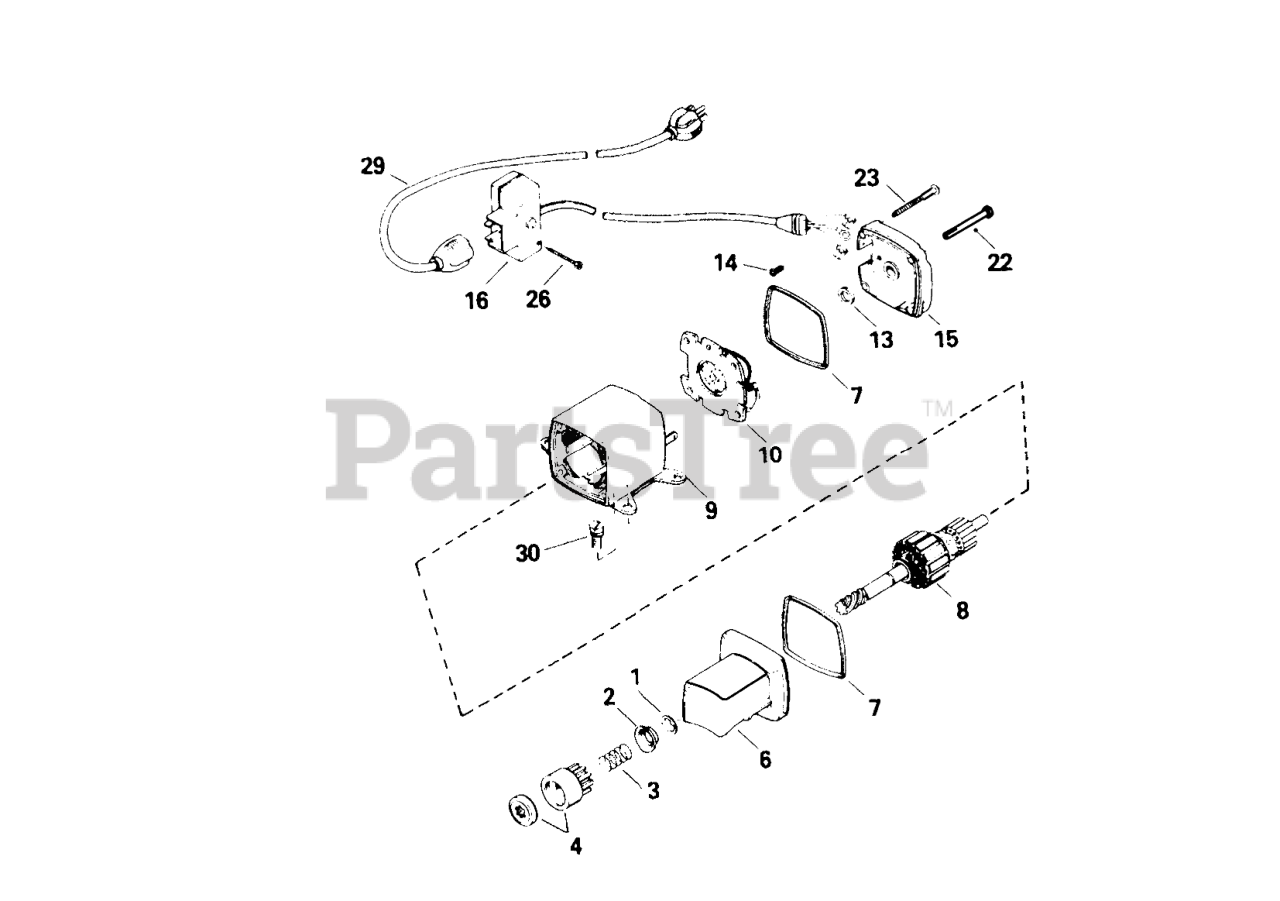

Starter Assembly Parts Diagram

  • Title

1

Toro 31749

Retainer-Ring

$

$

Currently unavailable

2

Toro 33522

Retainer-Spring

$

$

Currently unavailable

3

Toro 33769

Spring-Anti Drift

$

$

Currently unavailable

4

Toro 33524

Nut Gear

$

$

Currently unavailable

6

Toro 35461

Cap Assembly (Incl. Ref. #7)

$

$

Currently unavailable

7

Toro 35450

O-Ring

$

$

Currently unavailable

8

Toro 35460

Armature
(Superseded to 704757)

$

$

Not available

9

Toro 35459

Housing Assembly
(Superseded to 704756)

$

$

Not available

10

Toro 35452

Card ASM
(Superseded to 704754)

$

$

Not available

13

Toro 590500

Washer-Thrust

$

$

Currently unavailable

14

Toro 33441

Screw-Ground

$

$

Currently unavailable

15

Toro 35453

Cap Assembly (Incl. Ref. #7)

$

$

Currently unavailable

16

Toro 35454

Box Assembly-Switch (Incl. Ref. #26)

$

$

Not available

22

Toro 35462

Bolt-Case

$

$

Currently unavailable

23

Toro 35456

Screw-Ground

$

$

Currently unavailable

26

Toro 650819

Screw

$

$

Currently unavailable

29

Toro 32450A

Cord-Extension

$

$

Currently unavailable

30

Toro 650759

Screw (T-30, 1/4-20 x 23/32)

$

$

Currently unavailable

Toro 33290D

Motor-Electric Starter

Note: Not illustrated

$

$

Currently unavailable
