23 COMPACT (530083963) - Husqvarna Chainsaw (1997-07) Crankcase Assembly Parts Diagram

Chainsaw

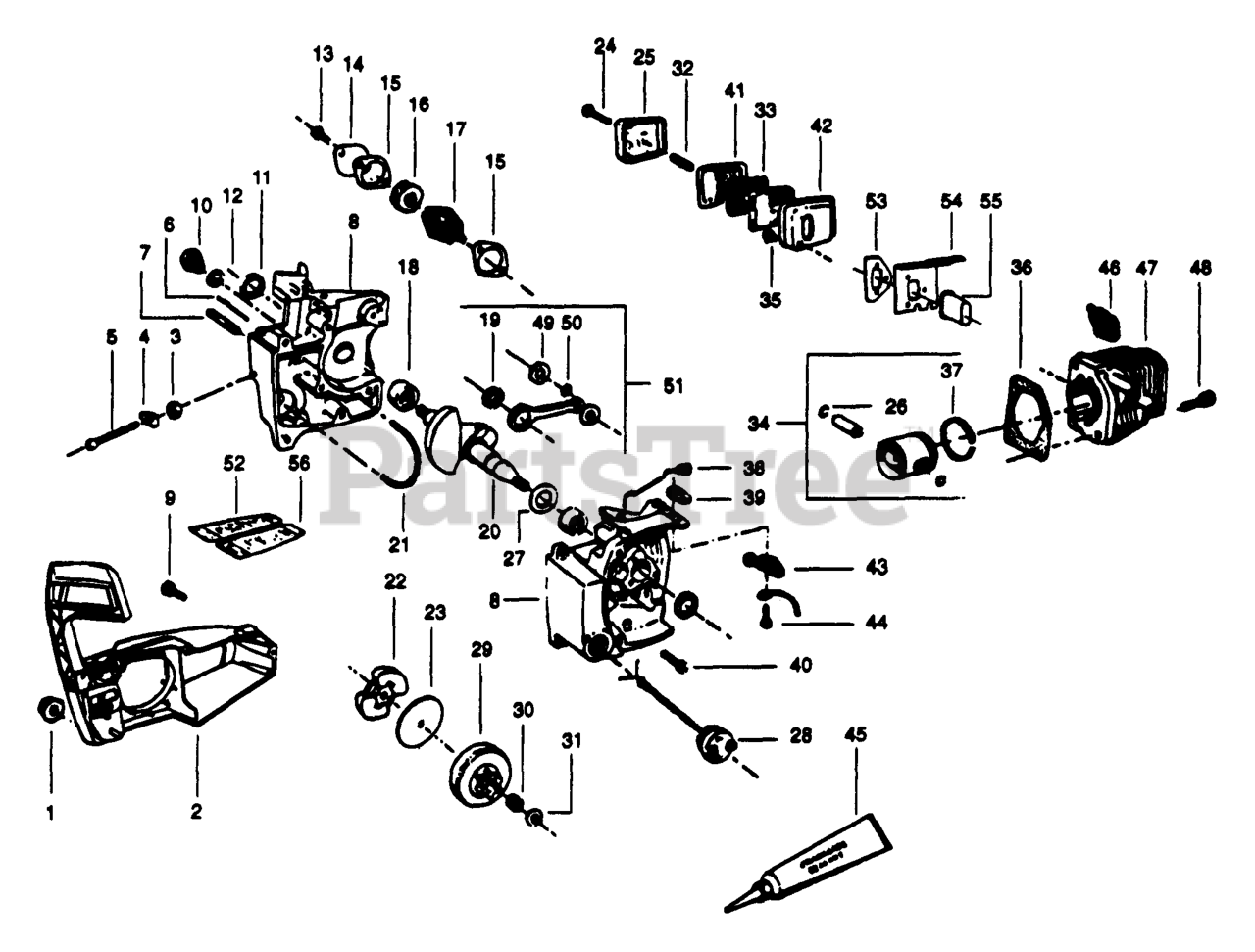

Crankcase Assembly Parts Diagram

  • Title

1

Husqvarna 530015445

BAR NUT
(Superseded to 530015251)

Note: New part number for this IPL

$

$

Not available

2

Husqvarna 530069557

CHAINBRAKE ASSY
(Superseded to 952069320)

Note: (Incl. 1)

$

$

Not available

3

Husqvarna 530015135

LOCK NUT

$1.99

$

In Stock, Qty 6

0

4

Husqvarna 530023492

BAR ADJUST PIN

$

$

Not available

5

Husqvarna 530016115

SCREW.

$

$

Not available

6

Husqvarna 530036450

OIL TANK VENT PIN

$

$

Not available

7

Husqvarna 530015719

BAR MOUNTING STUD

$

$

Not available

8

Husqvarna 530014742

Crankcase Ass'y

Note: (Incl. 3-7, 10-12, 18, 28 & 40)

$

$

Not available

9

Husqvarna 530015623

SCREW

$

$

Not available

10

Husqvarna 530069142

CHECK VALVE KIT

Note: (Incl. 12)

$

$

Not available

11

Husqvarna 530019059

SEAL-CRANKCASE

$

$

Not available

12

Husqvarna 530019089

CHECK VALVE GASKET

$

$

Not available

13

Husqvarna 530015476

SCREW

$

$

Not available

14

Husqvarna 530023802

METERING BODY COVER

$

$

Not available

15

Husqvarna 530019091

METERING BODY GASKET

$

$

Not available

16

Husqvarna 530023801

OIL FILTER

$

$

Not available

17

Husqvarna 530010195

Metering Body Ass'y.

$

$

Not available

18

Husqvarna 530032029

BEARING

$

$

Not available

19

Husqvarna 530032065

ROLLER BEARING (12 BRGS)

Note: (Incl. 12 bearings)

$

$

Not available

20

Husqvarna 530022172

CRANKSHAFT

$

$

Not available

21

Husqvarna 530021026

OIL DISCHARGE LINE
(Superseded to 530069216)

$13.99

$

In Stock, Qty 20+

0

22

Husqvarna 530069193

Clutch Ass'y. Kit

$

$

Not available

23

Husqvarna 530069197

CLUTCH WASHER KIT

$

$

Not available

24

Husqvarna 530015169

SCREW

$6.99

$

In Stock, only 4 left!

0

25

Husqvarna 530023795

MUFFLER COVER

$

$

Not available

26

Husqvarna 530023843

PISTON PIN RETAINER

$

$

Not available

27

Husqvarna 530023887

THRUST WASHER

$

$

Not available

28

Husqvarna 530010444

OIL CAP ASSEMBLY

$

$

Not available

29

Husqvarna 530069166

CLUTCH DRUM

$26.99

$

In Stock, only 3 left!

0

30

Husqvarna 530032079

CLUTCH BEARING

$

$

Not available

31

Husqvarna 530023519

CLUTCH SPACER

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 530023535

SPACER

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530023796

SPARK ARRESTOR SCREEN

$

$

Not available

34

Husqvarna 530069552

PISTON KIT

Note: (Incl. 26, 36, & Pin)

$

$

Not available

35

Husqvarna 530001666

SCREW

$

$

Not available

36

Husqvarna 530019237

CYLINDER GASKET
(Superseded to 530069401)

$

$

Not available

37

Husqvarna 530037603

PISTON RING

$

$

Not available

38

Husqvarna 530023788

SWITCH KNOB ASSY

$

$

Not available

39

Husqvarna 530023786

RAMP SWITCH

$

$

Not available

40

Husqvarna 530015986

SCREW

$

$

Not available

41

Husqvarna 530023797

MUFFLER BAFFLE

$

$

Not available

42

Husqvarna 530038325

MUFFLER BODY

$

$

Not available

43

Husqvarna 530023787

SWITCH CLAMP

$

$

Not available

44

Husqvarna 530015235

Screw

$

$

Not available

45

Husqvarna 530030054

RTV 3.35 OZ #598B

$

$

Not available

46

Husqvarna 952030150

Spark Plug
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 530012172

Cylinder

$

$

Not available

48

Husqvarna 530015239

SCREW-1/4-20 X 13/16

$

$

Not available

49

Husqvarna 530015486

WASHER

$

$

Not available

50

Husqvarna 530032075

BEARING ROD (1 PACK OF 24)

$

$

Not available

51

Husqvarna 530010474

CONNECTING ROD ASSY

Note: (Incl. 19, 49 & 50)

$

$

Not available

52

Husqvarna 530037759

Instruction Decal Right Hand

$

$

Not available

53

Husqvarna 530019211

GASKET, MUFFLER

$

$

Not available

54

Husqvarna 530038643

BACK PLATE, MUFFLER

$

$

Not available

55

Husqvarna 530037652

HEAT INSULATOR

$

$

Not available

56

Husqvarna 530047954

Instruction Decal Left Hand

$

$

Not available

Husqvarna 530083873

Operator Manual

Note: Not Shown

$

$

Not available

Husqvarna 530031063

BAR WRENCH
(Superseded to 501691701)

Note: Not Shown

$

$

Not available
