23 COMPACT (530083963) - Husqvarna Chainsaw (1997-07) Flywheel Assembly Parts Diagram

Chainsaw

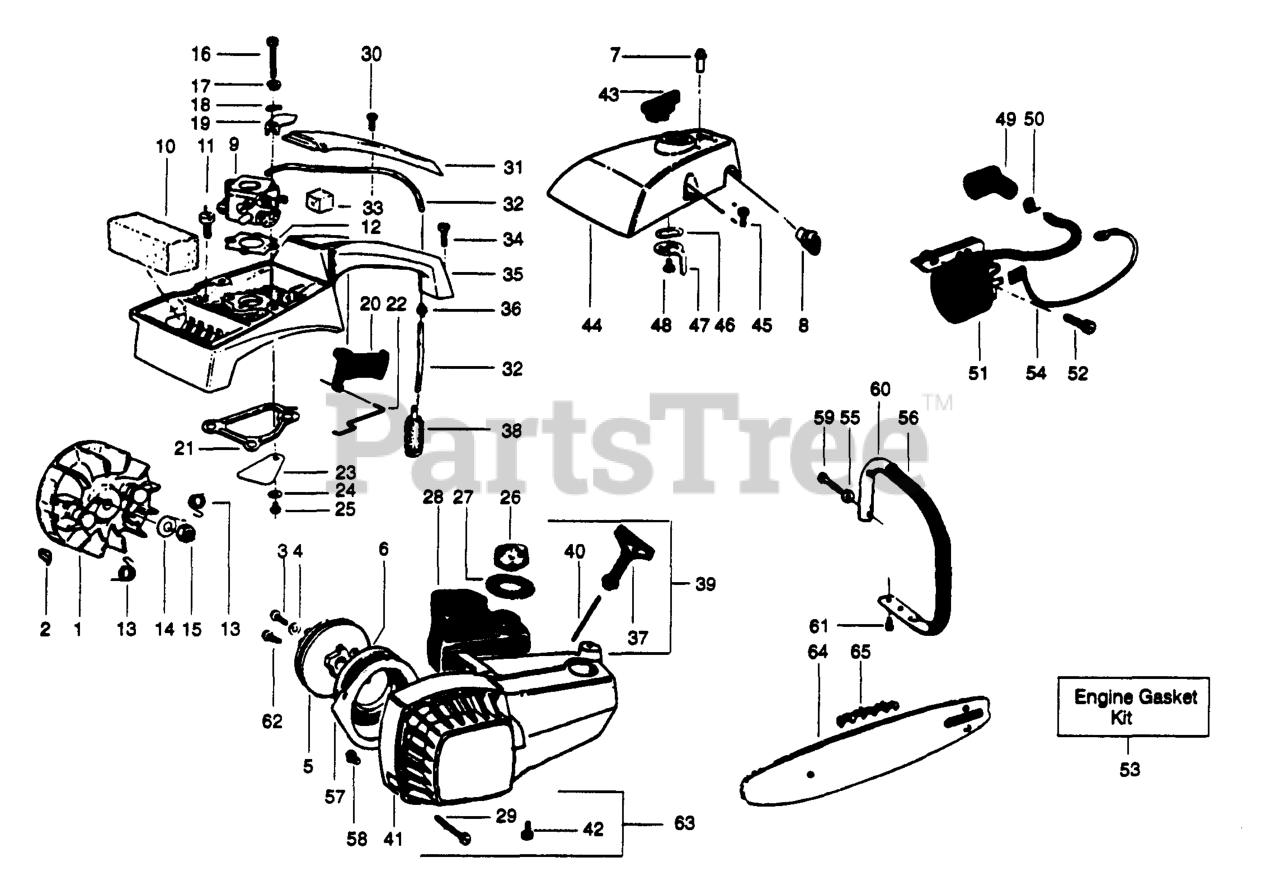

Flywheel Assembly Parts Diagram

  • Title

1

Husqvarna 530047198

FLYWHEEL ASSEMBLY

$

$

Not available

2

Husqvarna 530015126

KEY-FLYWHEEL

$

$

Not available

3

Husqvarna 530015036

SCREW
(Superseded to 530016141)

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530015123

WASHER

$4.99

$

In Stock, only 3 left!

0

5

Husqvarna 530069288

KIT-STARTER PULLEY

$

$

Not available

6

Husqvarna 530042023

SPRING-STARTER
(Superseded to 545008007)

$

$

Not available

7

Husqvarna 530038646

GROMMET, IDLE

$

$

Not available

8

Husqvarna 530038571

GROMMET, MIXTURE

$

$

Not available

9

Husqvarna 530069772

CARBURETOR W/ LIMITER CAPS

$

$

Not available

10

Husqvarna 530023791

AIR FILTER

$

$

Not available

11

Husqvarna 530015242

SCREW

$

$

Not available

12

Husqvarna 530019045

CARBURETOR GASKET

$

$

Not available

13

Husqvarna 530023817

SPRING STR DOG

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 530015127

WASHER-FLYWHEEL

$3.49

$

In Stock, Qty 10

0

15

Husqvarna 530626605

NUT

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530015245

SCREW

$

$

Not available

17

Husqvarna 530023865

SPACER

$

$

Not available

18

Husqvarna 530015254

WASHER

$

$

Not available

19

Husqvarna 530023805

CHOKE SHUTTER

$

$

Not available

20

Husqvarna 530029826

THROTTLE TRIGGER

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 530019118

GASKET
(Superseded to 530019252)

Note: New part number for this IPL

$

$

Not available

22

Husqvarna 530026606

THROTTLE WIRE

$

$

Not available

23

Husqvarna 530036331

REED VALVE

$

$

Not available

24

Husqvarna 530036332

WASHER

$

$

Not available

25

Husqvarna 530016064

SCREW
(Superseded to 545227101)

$3.49

$

In Stock, Qty 14

0

26

Husqvarna 530014347

CAP ASSY W/ RETAINER

$9.49

$

In Stock, Qty 10

0

27

Husqvarna 530019093

SEAL

$

$

Not available

28

Husqvarna 530010775

Fuel Tank Ass'y.

Note: (Incl 26, 27 & 38)

$

$

Not available

29

Husqvarna 530015649

SCREW
(Superseded to 530015707)

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 530015247

SCREW

$

$

Not available

31

Husqvarna 530037765

HANDLE COVER
(Superseded to 530024967)

$

$

Not available

32

Husqvarna 530069216

KIT.LINE TANK/PURGE

$13.99

$

In Stock, Qty 20+

0

33

Husqvarna 530023373

SEALING

$

$

Not available

34

Husqvarna 530015239

SCREW-1/4-20 X 13/16

$

$

Not available

35

Husqvarna 530038328

HANDLE & CARB HOUSING
(Superseded to 530037774)

$

$

Not available

36

Husqvarna 530023877

FUEL LINE FITTING

$5.99

$

In Stock, Qty 20+

0

37

Husqvarna 530027569

HANDLE-STARTER

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 530014362

FUEL PICK UP ASSY
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

39

Husqvarna 530026791

ASS'Y ROPE & HANDLE

$

$

Not available

40

Husqvarna 530069232

KIT-ROPE

$5.99

$

In Stock, only 3 left!

0

41

Husqvarna 530069602

FAN HOUSING KIT

$

$

Not available

42

Husqvarna 530015650

SCREW-PINCH CLAMP-TYPE 2

$

$

Not available

43

Husqvarna 530023807

CHOKE KNOB

$2.49

$

Usually ships in 3-10 days

0

44

Husqvarna 530038613

CARB COVER
(Superseded to 530071304)

Note: New part number for this IPL

$

$

Not available

45

Husqvarna 530015168

SCREW-10-24 X 5/8 FILL

$

$

Not available

46

Husqvarna 530015147

WAVE WASHER

$7.99

$

Usually ships in 3-10 days

0

47

Husqvarna 530023806

CHOKE LEVER

$

$

Not available

48

Husqvarna 530015407

SCREW-8-16 (PLASTITE)

$

$

Not available

49

Husqvarna 507475326

SPARK PLUG BOOT

$

$

Not available

50

Husqvarna 530003933

CONNECTOR
(Superseded to 507475326)

$

$

Not available

51

Husqvarna 530069202

IGNITION MODULE

$

$

Not available

52

Husqvarna 530015816

SCREW 8-32 X 3/4

$

$

Not available

53

Husqvarna 530069401

GASKET KIT

Note: (Incl. from pg. 1: 11, 12, 15, 16, 36: from pg. 2: 12, 21, 27 & 33)

$

$

Not available

54

Husqvarna 530039116

SWITCH LEAD

$

$

Not available

55

Husqvarna 530015151

WASHER

$

$

Not available

56

Husqvarna 530027847

Grip-Handlebar

Note: New part number for this IPL

$

$

Not available

57

Husqvarna 530038312

BAFFLE

$

$

Not available

58

Husqvarna 530001726

SCREW

$

$

Not available

59

Husqvarna 530001648

SCREW

$

$

Not available

60

Husqvarna 530022352

HANDLEBAR

$

$

Not available

61

Husqvarna 530015037

SCREW

$

$

Not available

62

Husqvarna 530016080

SCREW

$3.49

$

In Stock, Qty 20+

0

63

Husqvarna 530069286

Fan Hsg. Screw Kit

Note: Incl. 29, 42 and 9 from page 1

$

$

Not available

64

Husqvarna 530044678

Guide Bar

Note: New part number for this IPL

$

$

Currently unavailable

65

Husqvarna 530051420

CHAIN
(Superseded to 585422152)

Note: New part number for this IPL

$38.99

$

Usually ships in 3-10 days

0
