23 COMPACT - Husqvarna Chainsaw (1993-01) Carburetor Assembly PN 530035181 Parts Diagram

Chainsaw

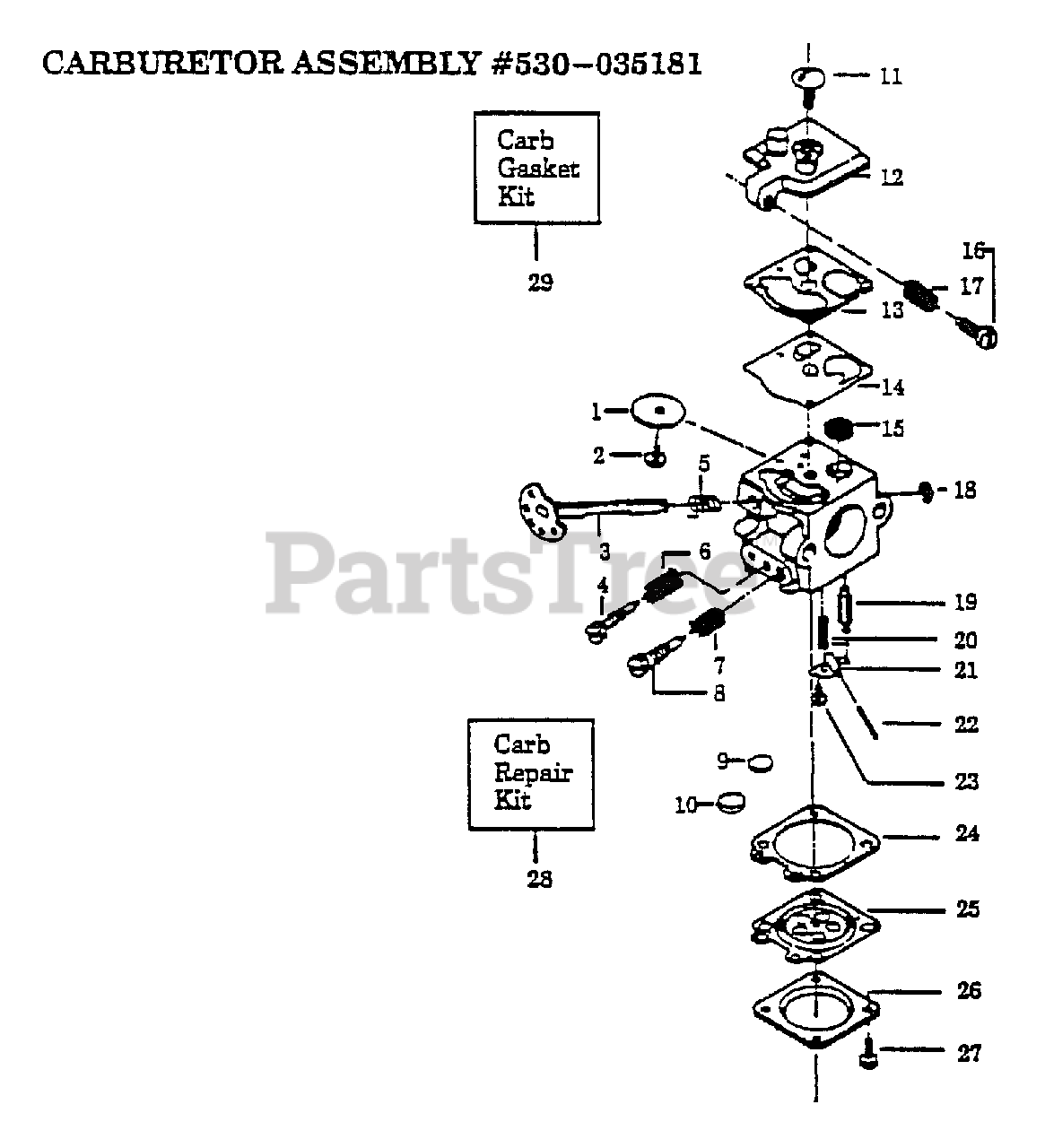

Carburetor Assembly PN 530035181 Parts Diagram

  • Title

1

Husqvarna 530035006

Throttle Valve

$

$

Not available

2

Husqvarna 530035015

Throttle Valve Screw

$

$

Not available

3

Husqvarna 530035034

Throttle Shaft Ass'y.

$

$

Not available

4

Husqvarna 530035171

Low Speed Mixture Needle

$

$

Not available

5

Husqvarna 530035024

Throttle Return Spring

$

$

Not available

6

Husqvarna 530035023

Low Speed Mixture Needle Spring

$0.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530035167

High Speed Mixture Needle Spring

$

$

Not available

8

Husqvarna 530035169

High Speed Mixture Needle

$

$

Not available

9

Husqvarna 530035162

Plug-5/16 Dia. Welch

Note: Indicates Carb. Repair Kit Contents

$

$

Not available

10

Husqvarna 530035163

Plug-1/4 Dia. Welch

Note: Indicates Carb. Repair Kit Contents

$

$

Not available

11

Husqvarna 530035017

Pump Cover Screw

$0.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530035159

Fuel Pump Cover

$

$

Not available

13

Husqvarna 530035164

Fuel Pump Gasket
(Superseded to 504130906)

Note: Indicates Carb. Repair Kit Contents; Indicates Carb. Gasket/Diaphragm Contents

$4.99

$

In Stock, Qty 5

0

14

Husqvarna 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

Note: Indicates Carb. Repair Kit Contents; Indicates Carb. Gasket/Diaphragm Contents

$6.49

$

In Stock, Qty 11

0

15

Husqvarna 530035027

Fuel Inlet Screen

Note: Indicates Carb. Repair Kit Contents

$

$

Not available

16

Husqvarna 530035035

Idle Speed Adjusting Screw

$

$

Not available

17

Husqvarna 530035168

Idle Speed Adjusting Screw Spring

$

$

Not available

18

Husqvarna 530035007

Throttle Retainer Ring

$

$

Not available

19

Husqvarna 530035106

Inlet Needle Valve
(Superseded to 503117001)

$11.99

$

In Stock, Qty 11

0

20

Husqvarna 530035188

Metering Lever Spring

$4.99

$

In Stock, Qty 11

0

21

Husqvarna 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 530035028

Metering Lever Pin
(Superseded to 505520125)

$3.49

$

In Stock, only 3 left!

0

23

Husqvarna 530035016

Metering Lever Pin Screw

$3.49

$

In Stock, Qty 6

0

24

Husqvarna 530035165

Metering Diaphragm Gasket

Note: Indicates Carb. Repair Kit Contents; Indicates Carb. Gasket/Diaphragm Contents

$

$

Not available

25

Husqvarna 530035014

Metering Diaphragm
(Superseded to 503896701)

Note: Indicates Carb. Repair Kit Contents; Indicates Carb. Gasket/Diaphragm Contents

$8.99

$

In Stock, only 2 left!

0

26

Husqvarna 530035003

Metering Diaphragm Cover

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 530035021

Metering Cover Screw Ass'y

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530035161

Carb. Repair Kit

Note: (Includes parts 9,10,13-15,19-25)

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 530035173

Carb. Gasket/Diaphragm
(Superseded to 530069844)

Note: (Includes parts 13,14,24,25)

$18.99

$

Usually ships in 3-10 days

0

Husqvarna 530035181

Carburetor Assembly
(Superseded to 530069772)

$

$

Not available
