23 COMPACT - Husqvarna Chainsaw (1993-01) Chain Brake Assy PN 530069559 Parts Diagram

Chainsaw

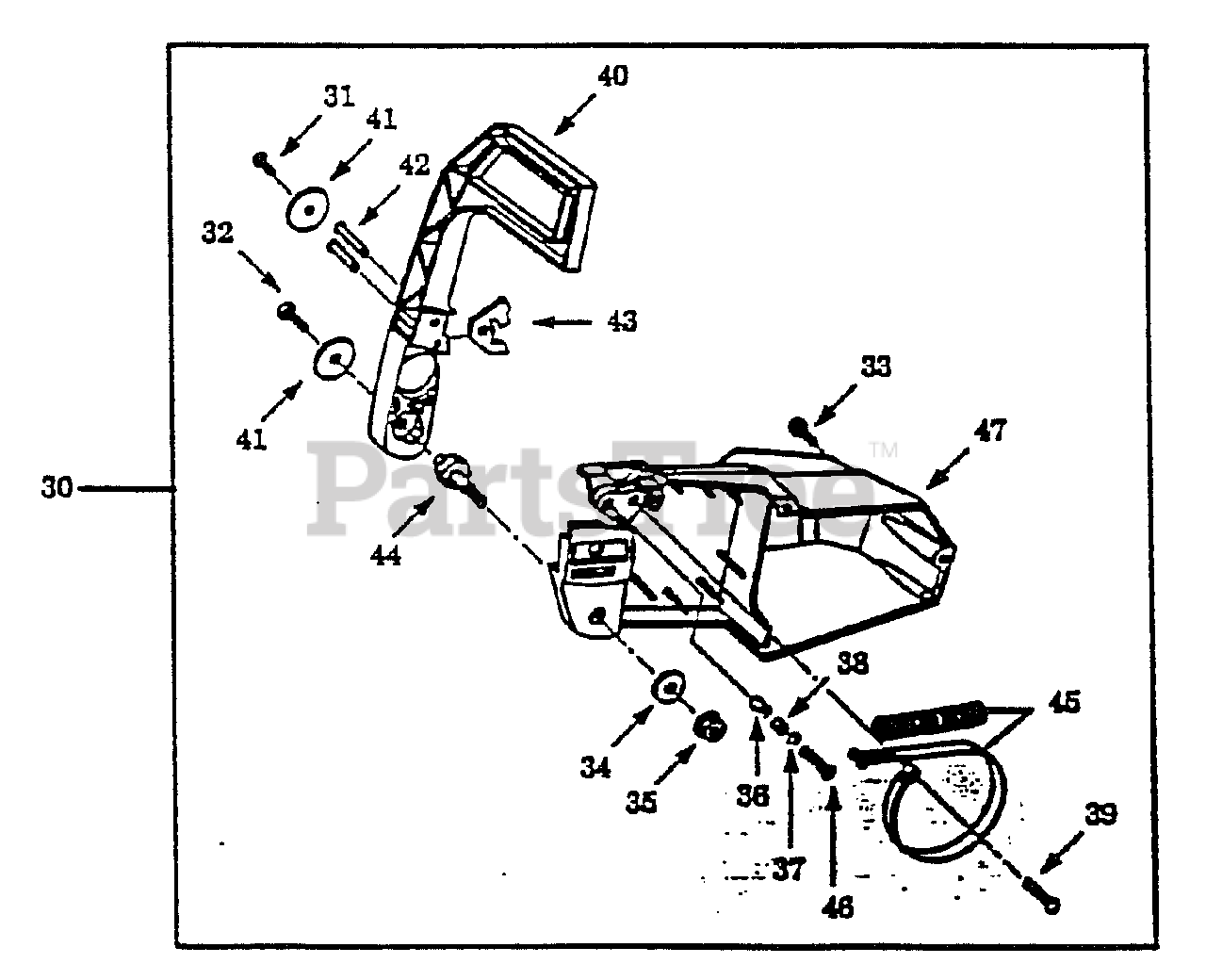

Chain Brake Assy PN 530069559 Parts Diagram

  • Title

30

Husqvarna 530069559

Chain Brake Ass'y

$

$

Not available

31

Husqvarna 530015407

Screw

$

$

Not available

32

Husqvarna 530016022

Screw

$

$

Not available

33

Husqvarna 530015823

Screw
(Superseded to 530016080)

$6.49

$

In Stock, Qty 11

0

34

Husqvarna 507433893

Washer

$

$

Not available

35

Husqvarna 530015445

Bar Mounting Nut
(Superseded to 530015251)

$

$

Not available

36

Husqvarna 530025881

Latch Roller

$

$

Not available

37

Husqvarna 530015543

Washer

$

$

Not available

38

Husqvarna 530025882

Sleeve

$

$

Not available

39

Husqvarna 507433841

Anchor Pin

$

$

Not available

40

Husqvarna 530037762

Lever
(Superseded to 952069320)

$

$

Not available

41

Husqvarna 507433844

Washer

$

$

Not available

42

Husqvarna 507433843

Handguard Pin

$

$

Not available

43

Husqvarna 530025366

Latch

$

$

Not available

44

Husqvarna 507433845

Handguard Pivot

$

$

Not available

45

Husqvarna 530024154

Brake Band

$

$

Not available

46

Husqvarna 507433842

Latch Pin

$

$

Not available

47

Husqvarna 530012333

Clutch Cover

$

$

Not available

Husqvarna 530069559

Chain Brake Ass'y

$

$

Not available
