230 ACX - Husqvarna Automower Robotic Lawn Mower (2007-05) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

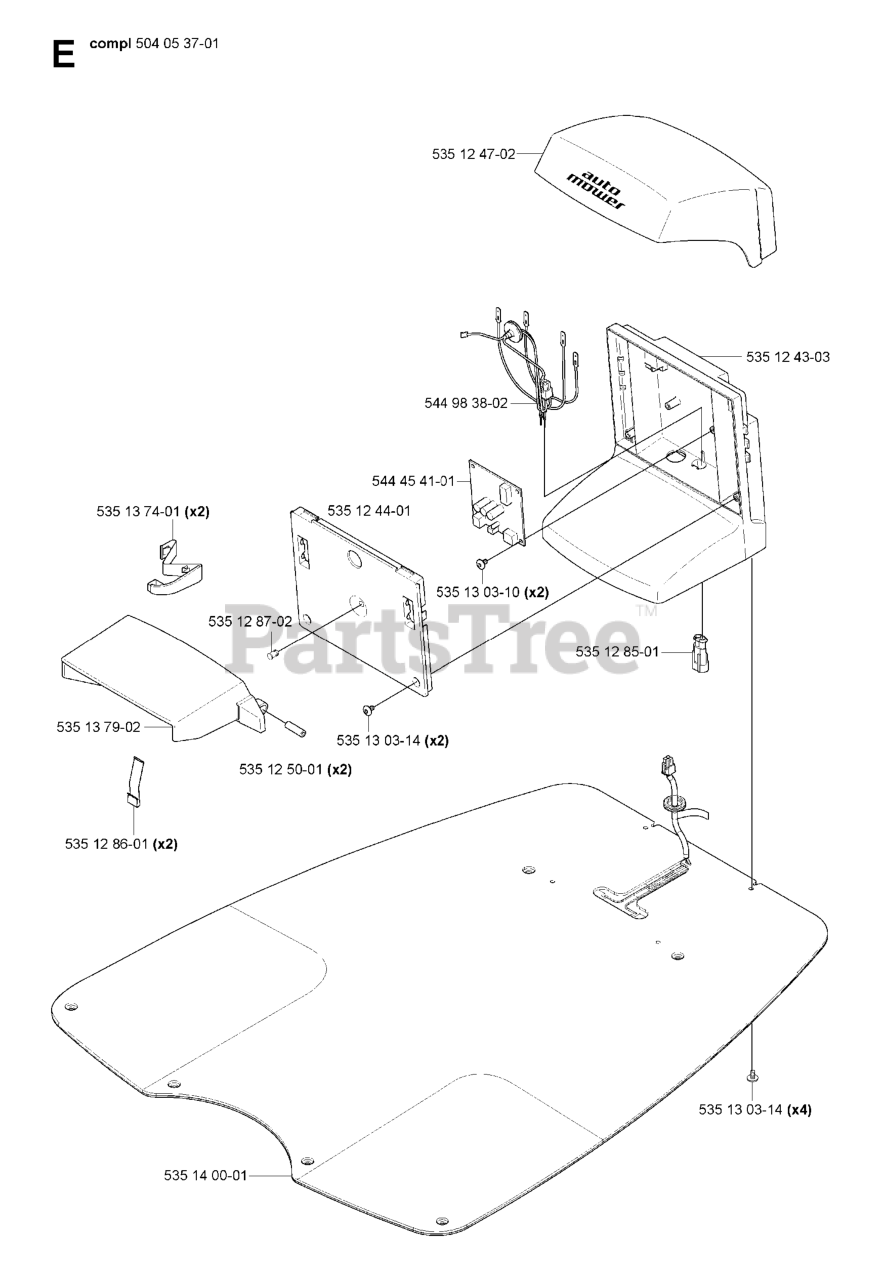

CHARGING STATION Parts Diagram

  • Title

535 12 47-02

Husqvarna 535124702

CS / TOWER COVER

$

$

Not available

535 13 79-02

Husqvarna 535137902

HOLDER
(Superseded to 510059702)

$

$

Not available

535 12 50-01

Husqvarna 535125001

PIN

$

$

Not available

535 12 87-02

Husqvarna 535128702

LENS
(Superseded to 590217201)

$7.99

$

Usually ships in 3-10 days

0

535 12 86-01

Husqvarna 535128601

SPRING

$

$

Not available

504 05 37-01

Husqvarna 504053701

CHARGING STATION
(Superseded to 574902002)

$511.99

$

Usually ships in 3-10 days

0

535 12 43-03

Husqvarna 535124303

BODY

$

$

Not available

544 45 41-01

Husqvarna 544454101

CIRCUIT BOARD CHRGNG STATION
(Superseded to 578788502)

$170.99

$

Usually ships in 3-10 days

0

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

535 14 00-01

Husqvarna 535140001

PLATE
(Superseded to 575708202)

$

$

Not available

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

535 12 44-01

Husqvarna 535124401

COVER

$

$

Not available

535 12 85-01

Husqvarna 535128501

SLEEVE

$

$

Not available

544 98 38-02

Husqvarna 544983802

WIRING ASSY

$

$

Not available

535 13 03-10

Husqvarna 535130310

SCREW

$3.49

$

In Stock, only 4 left!

0

535 13 74-01

Husqvarna 535137401

THIN PLATE
(Superseded to 510059702)

$

$

Not available
