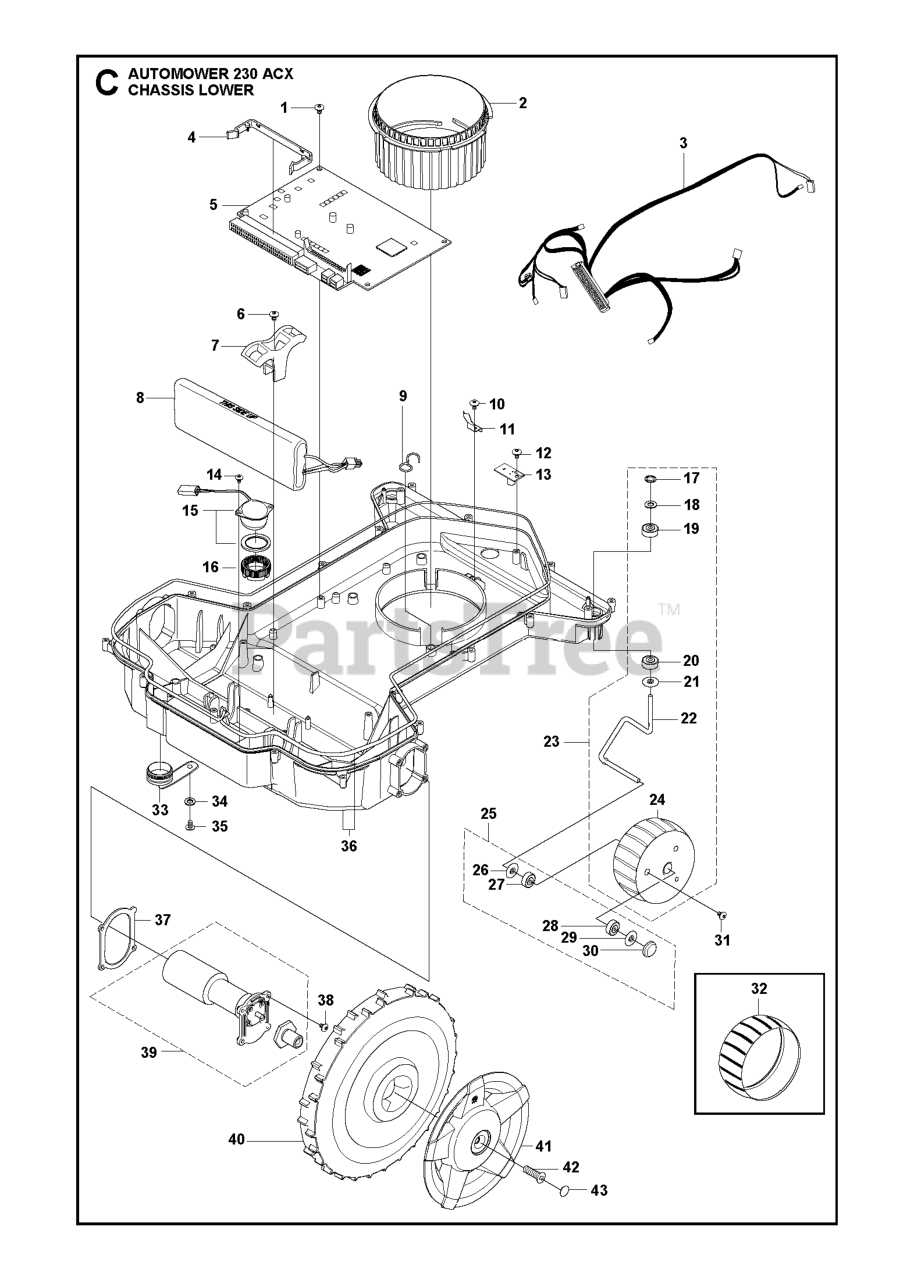

230 ACX - Husqvarna Automower Robotic Lawn Mower (2012-12) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

CHASSIS LOWER Parts Diagram

  • Title

24

Husqvarna 575231701

WHEEL, FRONT

$20.99

$

Usually ships in 3-10 days

0

39

Husqvarna 544907003

DRIVE MOTOR

Note: compl

$454.99

$

Usually ships in 3-10 days

0

19

Husqvarna 522505001

BALL BEARING

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 501004201

HORN

$

$

Not available

2

Husqvarna 535122102

CUTTING HEIGHT NUT

$

$

Not available

6

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

9

Husqvarna 535139601

HOLDER

$

$

Not available

4

Husqvarna 578056102

CLIP MAIN CONNECTOR 50PCS

$

$

Not available

41

Husqvarna 544905102

HUB CAP

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 578786101

$

$

Currently unavailable

7

Husqvarna 544907801

BRACKET

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 575543310

SCREW SILVER 10MM

$4.99

$

In Stock, Qty 9

0

11

Husqvarna 535122401

SPRING

$

$

Not available

43

Husqvarna 504200801

COVER WASHER

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 578788803

PRINTED CIRCUIT ASSY
(Superseded to 592852201)

$22.99

$

Usually ships in 3-10 days

0

36

Husqvarna 575943901

CHASSIS LOWER

$74.99

$

Usually ships in 3-10 days

0

17

Husqvarna 735584109

LOCK WASHER
(Superseded to 576019402)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 575543310

SCREW SILVER 10MM

$4.99

$

In Stock, Qty 9

0

40

Husqvarna 544905804

REAR WHEEL ASSY 230

$34.99

$

Usually ships in 3-10 days

0

38

Husqvarna 575543316

SCREW

$

$

Not available

26

Husqvarna 535087802

WASHER

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 734115209

WASHER 6.4X12X1.6 SS

$

$

Not available

37

Husqvarna 535139203

GASKET

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 502859601

SCREW

$

$

Not available

31

Husqvarna 575507601

SCREW ITXPANT PT 40 THREAD

$

$

Not available

25

Husqvarna 523343701

BEARING KIT 6MM AXLE

Note: compl

$

$

Not available

8

Husqvarna 535120901

BATTERY
(Superseded to 535120902)

$283.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501003703

MAIN WIRING

$125.99

$

Usually ships in 3-10 days

0

19

Husqvarna 593081101

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

35

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

32

Husqvarna 574449801

WHEEL RUBBER TYRE

$9.49

$

In Stock, only 2 left!

0

21

Husqvarna 535087802

WASHER

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 521933101

COVER WASHER

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 522505001

BALL BEARING

$10.99

$

Usually ships in 3-10 days

0

33

Husqvarna 574427402

PLUG SERVICE PLUG

$9.49

$

Usually ships in 3-10 days

0

42

Husqvarna 535139401

SCREW

$

$

Not available

4

Husqvarna 578056101

CLIP MAIN CONNECTOR

$

$

Not available

22

Husqvarna 522504801

SPINDLE

$13.99

$

Usually ships in 3-10 days

0

29

Husqvarna 535087802

WASHER

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 522664502

KIT 6MM AXLE KIT - STANDARD WH

Note: compl

$74.99

$

In Stock, only 2 left!

0

20

Husqvarna 522505001

BALL BEARING

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 579521201

NUT BUZZER

$

$

Not available

28

Husqvarna 522505001

BALL BEARING

$10.99

$

Usually ships in 3-10 days

0
