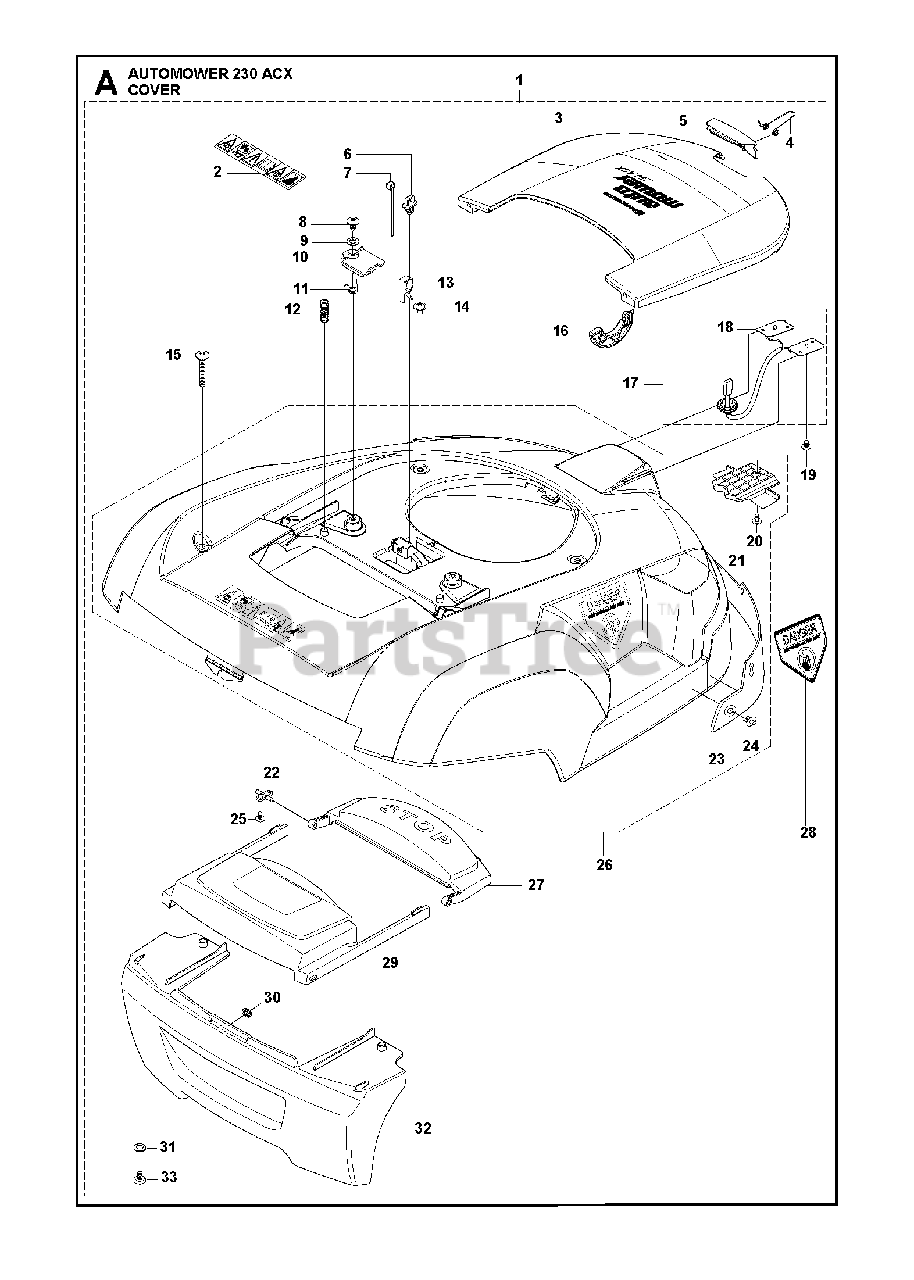

230 ACX - Husqvarna Automower Robotic Lawn Mower (2013-01) COVER Parts Diagram

Automower Robotic Lawn Mower

COVER Parts Diagram

  • Title

1

Husqvarna 575619001

Note: complete kit

$

$

Currently unavailable

2

Husqvarna 522792702

LABEL WARNING

$

$

Not available

3

Husqvarna 544905901

COVER 230 ACX

$68.99

$

Usually ships in 3-10 days

0

4

Husqvarna 535135701

SPRING

$

$

Not available

5

Husqvarna 535134903

HEIGHT ADJ. COVER LATCH

$

$

Not available

6

Husqvarna 535130401

BRACKET FOR BAND

$

$

Not available

7

Husqvarna 900238708

BAND

$

$

Not available

8

Husqvarna 575543310

SCREW SILVER 10MM

$3.49

$

In Stock, Qty 9

0

9

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 535126801

LOOP

$

$

Not available

11

Husqvarna 535130201

SPRING

$

$

Not available

12

Husqvarna 535130101

SPRING

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 535089801

CLIP RETAINER

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 535076002

SCREW

$

$

Not available

15

Husqvarna 535129305

SCREW IHPANM

$

$

Not available

16

Husqvarna 535135301

JOINT

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 535137301

CABLE ASSY
(Superseded to 535137303)

Note: compl

$40.99

$

Usually ships in 3-10 days

0

18

Husqvarna 535135901

THIN PLATE

Note: . 17

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 575543306

SCREW WHITE 6MM

$

$

Not available

20

Husqvarna 575543312

SCREW 12MM

Note: . 26

$

$

Not available

21

Husqvarna 505131401

SPACER

Note: . 26

$

$

Not available

22

Husqvarna 535127801

SHAFT

$

$

Not available

23

Husqvarna 544907102

Note: . 26

$

$

Currently unavailable

24

Husqvarna 535080901

RIVET

Note: . 26

$

$

Not available

25

Husqvarna 575543310

SCREW SILVER 10MM

$3.49

$

In Stock, Qty 9

0

26

Husqvarna 510096702

MAIN BODY KIT 230 ACX
(Superseded to 510096706)

Note: compl

$227.99

$

Usually ships in 3-10 days

0

27

Husqvarna 535126702

SWITCH

$

$

Not available

28

Husqvarna 513996100

LABEL, DANGER

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 535126602

COVER

$34.99

$

Usually ships in 3-10 days

0

30

Husqvarna 735585209

WASHER

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

32

Husqvarna 574430901

BUMPER, COVER

$

$

Not available

33

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, only 1 left!

0
