230 ACX - Husqvarna Automower Robotic Lawn Mower (2014-01) COVER Parts Diagram

Automower Robotic Lawn Mower

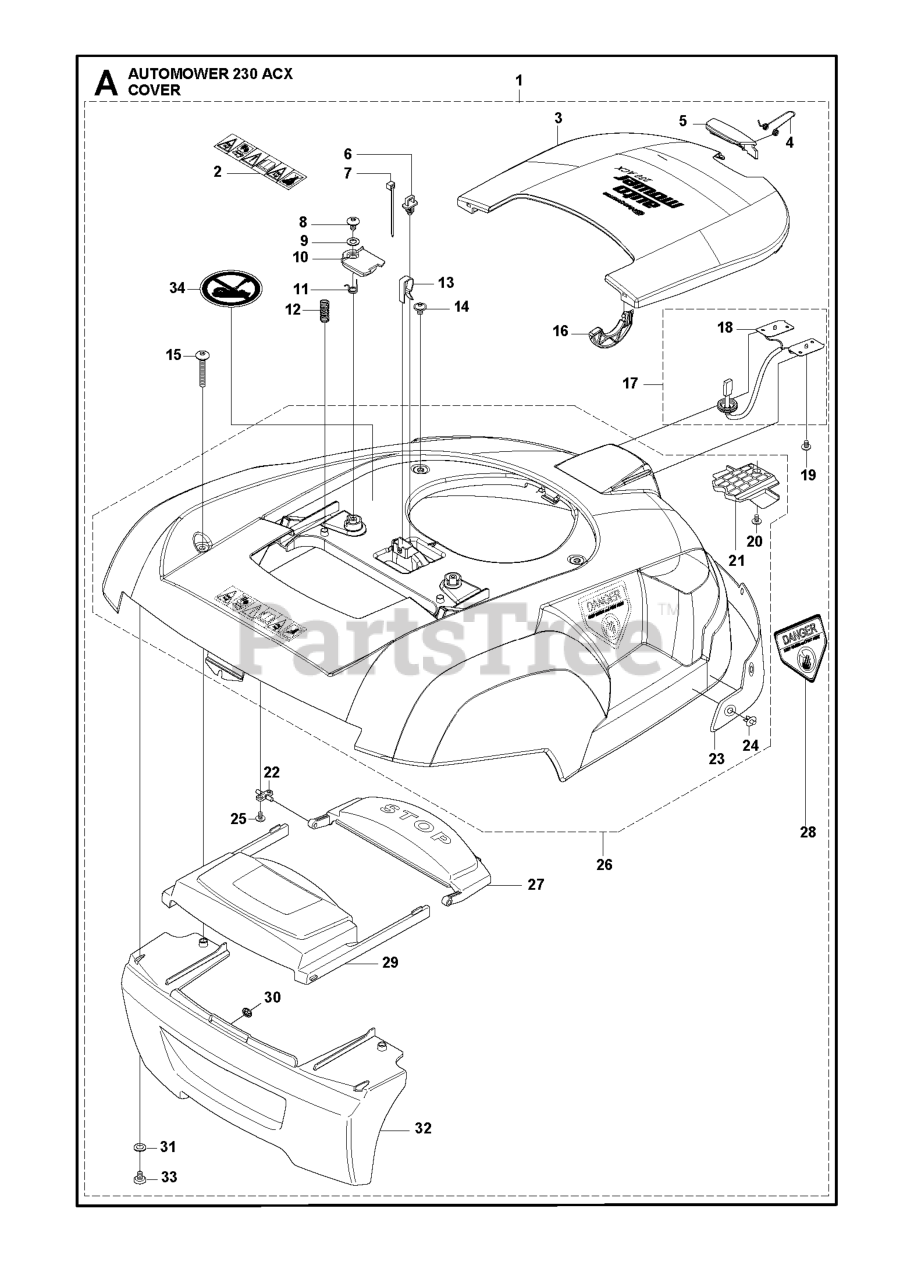

COVER Parts Diagram

  • Title

28

Husqvarna 513996100

LABEL, DANGER

Note: US/AU/NZ

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 505131401

SPACER

$

$

Not available

24

Husqvarna 535080901

RIVET

$

$

Not available

3

Husqvarna 544905901

COVER 230 ACX

$68.99

$

Usually ships in 3-10 days

0

7

Husqvarna 900238708

BAND

$

$

Not available

22

Husqvarna 535127801

SHAFT

$

$

Not available

11

Husqvarna 535130201

SPRING

$

$

Not available

32

Husqvarna 574430901

BUMPER, COVER

$

$

Not available

27

Husqvarna 535126702

SWITCH

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

12

Husqvarna 535130101

SPRING

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 535137301

CABLE ASSY
(Superseded to 535137303)

$40.99

$

Usually ships in 3-10 days

0

6

Husqvarna 535130401

BRACKET FOR BAND

$

$

Not available

20

Husqvarna 575543312

SCREW 12MM

$

$

Not available

4

Husqvarna 535135701

SPRING

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 535129305

SCREW IHPANM

$

$

Not available

31

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 575543310

SCREW SILVER 10MM

$4.99

$

In Stock, Qty 9

0

30

Husqvarna 735585209

WASHER

$

$

Not available

19

Husqvarna 575543306

SCREW WHITE 6MM

$

$

Not available

26

Husqvarna 510096706

BODY KIT INCL NEW BODY

$193.99

$

Usually ships in 3-10 days

0

13

Husqvarna 535089801

CLIP RETAINER

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 535134903

HEIGHT ADJ. COVER LATCH

$

$

Not available

18

Husqvarna 535135901

THIN PLATE

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 544907102

$

$

Currently unavailable

1

Husqvarna 575619002

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 535076002

SCREW

$

$

Not available

9

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

34

Husqvarna 586291001

LABEL WARNING KIT 10 PCS

Note: """Do not wash"" (10 pcs)"

$

$

Not available

2

Husqvarna 522792702

LABEL WARNING

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 535135301

JOINT

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575543310

SCREW SILVER 10MM

$4.99

$

In Stock, Qty 9

0

10

Husqvarna 535126801

LOOP

$

$

Not available

29

Husqvarna 535126602

COVER

$37.99

$

Usually ships in 3-10 days

0
