2300-50 - Dixon Zero-Turn Mower (2004) WIRING Parts Diagram

Zero-Turn Mower

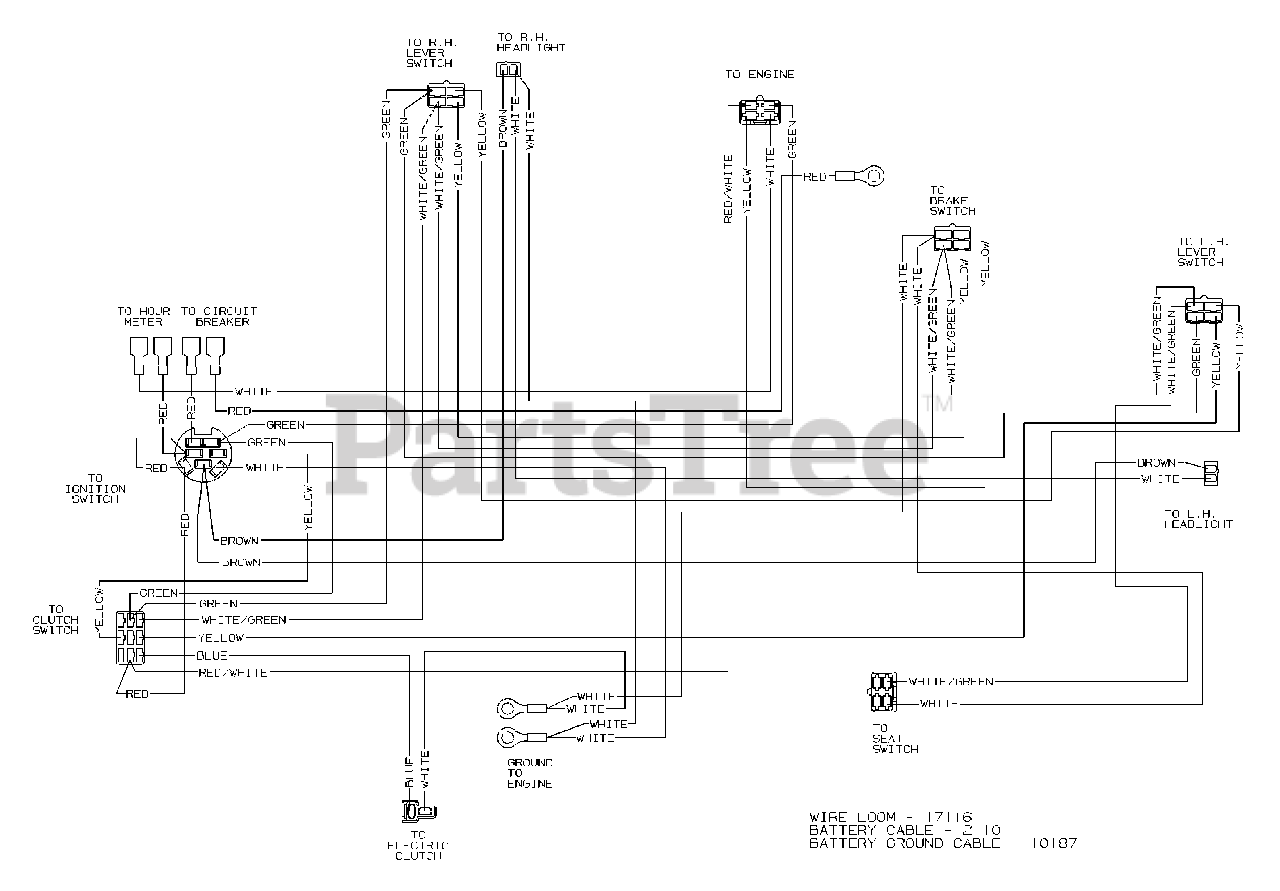

WIRING Parts Diagram

  • Title

2110

2110

BATTERY CABLE ASSY

$

$

Not available

10187

10187

GROUND CABLE

$

$

Not available

17116

17116

WIRE LOOM

$

$

Not available
