23000 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 002000001 - 002999999) (1972) Housing Assembly H. P. Model Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

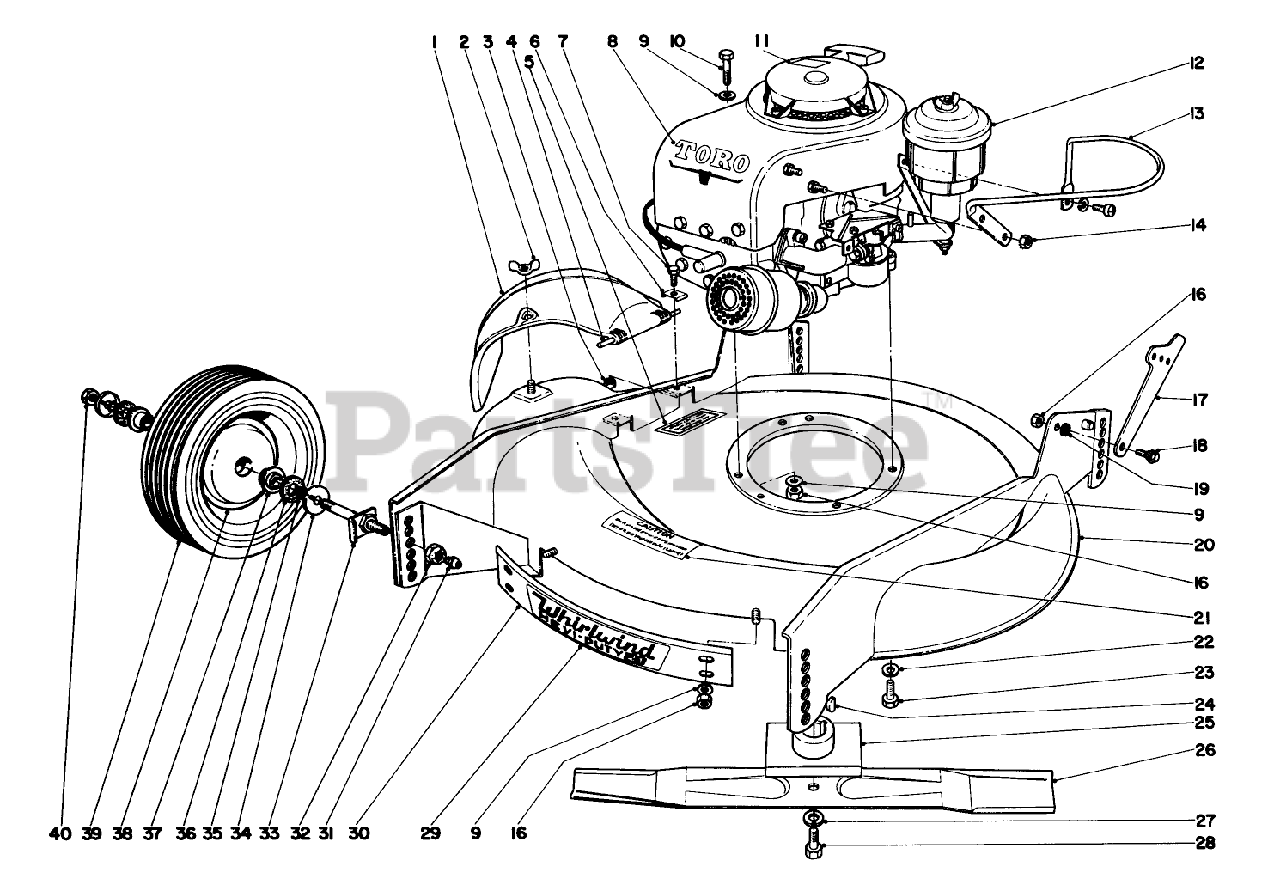

Housing Assembly H. P. Model Parts Diagram

  • Title

1

Toro 11-0450

See Supercession: 71-8640
(Superseded to 71-8640)

$

$

Not available

2

Toro 3-2625

DISCONTINUED

$

$

Not available

3

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3-2644

DISCONTINUED

$

$

Not available

5

Toro 3-7643

See Supercession: 104-8589
(Superseded to 104-8589)

$7.99

$

Usually ships in 3-6 days

0

6

Toro 3-2123

DISCONTINUED

$

$

Not available

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 5-1508

Decal

$

$

Currently unavailable

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

11

Toro 8-5390

DISCONTINUED

$

$

Not available

12

Toro 221-292

Engine

$

$

Currently unavailable

13

Toro 3-8282

DISCONTINUED

$

$

Not available

14

Toro 32149-5

See Supercession: 121-4698
(Superseded to 121-4698)

$1.99

$

Usually ships in 3-6 days

0

16

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

17

Toro 3-2656

DISCONTINUED

$

$

Not available

18

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

19

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 11

0

20

Toro 3-9960

Housing

$

$

Currently unavailable

21

Toro 3-5301

Decal

$

$

Currently unavailable

22

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

23

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 5

0

25

Toro 3-8570

DISCONTINUED

$

$

Not available

26

Toro 5-4012

See Supercession: 26-5790
(Superseded to 26-5790)

$

$

Not available

27

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

28

Toro 3-5246

DISCONTINUED

$

$

Not available

29

Toro 11-3630

Decal

$

$

Currently unavailable

30

Toro 3-4412

Guard

$

$

Currently unavailable

31

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

32

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, Qty 10

0

33

Toro 3-4059

DISCONTINUED

$

$

Not available

34

Toro 3-4416

DISCONTINUED

$

$

Not available

35

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

36

Toro 3-4417

DISCONTINUED

$

$

Not available

37

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$19.99

$

In Stock, only 1 left!

0

38

Toro 2-5499

See Supercession: 3-2179
(Superseded to 3-2179)

$

$

Not available

39

Toro 234-18

DISCONTINUED

$

$

Not available

40

Toro 32146-11

See Supercession: 3296-19
(Superseded to 3296-19)

$1.49

$

In Stock, Qty 20+

0

Toro 2-9109

Loose Parts Assembly

Note: Not illustrated

$

$

Currently unavailable
