23000 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 003000001 - 003999999) (1973) Engine Model No. V50-60126g 60127g Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

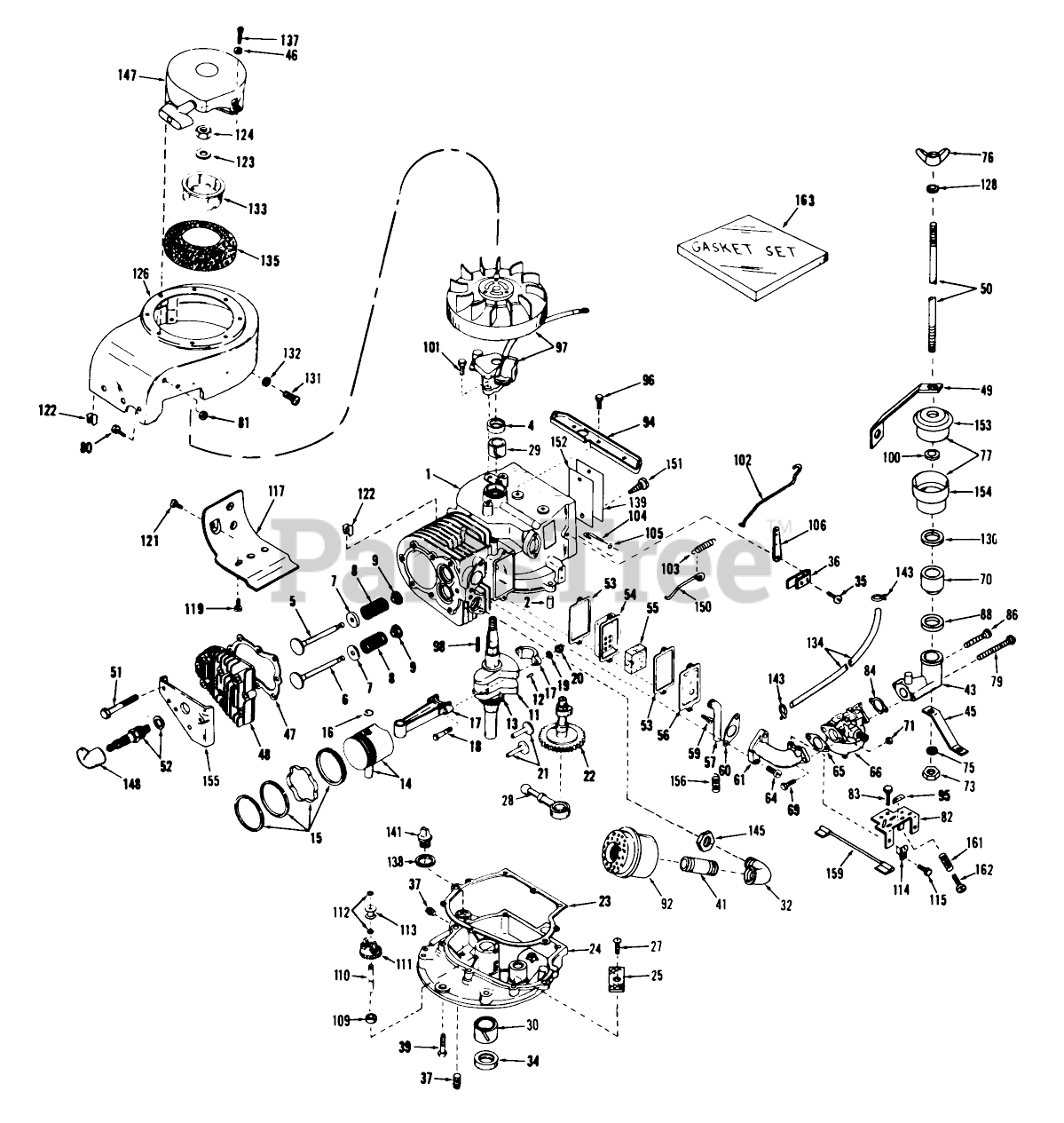

Engine Model No. V50-60126g 60127g Parts Diagram

  • Title

1

Toro 31536A

Cylinder Assy.(Incl. Nos. 2 4)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

4

Toro 27876B

Seal, Oil

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

5

Toro 31467A

Valve, Intake, Standard (Incl. No. 9)

$

$

Currently unavailable

5

Toro 31468A

Valve, Intake, 1/32" Oversize (Incl. No. 9)

$

$

Currently unavailable

6

Toro 31469A

Valve, Exhaust, Standard (Incl. No. 9)

$

$

Currently unavailable

6

Toro 31470A

Valve, Exhaust, 1/32" Oversize (Incl. No. 9)

$

$

Currently unavailable

7

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

8

Toro 27881

Spring-Valve

$

$

Currently unavailable

9

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

11

Toro 31459

Crankshaft Assy. (Incl. Ref. Nos.12 13) V40-50008E
(Superseded to 704620)

$

$

Not available

11

Toro 31729

Crankshaft Assy. (Incl. Ref. Nos.12 13) V40-50037E

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

14

Toro 30662

Piston Pin Assy., Std., (Incl. 2 of No. 16)

$

$

Currently unavailable

14

Toro 30663

Piston Pin Assy., .010 oversize (Incl. 2 of No. 16)

$

$

Currently unavailable

14

Toro 30664

Piston Pin Assy., .020 oversize (Incl. 2 of No. 16)

$

$

Currently unavailable

15

Toro 28935

Ring Set (Standard)

$

$

Currently unavailable

15

Toro 28936

Ring Set (.010 Oversize)

$

$

Currently unavailable

15

Toro 28937

Ring Set (.020 Oversize)

$

$

Currently unavailable

16

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

17

Toro 31466

Rod Assy., Connecting (Incl. Nos.18,19 20)

$

$

Currently unavailable

18

Toro 21718

Bolt, Connecting Rod

$

$

Currently unavailable

19

Toro 26073

Washer

$

$

Currently unavailable

20

Toro 28264

Nut

$

$

Currently unavailable

21

Toro 27893

Lifter Valve

$

$

Currently unavailable

22

Toro 32114

Screw

$

$

Currently unavailable

23

Toro 30684

Gasket-Cover, Cylinder

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

24

Toro 31471A

Flange Assy., Mounting (Incl. Nos. 25, 27, 34, 37, 43, 44 110)

$

$

Currently unavailable

25

Toro 31355

Screen-Oil Filter

$

$

Currently unavailable

27

Toro 29117

Screw

$

$

Currently unavailable

28

Toro 31356

Pump, Oil

$

$

Currently unavailable

29

Toro 31461

Bushing, Crankshaft

$

$

Currently unavailable

30

Toro 31462

Bushing, Crankshaft

$

$

Currently unavailable

32

Toro 29574

Elbow, Exhaust (90 degree)

$

$

Currently unavailable

34

Toro 27897

Seal-Oil

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

35

Toro 650548

Screw

$

$

Currently unavailable

36

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

37

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

39

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

41

Toro 30244

Nipple, Pipe

$

$

Currently unavailable

43

Toro 31473

Elbow, Air cleaner

$

$

Currently unavailable

45

Toro 31475

Brace, Cleaner elbow

$

$

Currently unavailable

46

Toro 650168

Washer

$

$

Currently unavailable

47

Toro 28938B

Gasket-Head, Cylinder

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

48

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

49

Toro 31474

Brace Cleaner

$

$

Currently unavailable

50

Toro 31476

Stud, Air cleaner

$

$

Currently unavailable

51

Toro 28261

Screw

$

$

Currently unavailable

52

Toro 21943

SPARK PLUG

$

$

Currently unavailable

53

Toro 27896

Gasket-Breather

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

54

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

55

Toro 28424

Element-Breather

$

$

Currently unavailable

56

Toro 28425

Cover-Valve

$

$

Currently unavailable

57

Toro 27627

Tube-Breather

$

$

Currently unavailable

59

Toro 650128

Screw

$

$

Currently unavailable

60

Toro 27915

Gasket-Intake

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

61

Toro 31512

Pipe, Intake

$

$

Currently unavailable

64

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

65

Toro 26756

Gasket

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

66

Toro 631115

Carburetor

$

$

Currently unavailable

69

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

70

Toro 29497

Spacer, Cleaner

$

$

Currently unavailable

71

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

73

Toro 650129

Nut

$

$

Currently unavailable

75

Toro 27513

Lockwasher, Split

$

$

Currently unavailable

76

Toro 650513

Nut-Wing

$

$

Currently unavailable

77

Toro 31477

Cleaner Assy., Oil Bath Air (Incl. Nos.100,128,130,153 154)

$

$

Currently unavailable

79

Toro 650519

Screw

$

$

Currently unavailable

80

Toro 28454

Screw

$

$

Currently unavailable

81

Toro 650586

Nut-Jam (5/16-24)

$

$

Currently unavailable

82

Toro 31736

Control Assy., Speed

$

$

Currently unavailable

83

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

84

Toro 27272

Gasket

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

86

Toro 28597

KIT - SEAL WIPER

$

$

Currently unavailable

88

Toro 27165

Gasket, Spacer

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

92

Toro 29633

Muffler

$

$

Currently unavailable

94

Toro 28738

Bracket, Blower Housing (Incl. Nos. 131)

$

$

Currently unavailable

95

Toro 31495

Decal
(Superseded to 703163)

$362.99

$

Usually ships in 3-6 days

0

96

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

97

Toro 610689A

Magneto

$

$

Currently unavailable

98

Toro 30884

Key, Flywheel

$

$

Currently unavailable

100

Toro 31480

O Ring

$

$

Currently unavailable

101

Toro 650489

Screw

$

$

Currently unavailable

102

Toro 31823

Link Governor
(Superseded to 742364)

$

$

Not available

103

Toro 31361

Spring Governor

$

$

Currently unavailable

104

Toro 30669

Rod, Governor (Incl. Nos. 146)

$

$

Currently unavailable

105

Toro 28277

Washer-Flat

$

$

Currently unavailable

106

Toro 31357

Lever-Governor

$

$

Currently unavailable

109

Toro 31707

Spacer

$

$

Currently unavailable

110

Toro 30668

Shaft, Governor

$

$

Currently unavailable

111

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

112

Toro 29193

Ring-Retaining

$

$

Currently unavailable

113

Toro 30588A

Spool-Governor

$

$

Currently unavailable

114

Toro 27793

Conduit

$

$

Currently unavailable

115

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

117

Toro 30622

Emnsion, Blower Housing

$

$

Currently unavailable

119

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 30688

Screw

$

$

Currently unavailable

122

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

123

Toro 650490

Washer

$

$

Currently unavailable

124

Toro 8116

DISCONTINUED

$

$

Not available

126

Toro 32583

Housing, Blower

$

$

Currently unavailable

128

Toro 31481

Washer

$

$

Currently unavailable

130

Toro 31479

1565F GIL TILLER.AD

$3.23

$

Usually ships in 3-6 days

0

131

Toro 29596

Screw

$

$

Currently unavailable

132

Toro 8274

Lockwasher

$

$

Currently unavailable

133

Toro 32125

Cup-Starter

$

$

Currently unavailable

134

Toro 30962

Line-Fuel

$

$

Currently unavailable

135

Toro 590417

Screen, Air

$

$

Currently unavailable

137

Toro 30513

Screw

$

$

Currently unavailable

138

Toro 29673

Gasket

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

139

Toro 31865

480B GIL SNWTHWR O/

$3.23

$

Usually ships in 3-6 days

0

141

Toro 27625

Plug-Fill, Oil
(Superseded to 741498)

$

$

Not available

143

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

145

Toro 28443

Nut, Conduit

$

$

Currently unavailable

147

Toro 590420

Starter, Rewind

$

$

Currently unavailable

148

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

150

Toro 32582

Link Governor Spring

$

$

Currently unavailable

151

Toro 28670

Stud

$

$

Not available

152

Toro 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

153

Toro 31669

Cover, Oil bath cleaner

$

$

Currently unavailable

154

Toro 31670

Bowl, Oil Bath Cleaner
(Superseded to 742356)

$

$

Not available

155

Toro 30939

Cover, Cylinder head

$

$

Currently unavailable

156

Toro 31778

Spring, Coil

$

$

Currently unavailable

159

Toro 28468

Wire, Ground

$

$

Currently unavailable

161

Toro 31342

Spring-Compression

$

$

Currently unavailable

162

Toro 650549

Screw

$

$

Currently unavailable

163

Toro 31372A

Gasket Set

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable
