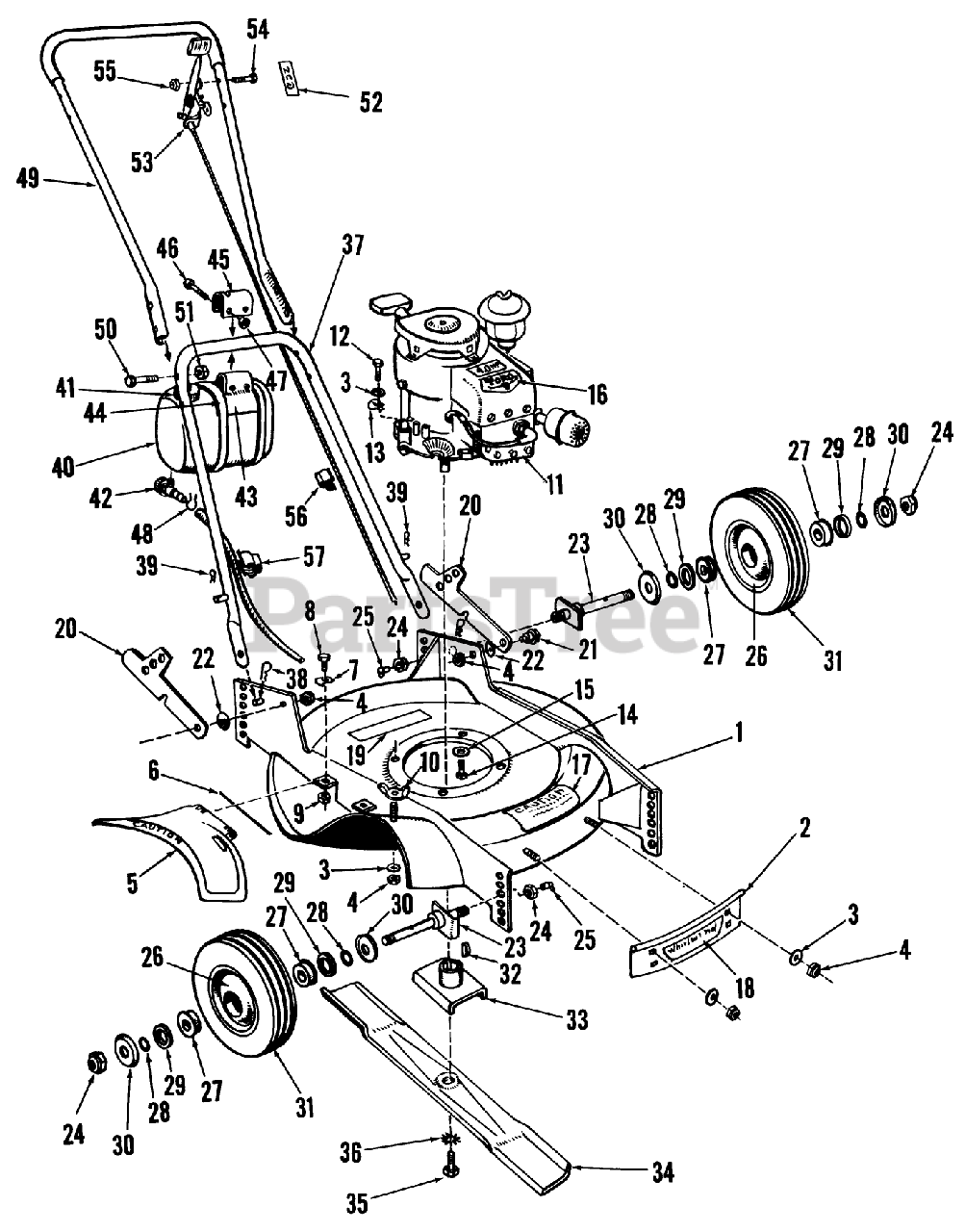

23000 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 004000001 - 004999999) (1964) 21" WHIRLWIND HEVI-DUTY HAND PROPELLED MOWER PARTS LIST Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

21" WHIRLWIND HEVI-DUTY HAND PROPELLED MOWER PARTS LIST Parts Diagram

  • Title

1

Toro 3-9960

Housing

$

$

Currently unavailable

2

Toro 3-4412

Guard

$

$

Currently unavailable

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 3-2644

DISCONTINUED

$

$

Not available

7

Toro 3-2123

DISCONTINUED

$

$

Not available

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 3-2625

DISCONTINUED

$

$

Not available

11

Toro 221-225

Engine

$

$

Currently unavailable

12

Toro 322-7

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

17

Toro 3-5301

Decal

$

$

Currently unavailable

18

Toro 3-4813

Decal

$

$

Currently unavailable

19

Toro 3-6432

Decal

$

$

Currently unavailable

20

Toro 3-2656

DISCONTINUED

$

$

Not available

21

Toro 3-1846

See Supercession: 5-2490
(Superseded to 5-2490)

$

$

Not available

22

Toro 3290-211

WASHER-SPRING

$6.49

$

Usually ships in 3-6 days

0

23

Toro 3-4059

DISCONTINUED

$

$

Not available

24

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, Qty 10

0

25

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

28

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

29

Toro 3-4417

DISCONTINUED

$

$

Not available

30

Toro 3-4416

DISCONTINUED

$

$

Not available

31

Toro 234-18

DISCONTINUED

$

$

Not available

32

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 5

0

33

Toro 3-8570

DISCONTINUED

$

$

Not available

34

Toro 3-5215

See Supercession: 26-5790
(Superseded to 26-5790)

$

$

Not available

35

Toro 3-5246

DISCONTINUED

$

$

Not available

37

Toro 3-6850

DISCONTINUED

$

$

Not available

38

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

39

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

40

Toro 222-14

See Supercession: 52-2331
(Superseded to 52-2331)

$475.99

$

Usually ships in 3-6 days

0

41

Toro 222-15

DISCONTINUE

$

$

Not available

42

Toro 304-71

DISCONTINUED

$

$

Not available

43

Toro 3-6345

DISCONTINUED

$

$

Not available

44

Toro 3-6346

DISCONTINUED

$

$

Not available

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Toro 3-6477

See Supercession: 22-5060
(Superseded to 22-5060)

$

$

Not available

48

Toro 2210-87

See Supercession: 2412-36
(Superseded to 2412-36)

$2.49

$

In Stock, Qty 8

0

49

Toro 2-4549

See Supercession: 26-7840
(Superseded to 26-7840)

$240.99

$

Usually ships in 3-6 days

0

50

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

51

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

52

Toro 3-2067

Decal

$

$

Currently unavailable

53

Toro 3-5136

See Supercession: 29-6720
(Superseded to 29-6720)

$

$

Not available

54

Toro 3251-13

DISCONTINUED

$

$

Not available

55

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

56

Toro WA-85

Clamp

$

$

Currently unavailable

57

Toro 3-5181

DISCONTINUED

$

$

Not available
