23004 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 004000001 - 004999999) (1974) HOUSING ASSEMBLY H.P. MODEL 23004 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

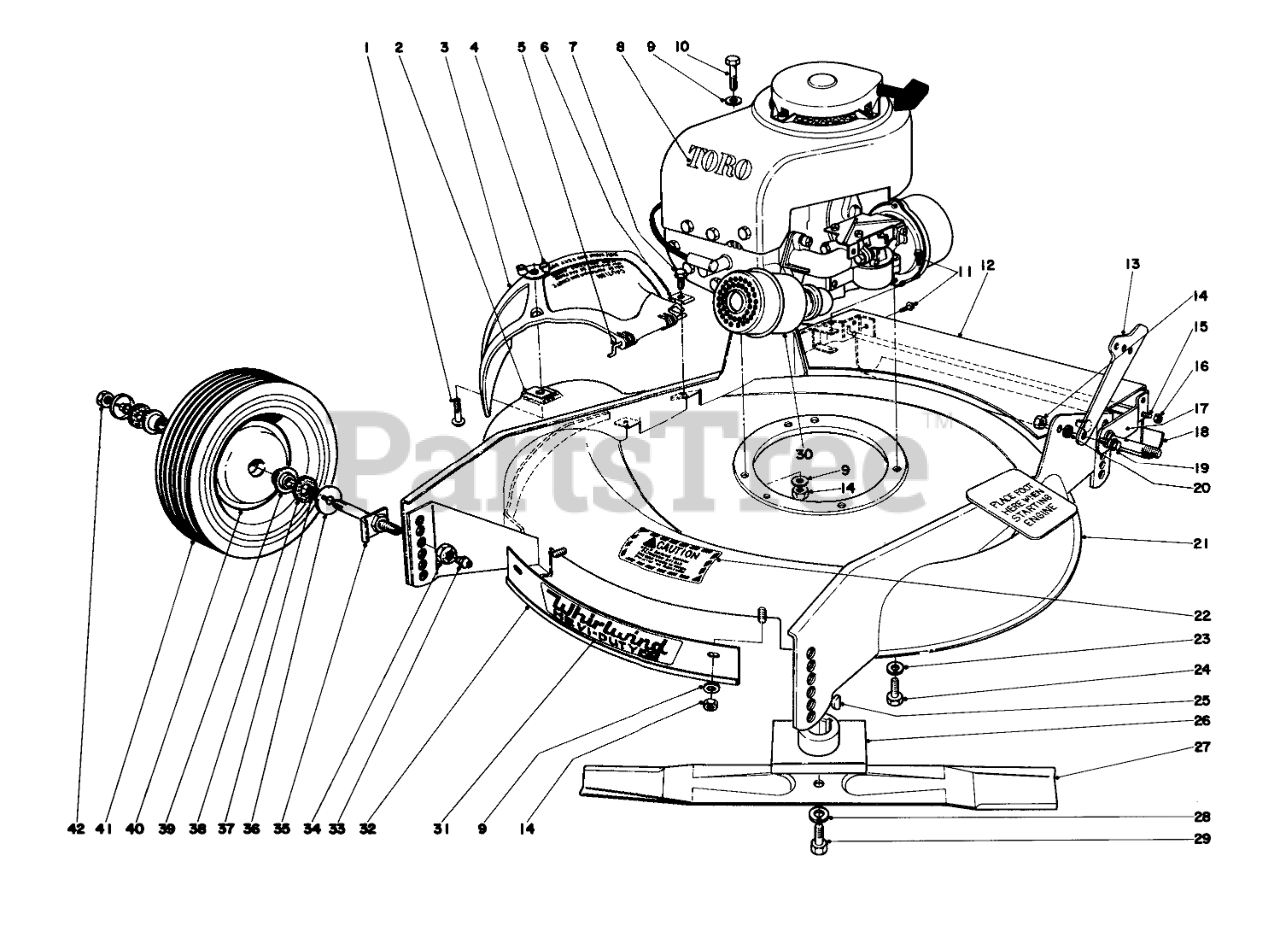

HOUSING ASSEMBLY H.P. MODEL 23004 Parts Diagram

  • Title

1

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

2

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

3

Toro 12-2270

Deflector
(Superseded to 71-8640)

$

$

Not available

4

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

6

Toro 3-2123

Clamp

$

$

Not available

7

Toro 32140-42

1/4-20X1/2 THDG SEMS

$

$

Not available

8

Toro 12-9140

DECAL

$

$

Currently unavailable

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

12

Toro 22-5120

Cover

$

$

Not available

13

Toro 3-2656

Latch

$

$

Not available

14

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

15

Toro 22-5160

Safety Shield Rod
(Superseded to 22-5170)

$

$

Not available

16

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 22-4940

REAR SAFETY SHIELD

$

$

Not available

19

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

20

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

26

Toro 3-8570

BLADE RETAINER WA

$

$

Not available

27

Toro 5-4012

Blade
(Superseded to 26-5790)

$

$

Not available

28

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

29

Toro 3-5246

SPECIAL SCREW

$

$

Not available

31

Toro 11-3630

Decal

$

$

Currently unavailable

33

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 15

0

34

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, Qty 6

0

35

Toro 3-4059

Spindle Ass-y. (Incl. Ref. #29)

$

$

Not available

36

Toro 3-4416

SLINGER

$

$

Not available

37

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

38

Toro 3-4417

Washer

$

$

Not available

39

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

40

Toro 2-5499

Wheel (Incl. Ref. #53)
(Superseded to 3-2179)

$142.99

$

In Stock, only 1 left!

0

41

Toro 234-18

1.75-8 SEMIPNEU TIRE

$

$

Not available

42

Toro 32146-11

Nut
(Superseded to 3296-19)

$1.49

$

In Stock, Qty 20+

0

Toro 2-9109

Loose Parts Assembly

$

$

Currently unavailable
