23022 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 007000001 - 007999999) (1977) Briggs Stratton Engine Model 130902-0508-01 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

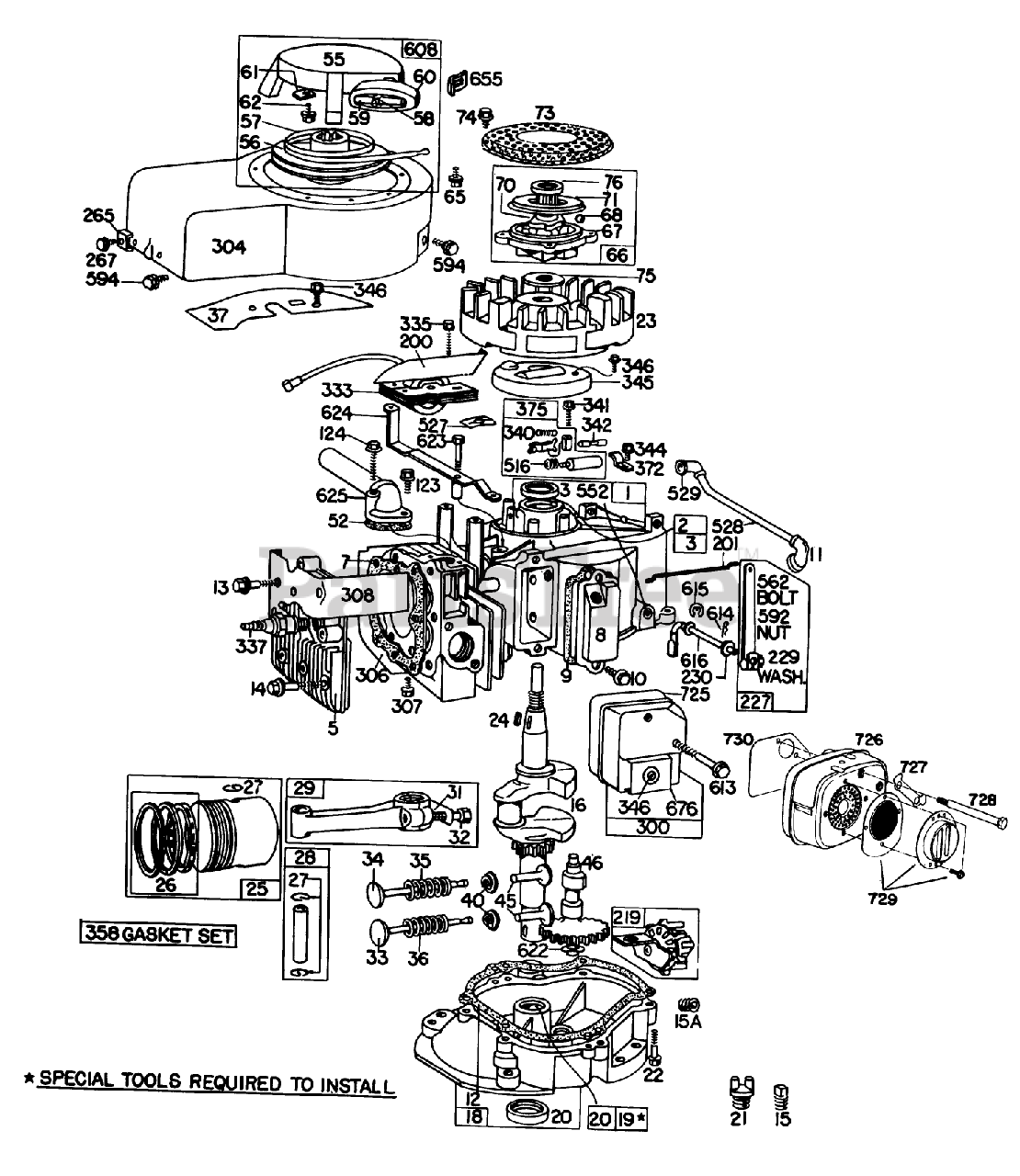

Briggs Stratton Engine Model 130902-0508-01 Parts Diagram

  • Title

1

Toro 299446

Cylinder Assembly

$

$

Currently unavailable

2

Toro 297565

Bushing-Cylinder

$

$

Currently unavailable

3

Toro 89660

Seal-Oil

$

$

Currently unavailable

5

Toro 211542

Head-Cylinder

$

$

Currently unavailable

7

Toro 270383

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

8

Toro 297261

Breather-Valve Chamber

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 67738

Grommet-Breather

$

$

Currently unavailable

12

Toro 270069

Gasket-Crankcase.015" Thick (Std.)

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

Toro 270122

Gasket-Crankcase-.005" thick

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

Toro 270123

Gasket-Crankcase-.009" thick

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

13

Toro 93368

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93369

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91084

Plug-Pipe

$

$

Currently unavailable

16

Toro 261370

Crankshaft

$

$

Currently unavailable

18

Toro 297587

Sump Oil

$

$

Currently unavailable

19

Toro 297604

Bushing-Oil Sump

$

$

Currently unavailable

20

Toro 294167

Seal-Oil

$

$

Currently unavailable

21

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

23

Toro 297229

Flywheel

$

$

Currently unavailable

24

Toro 61760

Key Flywheel

$

$

Currently unavailable

25

Toro 298904

Piston Assy.-Std.

$

$

Currently unavailable

Toro 298905

Piston Assy.-010"O.S.

$

$

Currently unavailable

Toro 298906

Piston Assy.-020"O.S.

$

$

Currently unavailable

Toro 298907

Piston Assy. .030" O.S.

$

$

Currently unavailable

26

Toro 298982

Ring Set (Std.)

$

$

Currently unavailable

Toro 298983

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 298984

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 298985

Lock-Piston Pin

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 299429

Rod Assy.-Connecting

$

$

Currently unavailable

31

Toro 221876

Lock

$

$

Not available

32

Toro 92296

Screw, Conn.Rod

$

$

Currently unavailable

33

Toro 211119

Valve Exhaust

$

$

Currently unavailable

34

Toro 261044

Valve-Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

37

Toro 222443

Guard-Flywheel

$

$

Currently unavailable

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 260642

Tappet-Valve

$

$

Currently unavailable

46

Toro 211117

Gear Cam

$

$

Currently unavailable

52

Toro 270070

Gasket-Intake Elbow Mtg.

$

$

Currently unavailable

55

Toro 299431

Housing-Rewind Starter

$

$

Currently unavailable

56

Toro 295871

Pulley-Rewind

$

$

Currently unavailable

57

Toro 294303

Spring-Rewind

$

$

Currently unavailable

58

Toro 66884

Rope-Rewind

$

$

Currently unavailable

59

Toro 230228

Pin-Starter Grip

$

$

Currently unavailable

60

Toro 66728

See Supercession: 742562
(Superseded to 742562)

$

$

Not available

61

Toro 68848

Bumper-Starter Pulley

$

$

Currently unavailable

62

Toro 93254

Screw-Pulley Bumper Mtg.

$

$

Currently unavailable

65

Toro 93067

Screw

$

$

Currently unavailable

66

Toro 298310

Clutch Assembly

$

$

Currently unavailable

67

Toro 211383

Housing

$

$

Currently unavailable

68

Toro 63770

Ball

$

$

Currently unavailable

70

Toro 298436

Ratchet

$

$

Currently unavailable

71

Toro 221653

Washer

$

$

Currently unavailable

73

Toro 221923

Screen-Rewind Starter

$

$

Currently unavailable

74

Toro 93490

Screw

$

$

Currently unavailable

75

Toro 220865

Washer

$

$

Currently unavailable

76

Toro 68238

Washer

$

$

Currently unavailable

123

Toro 93512

Screw Elbow Mtg.

$

$

Currently unavailable

124

Toro 93367

Screw-Intake EIbow Mtg.

$

$

Currently unavailable

200

Toro 221480

Guide-Air

$

$

Currently unavailable

201

Toro 260649

Link-Govemor

$

$

Currently unavailable

219

Toro 297249

Oil Slinger Gear, Gov. Bracket

$

$

Currently unavailable

227

Toro 297583

Lever Assy.-Governor

$

$

Currently unavailable

229

Toro 220680

Washer

$

$

Currently unavailable

230

Toro 221559

Clamp-Casing

$

$

Currently unavailable

265

Toro 22372

Clamp-Casing

$

$

Currently unavailable

267

Toro 93469

Screw

$

$

Currently unavailable

300

Toro 297274

Muffler-Exhaust

$

$

Currently unavailable

304

Toro 299332

Housing-Blower

$

$

Currently unavailable

306

Toro 221484

Shield-Cylinder

$

$

Currently unavailable

307

Toro 93042

Screw

$

$

Currently unavailable

308

Toro 221452

Cover-Cylinder Head

$

$

Currently unavailable

333

Toro 298316

Armature-Magneto

$

$

Currently unavailable

335

Toro 93414

Screw

$

$

Currently unavailable

337

Toro 293918

Plug-Spark

$

$

Currently unavailable

340

Toro 26018

Spring Breaker Arm

$

$

Currently unavailable

341

Toro 93381

Screw

$

$

Currently unavailable

342

Toro 65704

Plunger

$

$

Currently unavailable

344

Toro 93042

Screw

$

$

Currently unavailable

345

Toro 220366

Cover Breaker Pt. Cond.

$

$

Currently unavailable

346

Toro 93014

Screw

$

$

Currently unavailable

358

Toro 297616

Gasket Set

$

$

Currently unavailable

372

Toro 220477

Camp-Condenser

$

$

Currently unavailable

375

Toro 294628

Set

$

$

Currently unavailable

516

Toro 260374

Spring Connector

$

$

Currently unavailable

527

Toro 93376

Dip-Breather Pipe

$

$

Currently unavailable

528

Toro 230717

55323 REVISED PARTS

$3.23

$

Usually ships in 3-6 days

0

529

Toro 67608

Grommet-Breather Tube

$

$

Currently unavailable

552

Toro 230735

Bushing-Governor Shaft

$

$

Currently unavailable

562

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

592

Toro 90356

Nut

$

$

Currently unavailable

594

Toro 93559

Screw

$

$

Currently unavailable

Mounting Sem

Note: Not Illustrated.

$

$

Not available

608

Toro 299334

Starter Assy.-Rewind

$

$

Currently unavailable

613

Toro 93377

Screw-Hex. Hd.

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

616

Toro 230714

Crank-Governor

$

$

Currently unavailable

622

Toro 260676

Washer-Spring (Used between cam gear box and oil slingerbracket)

$

$

Currently unavailable

623

Toro 93566

Screw-ShouIder

$

$

Currently unavailable

624

Toro 297252

Lever-Linkage

$

$

Currently unavailable

625

Toro 297254

Elbow and Tube-Intake

$

$

Currently unavailable

725

Toro 221885

Heat Shield

$

$

Currently unavailable

726

Toro 391313

Muffler-Exhaust

$

$

Currently unavailable

727

Toro 222263

Lockplate

$

$

Currently unavailable

728

Toro 93704

Capscrew

$

$

Currently unavailable

729

Toro 392194

Deflector Assem.

$

$

Currently unavailable

730

Toro 221885

Heat Shield

$

$

Currently unavailable
