Parts Home > Toro > Accessories & Attachments > 23101 - Toro Soil Cultivator for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) > FRAME ASSEMBLY

23101 - Toro Soil Cultivator for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000)

Soil Cultivator for Dingo Compact Utility Loader

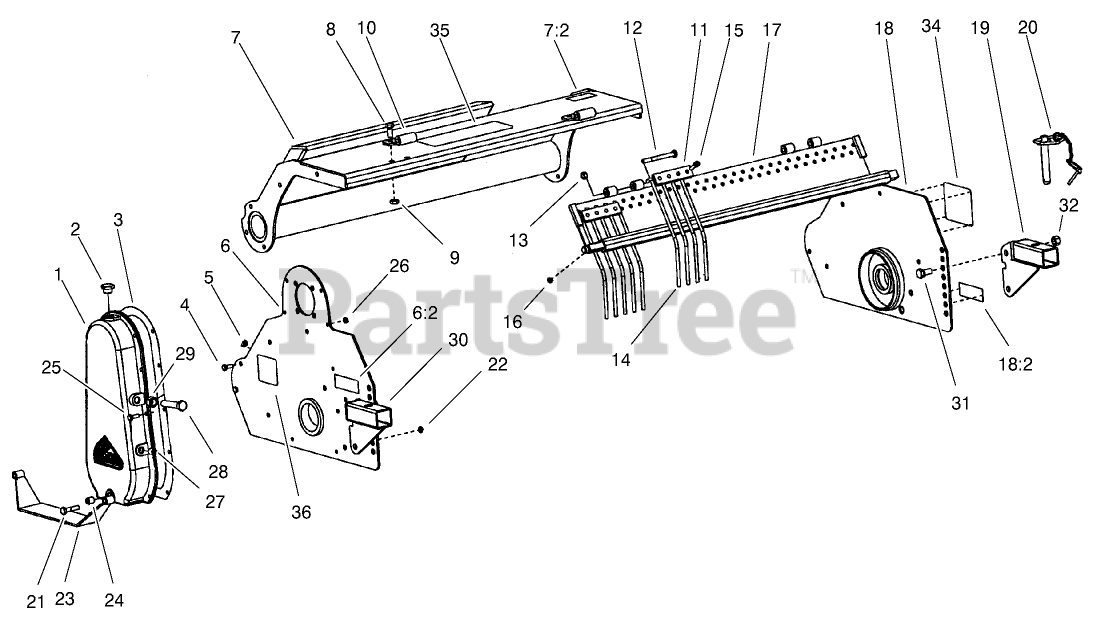

23101 - Toro Soil Cultivator for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) > Parts Diagrams (4) > FRAME ASSEMBLY

  • Title
100-4709

1

CASE-CHAIN

Part# 100-4709

OEM Warranty Repair Part for Toro

Not available

100-4710

2

PLUG

Part# 100-4710

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.73

100-4711

3

GASKET-CORK

Part# 100-4711

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $185.16

48-7780

4

SCREW

Part# 48-7780 (Superseded to 33115-025)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.32

48-9520

5

NUT

Part# 48-9520 (Superseded to 33025-00)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.05

100-4726

6

LEFT SIDE ASM

Part# 100-4726

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1082.16

93-7321

6:2

DECAL-DANGER

Part# 93-7321

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.82

100-4731

7

FRAME CHASSIS ASM

Part# 100-4731

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5424.86

100-4708

7:2

DECAL-WARNING

Part# 100-4708

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $39.36

42-9250

8

BOLT

Part# 42-9250

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.55

33026-00

9

NUT-LOCK

Part# 33026-00

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.58

100-4719

10

HINGE

Part# 100-4719

OEM Warranty Repair Part for Toro

Not available

100-4720

11

FLANGE

Part# 100-4720

OEM Warranty Repair Part for Toro

Not available

33115-130

12

SCREW-HH

Part# 33115-130

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.81

48-9520

13

NUT

Part# 48-9520 (Superseded to 33025-00)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.05

100-4721

14

ROD-SCREENING

Part# 100-4721 (Superseded to 114-1439)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $64.53

104-1850

15

BOLT-HSH

Part# 104-1850

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.15

33024-00

16

NUT-LOCK, NI

Part# 33024-00

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.02

100-4722

17

PLATE-ROD, SCREENING

Part# 100-4722

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1423.79

100-4730

18

RIGHT SIDE ASM

Part# 100-4730

OEM Warranty Repair Part for Toro

Not available

93-7321

18:2

DECAL-DANGER

Part# 93-7321

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.82

100-4727

19

PLATE-FITTING, RIGHT

Part# 100-4727

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $474.47

100-4728

20

PIN-DRIFT

Part# 100-4728 (Superseded to 100-4777)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $73.63

53-5840

21

SCREW

Part# 53-5840

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.87

48-9520

22

NUT

Part# 48-9520 (Superseded to 33025-00)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.05

100-4729

23

PLATE-PROTECTOR

Part# 100-4729

OEM Warranty Repair Part for Toro

Not available

100-4725

24

PLUG-BRASS

Part# 100-4725

OEM Warranty Repair Part for Toro

Not available

60-6750

25

BOLT

Part# 60-6750

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.45

33024-00

26

NUT-LOCK, NI

Part# 33024-00

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.02

100-4725

27

PLUG-BRASS

Part# 100-4725

OEM Warranty Repair Part for Toro

Not available

33118-080

28

Screw-HH

Part# 33118-080

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.61

60-6770

29

NUT

Part# 60-6770

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.00

100-4741

30

PLATE-FITTING, LEFT

Part# 100-4741

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $474.47

43-3210

31

SCREW-HH

Part# 43-3210

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.55

93-5590

32

NUT-HEX

Part# 93-5590 (Superseded to 108-9342)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

100-4762

34

DECAL-DINGO

Part# 100-4762

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.32

100-8828

35

DECAL-DINGO, FRONT

Part# 100-8828

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.50

99-4349

36

DECAL-LOGO, DINGO

Part# 99-4349

OEM Warranty Repair Part for Toro

Not available
