23102 - Toro Soil Cultivator for Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) HYDRAULIC MOTOR ASSEMBLY NO. 105-4573 Parts Diagram

Soil Cultivator for Dingo Compact Utility Loader

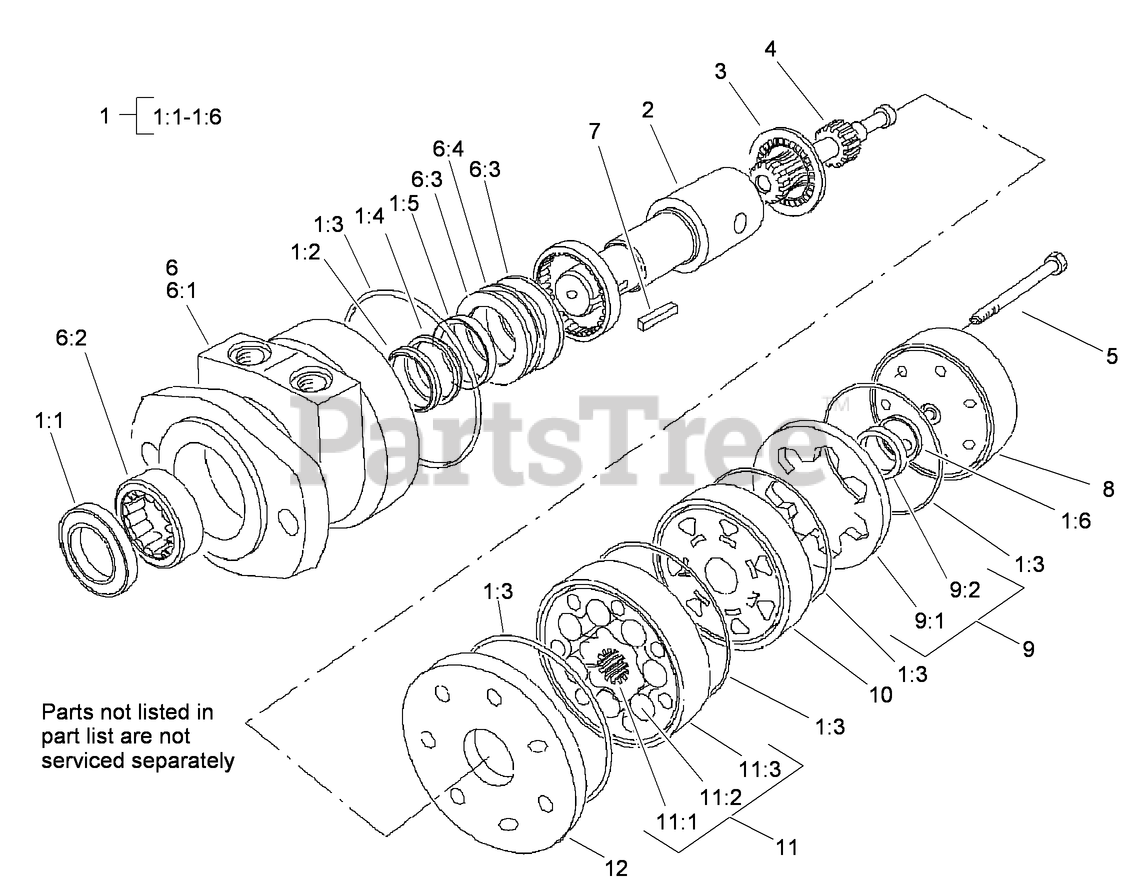

HYDRAULIC MOTOR ASSEMBLY NO. 105-4573 Parts Diagram

  • Title

1

Toro 94-8178

SEAL KIT
(Superseded to 100-6131)

$119.99

$

Usually ships in 3-6 days

0

1:1

Seal-Dirt and Water

Note: Not serviced separately

$

$

Not available

1:2

BACKUP-RING

Note: Not serviced separately

$

$

Not available

1:3

Seal-Shaft

Note: Not serviced separately

$

$

Not available

1:4

Washer-Backup

Note: Not serviced separately

$

$

Not available

1:5

SEAL-SQUARE, RING (INNER)

Note: Not serviced separately

$

$

Not available

1:6

Seal-Commutator

Note: Not serviced separately

$

$

Not available

2

Toro 95-6137

COUPLING SHAFT

$1239.99

$

Usually ships in 3-6 days

0

3

Toro 76-0850

BEARING-THRUST

$52.99

$

Usually ships in 3-6 days

0

4

Toro 76-0930

LINK-DRIVE

$592.99

$

Usually ships in 3-6 days

0

5

Toro 76-1030

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

6

Toro 95-6136

HOUSING ASM

$1878.99

$

Usually ships in 3-6 days

0

6:1

HOUSING

Note: Not serviced separately

$

$

Not available

6:2

Bearing

Note: Not serviced separately

$

$

Not available

6:3

Washer-Thrust

Note: Not serviced separately

$

$

Not available

6:4

Bearing-Thrust

Note: Not serviced separately

$

$

Not available

7

Toro 11-5790

KEY-SQUARE

$24.99

$

Usually ships in 3-6 days

0

8

Toro 76-0940

END COVER ASM

$744.99

$

Usually ships in 3-6 days

0

9

Toro 95-6138

COMMUTATOR ASM
(Superseded to 76-0880)

$

$

Not available

9:1

Ring-Commutator

Note: Not serviced separately

$

$

Not available

9:2

Commutator

Note: Not serviced separately

$

$

Not available

10

Toro 92-9755

MANIFOLD

$1191.99

$

Usually ships in 3-6 days

0

11

Toro 76-0950

ROTOR SET

$2466.99

$

Usually ships in 3-6 days

0

11:1

Rotor

Note: Not serviced separately

$

$

Not available

11:2

Vane

Note: Not serviced separately

$

$

Not available

11:3

Stator

Note: Not serviced separately

$

$

Not available

12

Toro 106-1978

PLATE-WEAR

$

$

Currently unavailable
