23106 - Toro Backhoe for Dingo Compact Utility Loader (SN: 321000001 - 321999999) (2021) Boom Assembly Parts Diagram

Backhoe for Dingo Compact Utility Loader

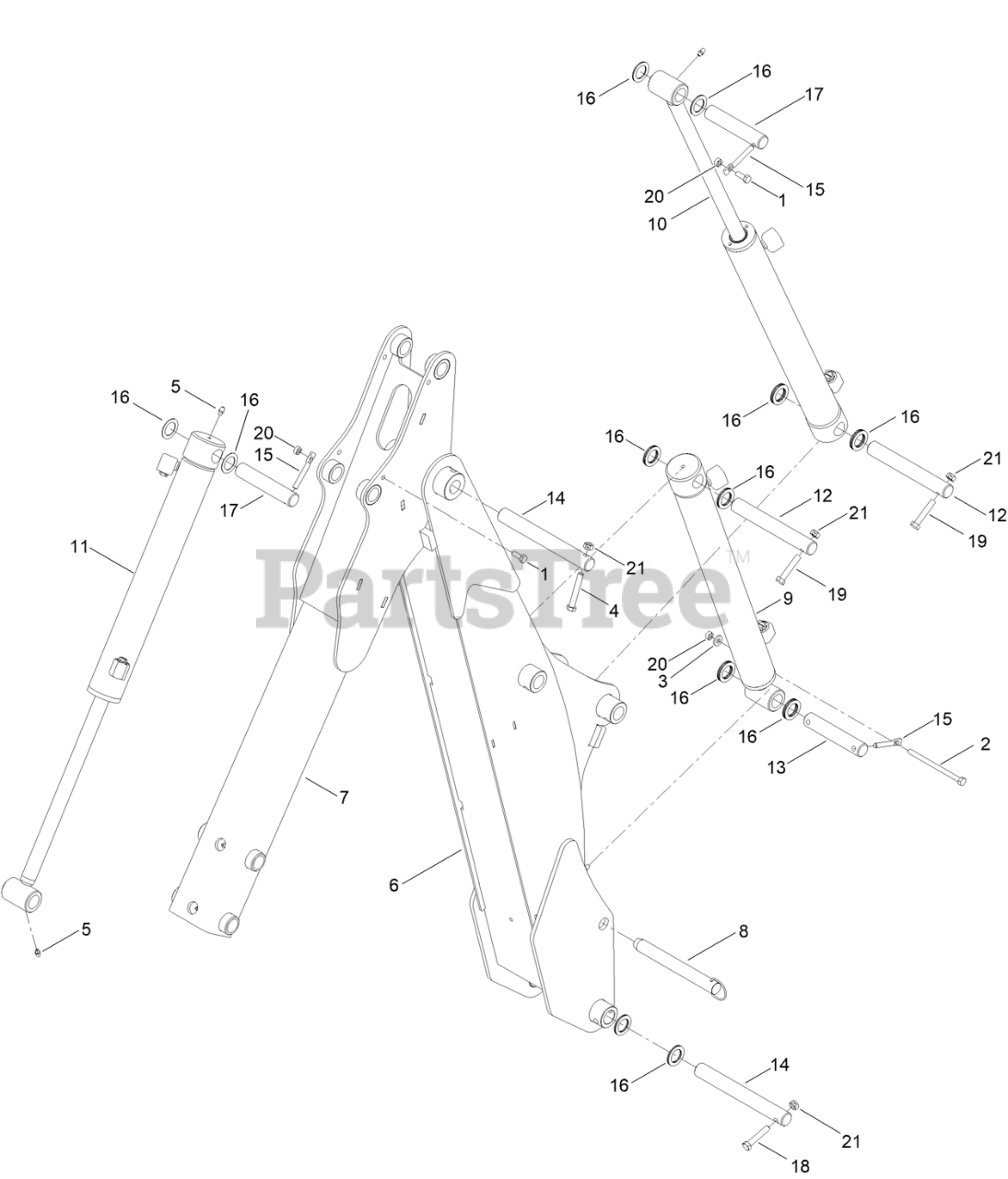

Boom Assembly Parts Diagram

  • Title

1

Toro 104-6560

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

2

Toro 105-3692

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

3

Toro 105-5769

WASHER

$1.49

$

Usually ships in 3-6 days

0

4

Toro 139-1711

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 144-6814

BOOM ARM-INNER

$4322.99

$

Usually ships in 3-6 days

0

7

Toro 144-6815

BOOM ARM-OUTTER

$3585.99

$

Usually ships in 3-6 days

0

8

Toro 144-6816

LOCKING PIN-BOOM INNER

$162.99

$

Usually ships in 3-6 days

0

9

Toro 144-6817

CYLINDER-BOOM

$1134.99

$

Usually ships in 3-6 days

0

10

Toro 144-6818

CYLINDER-BOOM

$

$

Currently unavailable

11

Toro 144-6819

CYLINDER-BOOM

$1705.99

$

Usually ships in 3-6 days

0

12

Toro 144-6821

PIN-BOOM CYLINDER

$81.99

$

Usually ships in 3-6 days

0

13

Toro 144-6822

PIN-BOOM CYLINDER

$83.99

$

Usually ships in 3-6 days

0

14

Toro 144-6823

PIN-BOOM CYLINDER

$88.99

$

Usually ships in 3-6 days

0

15

Toro 144-6824

LOCK PIN-CYLINDER

$11.99

$

Usually ships in 3-6 days

0

16

Toro 144-6830

WASHER

$

$

Currently unavailable

17

Toro 145-0181

PIN-CYLINDER

$92.99

$

Usually ships in 3-6 days

0

18

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 9

0

19

Toro 3211-46

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Toro 09207

NUT

$

$

Currently unavailable

21

Toro 32153-11

NUT-LOCK

$4.99

$

In Stock, Qty 7

0
