23106 - Toro Backhoe for Dingo Compact Utility Loader (SN: 321000001 - 321999999) (2021) Hydro Assembly Parts Diagram

Backhoe for Dingo Compact Utility Loader

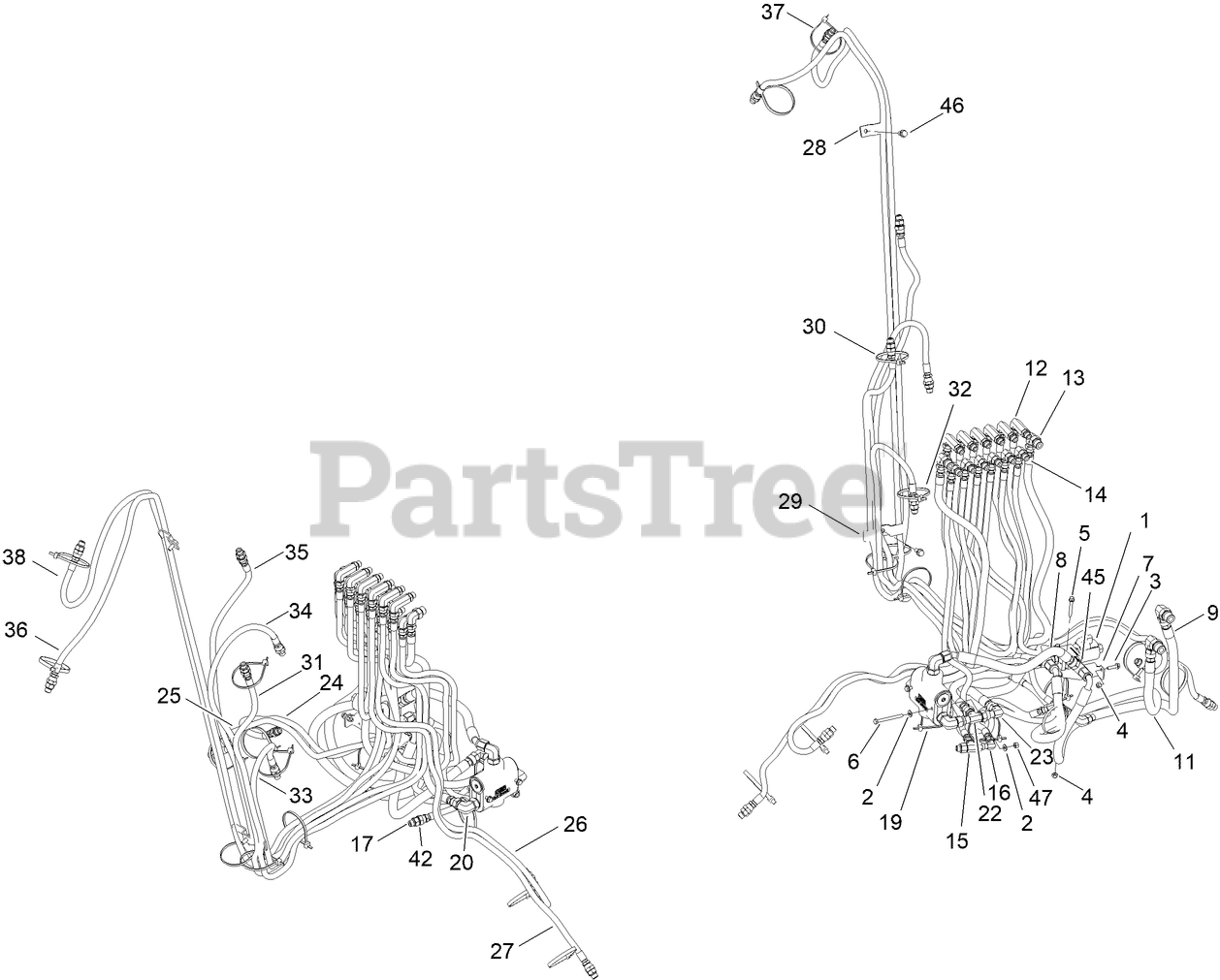

Hydro Assembly Parts Diagram

  • Title

1

Toro 115-2252

HYD MANIFOLD ASM

$671.99

$

Usually ships in 3-6 days

0

1:1

HOUSING

Note: Not illustrated

$

$

Not available

1:1

HOUSING

Note: Not serviced separately

$

$

Not available

1:2

Toro 110-8905

VALVE-RELIEF, SOLENOID

Note: Not illustrated

$684.99

$

Usually ships in 3-6 days

0

1:2:1

Toro 110-6316

SEAL KIT

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0

1:2:2

Toro 130-8181

NUT-COIL (1/2-20 UNF-2B)

Note: Not illustrated

$29.99

$

Usually ships in 3-6 days

0

1:3

Toro 115-3021

COIL-12V

Note: Not illustrated

$125.99

$

Usually ships in 3-6 days

0

2

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

3

Toro 120-4654

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

4

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

5

Toro 138-5527

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 139-2568

SCREW-HH

$

$

Currently unavailable

7

Toro 144-7144-01

BRACKET-MOUNT, VALVE

$

$

Currently unavailable

8

Toro 144-7145

HYD HOSE ASM

$98.99

$

Usually ships in 3-6 days

0

9

Toro 144-7146

HYD HOSE ASM

$131.99

$

Usually ships in 3-6 days

0

10

Toro 144-7147

HYD HOSE ASM

Note: Not illustrated

$98.99

$

Usually ships in 3-6 days

0

11

Toro 144-7149

HOSE HYD ASM

$131.99

$

Usually ships in 3-6 days

0

12

Toro 145-0121

FITTING-HOSE

$19.99

$

0

13

Toro 145-0122

FITTING-HOSE

$

$

Currently unavailable

14

Toro 145-0123

FITTING-HOSE

$

$

Currently unavailable

15

Toro 145-0125

FITTING-HOSE

$130.99

$

0

16

Toro 145-0126

FITTING-HOSE

$

$

Currently unavailable

17

Toro 145-0127

FITTING-HOSE

$

$

Currently unavailable

18

Toro 145-0128

FITTING-HOSE

Note: Not illustrated

$

$

Currently unavailable

19

Toro 145-0129

VALVE-HYDRO

$711.99

$

0

20

Toro 145-0130

FITTING-HOSE

$

$

Currently unavailable

21

Toro 145-0131

FITTING-HOSE

Note: Not illustrated

$

$

Currently unavailable

22

Toro 145-0136

FITTING-HOSE

$

$

Currently unavailable

23

Toro 145-0137

FITTING-HOSE

$

$

Currently unavailable

24

Toro 145-0140

HOSE-HYDRO

$153.99

$

0

25

Toro 145-0141

HOSE-HYDRO

$

$

Currently unavailable

26

Toro 145-0142

HOSE-HYDRO

$

$

Currently unavailable

27

Toro 145-0143

HOSE-HYDRO

$

$

Currently unavailable

28

Toro 145-0144

RETAINER-HOSE

$20.99

$

0

29

Toro 145-0145

RETAINER-HOSE

$19.99

$

0

30

Toro 145-0147

TIE-HYDRO

$

$

Currently unavailable

31

Toro 145-0148

HOSE-HYDRO

$214.99

$

0

32

Toro 145-0149

TIE-HYDRO

$

$

Currently unavailable

33

Toro 145-0150

HOSE-HYDRO

$

$

Currently unavailable

34

Toro 145-0151

HOSE-HYDRO

$238.99

$

0

35

Toro 145-0152

HOSE-HYDRO

$

$

Currently unavailable

36

Toro 145-0153

HOSE-HYDRO

$266.99

$

0

37

Toro 145-0154

TIE HYDRO

$

$

Currently unavailable

38

Toro 145-0155

HOSE-HYDRO

$

$

Currently unavailable

39

Toro 145-0156

HOSE-HYDRO

Note: Not illustrated

$133.99

$

0

40

Toro 145-0157

HOSE-HYDRO

Note: Not illustrated

$133.99

$

0

41

Toro 145-0158

HOSE-HYDRO

Note: Not illustrated

$116.99

$

0

42

Toro 145-0159

HOSE-HYDRO

$

$

Currently unavailable

43

Toro 145-0160

HOSE-HYDRO

Note: Not illustrated

$145.99

$

0

44

Toro 145-0161

HOSE-HYDRO

Note: Not illustrated

$153.99

$

0

45

Toro 340-109

FITTING-TEE

$68.99

$

Usually ships in 3-6 days

0

45:1

Toro 237-79

O-RING

Note: Not illustrated

$5.99

$

In Stock, Qty 15

0

45:2

Toro 237-30

O-RING

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

46

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

47

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0
