23123 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 004000001 - 004999999) (1974) HANDLE ASSEMBLY S.P. MODELS 23144 & 23123 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

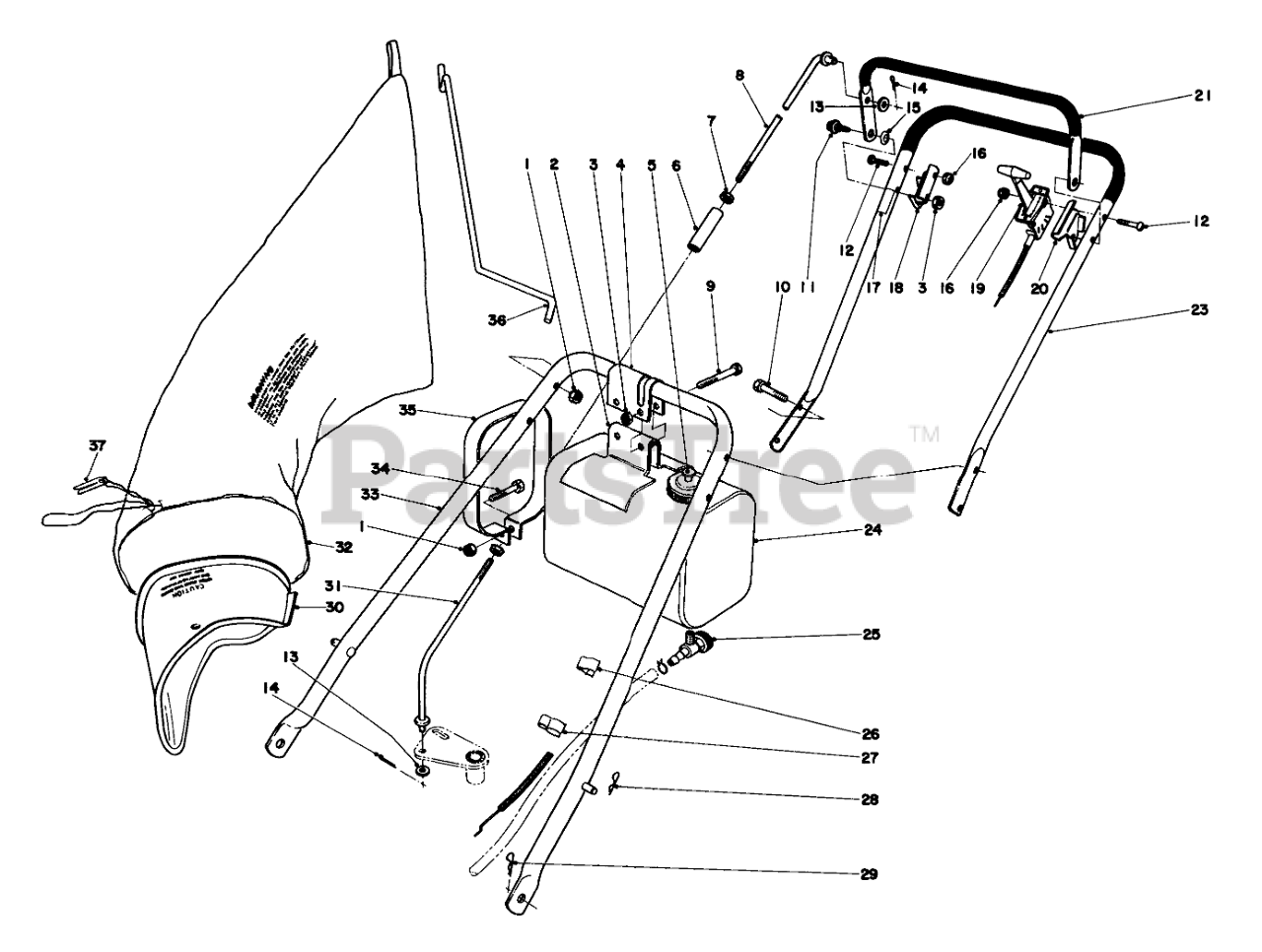

HANDLE ASSEMBLY S.P. MODELS 23144 & 23123 Parts Diagram

  • Title

1

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

2

Toro 3-6345

FUEL TANK BRACKET

$

$

Not available

3

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

4

Toro 22-5060

Clamp

$

$

Not available

5

Toro 222-15

Cap

$

$

Not available

6

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

7

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

8

Toro 3-6478

Control Rod

$

$

Not available

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

11

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

12

Toro 3251-11

10-24X1-1/4 PAN HD MS

$

$

Not available

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

16

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 12-9230

Decal

$

$

Currently unavailable

18

Toro 3-7371

CONTROL BAIL BRACKET

$

$

Not available

20

Toro 3-7372

Bracket-Control Bail

$

$

Not available

21

Toro 19-7180

Control Bail

$

$

Not available

23

Toro 19-7210

Handle & Grip Assembly
(Superseded to 26-7840)

$181.99

$

Usually ships in 3-6 days

0

24

Toro 222-14

Tank
(Superseded to 52-2331)

$360.99

$

Usually ships in 3-6 days

0

25

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

26

Toro 5-0748

Clamp

$

$

Not available

27

Toro 3-5181

CLAMP

$

$

Not available

28

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

29

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

30

Toro 12-2320

BAG ATTACHMENT

$136.99

$

Usually ships in 3-6 days

0

31

Toro 3-6472

CONTROL ROD

$

$

Not available

33

Toro 22-5040

Lower Handle Assembly
(Superseded to 26-7830)

$200.99

$

Usually ships in 3-6 days

0

34

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 3-6346

TANK STRAP

$

$

Not available

37

Toro 3-2781

BAG CORD FASTENER

$6.99

$

Usually ships in 3-6 days

0

Toro 19-2590

Giant Bagging Kit

$

$

Currently unavailable
