23158 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Engine Briggs Stratton Model 130902-1162-01 2 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

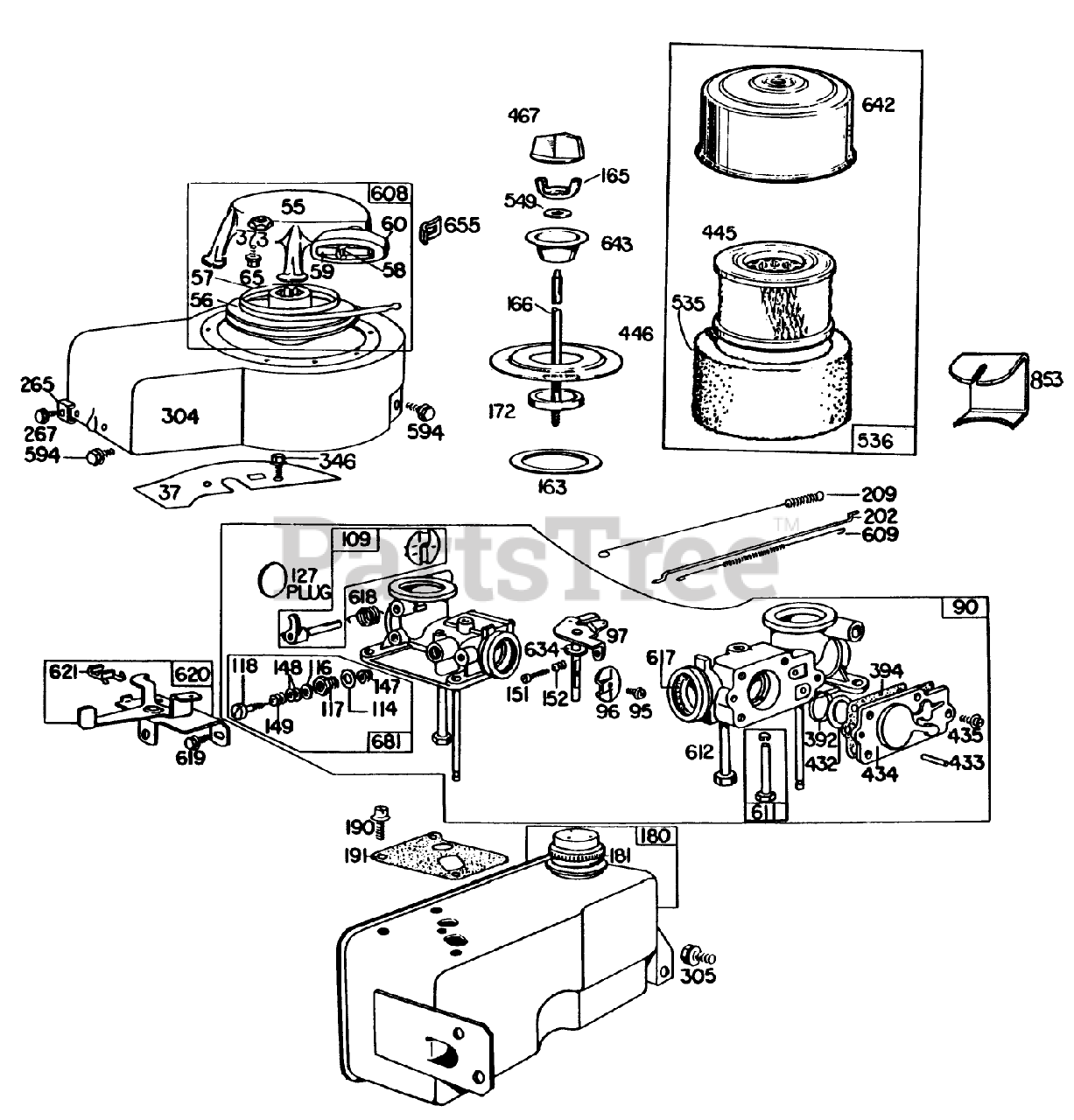

Engine Briggs Stratton Model 130902-1162-01 2 Parts Diagram

  • Title

37

Toro 222443

Guard-Flywheel

$

$

Currently unavailable

55

Toro 299431

Housing-Rewind Starter

$

$

Currently unavailable

56

Toro 295871

Pulley-Rewind

$

$

Currently unavailable

57

Toro 294303

Spring-Rewind

$

$

Currently unavailable

58

Toro 66884

Rope-Rewind

$

$

Currently unavailable

59

Toro 230228

Pin-Starter Grip

$

$

Currently unavailable

60

Toro 66728

See Supercession: 742562
(Superseded to 742562)

$

$

Not available

65

Toro 93067

Screw

$

$

Currently unavailable

90

Toro 299448

Carburetor Assembly

$

$

Currently unavailable

95

Toro 93499

Screw

$

$

Currently unavailable

96

Toro 211237

DISCONTINUED

$

$

Not available

97

Toro 299692

Shaft and Leaver

$

$

Currently unavailable

109

Toro 390076

OWNERS MANUAL - CODE390

$16.99

$

Usually ships in 3-6 days

0

114

Toro 66594

Gasket Valve Nut

$

$

Currently unavailable

116

Toro 65978

Packing-Needle

$

$

Currently unavailable

117

Toro 230590

Nut-Needle Valve

$

$

Currently unavailable

118

Toro 23433

Valve-Needle

$

$

Currently unavailable

127

Toro 22831

Plug-Welch

$

$

Currently unavailable

147

Toro 230591

Seat-Needle Valve

$

$

Currently unavailable

148

Toro 22235

Washer-Needle Valve

$

$

Currently unavailable

149

Toro 26336

Spring Needle Valve

$

$

Currently unavailable

151

Toro 93527

Screw-Rd. Hd.

$

$

Currently unavailable

152

Toro 260575

Spring-Adjustment

$

$

Currently unavailable

163

Toro 271139

Gasket-Air Cleaner

$

$

Currently unavailable

165

Toro 93856

Nut-Wing

$

$

Currently unavailable

166

Toro 231175

Stud-Air Cleaner

$

$

Currently unavailable

172

Toro 271077

Gasket-Air Cleaner

$

$

Currently unavailable

180

Toro 297257

Tank Assembly-Fuel

$

$

Currently unavailable

181

Toro 392304

Cap-Fuel Tank

$

$

Currently unavailable

190

Toro 93440

Screw-Fuel Tank

$

$

Currently unavailable

191

Toro 270073

Gasket-Fuel Tank Mtg.

Note: Included in Gasket Set Part No. 297616.

$

$

Currently unavailable

202

Toro 260654

Link-Throttle

$

$

Currently unavailable

209

Toro 261047

Spring-Gov.

Note: Included in Gasket Set Part No. 297616.

$

$

Currently unavailable

265

Toro 22372

Clamp-Casing

$

$

Currently unavailable

267

Toro 93469

Screw

$

$

Currently unavailable

304

Toro 392277

Housing-Blower

$

$

Currently unavailable

305

Toro 93158

Screw

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

373

Toro 92987

Nut

$

$

Currently unavailable

392

Toro 260455

Spring-Fuel Pump

$

$

Currently unavailable

394

Toro 270026

Diaphragm

$

$

Currently unavailable

432

Toro 221377

Cap-Spring

$

$

Currently unavailable

433

Toro 93265

Pin-Roll

$

$

Currently unavailable

434

Toro 210959

Cover-Diaphragm

$

$

Currently unavailable

435

Toro 93141

Screw

$

$

Currently unavailable

445

Toro 392308

Cartridge-Air Cleaner

$

$

Currently unavailable

446

Toro 222844

Base-Air Cleaner

$

$

Currently unavailable

467

Toro 212293

Knob-Air

$

$

Not available

535

Toro 270979

Element-Air Cleaner

$

$

Currently unavailable

536

Toro 392368

Cleaner Assy.-Air

$

$

Currently unavailable

549

Toro 271118

Washer-Air Cleaner

$

$

Currently unavailable

594

Toro 93559

Screw

$

$

Currently unavailable

608

Toro 390463

Starter-Rewind

$

$

Currently unavailable

609

Toro 260029

Spring-Throttle Link

$

$

Currently unavailable

611

Toro 391813

Tube-Pick-Up

$

$

Currently unavailable

612

Toro 296811

Pipe-Fuel

$

$

Currently unavailable

617

Toro 280393

O-Ring Seal

$

$

Currently unavailable

618

Toro 260648

Spring-Choke Return

$

$

Currently unavailable

619

Toro 93380

Screw-Control Plate Mtg.

$

$

Currently unavailable

620

Toro 297548

Plate Assy.-Carburetor Control

$

$

Currently unavailable

621

Toro 297472

Switch-Stop

$

$

Currently unavailable

634

Toro 270167

Washer (Felt)

$

$

Currently unavailable

642

Toro 222626

Cover Air Cleaner

$

$

Currently unavailable

643

Toro 222845

Cup-Air Cleaner

$

$

Currently unavailable

655

Toro 222598

Anchor Spring

$

$

Currently unavailable

681

Toro 299060

Kit-Needle Valve

$

$

Currently unavailable

853

Toro 394850

Brace-Air Cleaner

$

$

Currently unavailable
