23160 - Toro Backhoe for Dingo Compact Utility Loader (SN: 240000146 - 240999999) (2004)

Backhoe for Dingo Compact Utility Loader

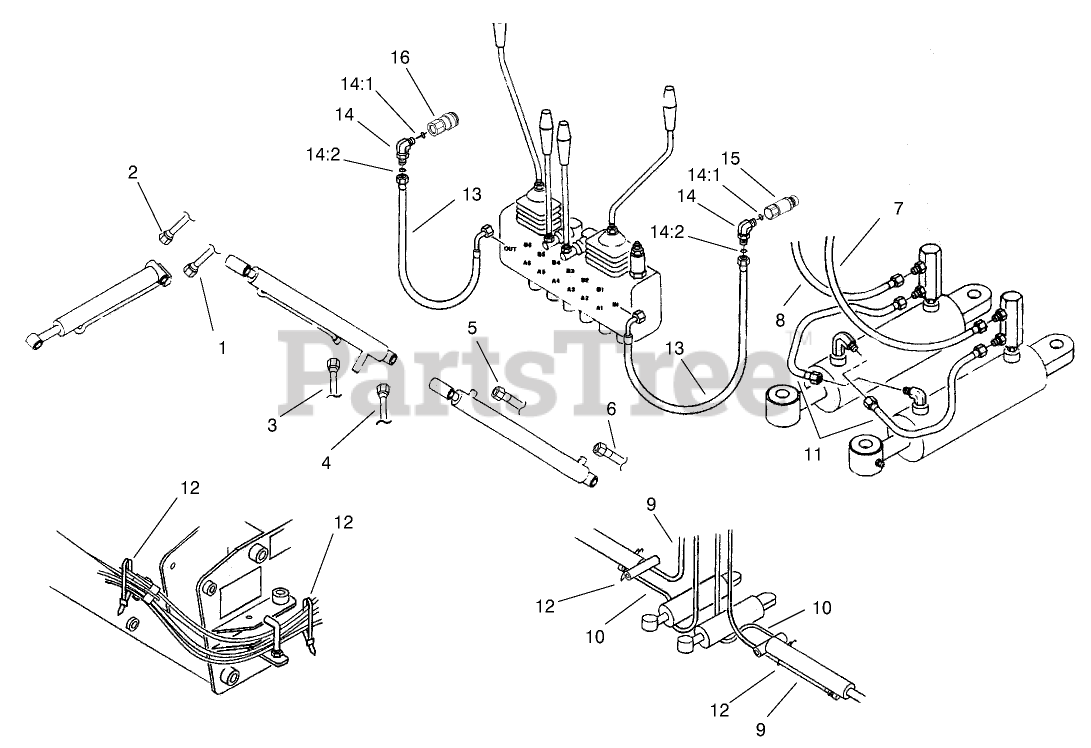

23160 - Toro Backhoe for Dingo Compact Utility Loader (SN: 240000146 - 240999999) (2004) > Parts Diagrams (7) > HYDRAULIC ASSEMBLY

  • Title
100-7188

1

HYD HOSE ASM

Part# 100-7188

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $876.72

100-7189

2

HYD HOSE ASM

Part# 100-7189

OEM Warranty Repair Part for Toro

Not available

100-7190

3

HYD HOSE ASM

Part# 100-7190

OEM Warranty Repair Part for Toro

Not available

100-7191

4

HYD HOSE ASM

Part# 100-7191

OEM Warranty Repair Part for Toro

Not available

100-7192

5

HYD HOSE ASM

Part# 100-7192

OEM Warranty Repair Part for Toro

Not available

100-7193

6

HYD HOSE ASM

Part# 100-7193

OEM Warranty Repair Part for Toro

Not available

100-7194

7

HYD HOSE ASM

Part# 100-7194

OEM Warranty Repair Part for Toro

Not available

100-7195

8

HYD HOSE ASM

Part# 100-7195

OEM Warranty Repair Part for Toro

Not available

100-7196

9

HYD HOSE ASM

Part# 100-7196

OEM Warranty Repair Part for Toro

Not available

100-7197

10

HYD HOSE ASM

Part# 100-7197

OEM Warranty Repair Part for Toro

Not available

100-7198

11

HYD HOSE ASM

Part# 100-7198

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $246.75

3334-945

12

TIE-CABLE

Part# 3334-945

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.94

105-4147

13

HYD HOSE ASM

Part# 105-4147

OEM Warranty Repair Part for Toro

Not available

340-105

14

FITTING-ELBOW 90

Part# 340-105

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $31.57

237-80

14:1

O-RING

Part# 237-80

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.47

237-30

14:2

O-RING

Part# 237-30

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

100-4701

15

NIPPLE-CONNECT, PRESSURE

Part# 100-4701

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $195.67

100-6120

15:1

SEAL KIT

Part# 100-6120

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $72.85

104-6134

16

COUPLER-FACE, FLUSH

Part# 104-6134

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $184.92

105-8396

16:1

SEAL KIT

Part# 105-8396 (Superseded to 106-7692)

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $166.53
