23160 - Toro Backhoe for Dingo Compact Utility Loader (SN: 240000146 - 240999999) (2004)

Backhoe for Dingo Compact Utility Loader

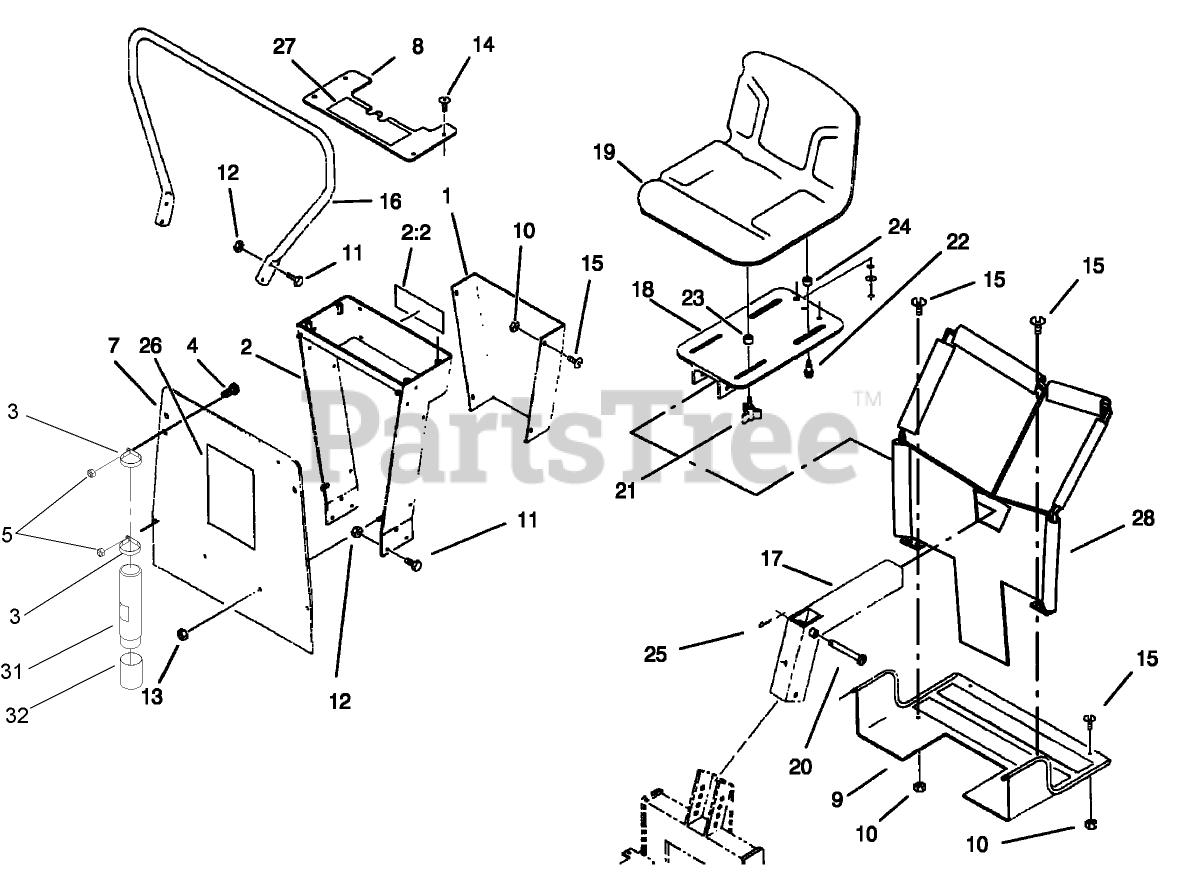

23160 - Toro Backhoe for Dingo Compact Utility Loader (SN: 240000146 - 240999999) (2004) > Parts Diagrams (7) > SEAT AND MOUNTING ASSEMBLY

  • Title
100-7166

1

GUARD-HOSE

Part# 100-7166

OEM Warranty Repair Part for Toro

Not available

100-7207

2

VALVE MOUNT ASM

Part# 100-7207

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $982.83

100-4133

2:2

DECAL-WARNING

Part# 100-4133

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $96.15

2412-120

3

CLAMP-R

Part# 2412-120

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.68

32104-19

4

SCREW

Part# 32104-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.07

3296-2

5

NUT-LOCK, NI

Part# 3296-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.22

100-7165

7

PANEL-FRONT

Part# 100-7165

OEM Warranty Repair Part for Toro

Not available

100-7169

8

COVER-VALVE

Part# 100-7169

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $74.85

100-7162

9

FOOT PLATE ASM

Part# 100-7162

OEM Warranty Repair Part for Toro

Not available

32146-17

10

NUT-LOCK

Part# 32146-17 (Superseded to 3296-42)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.34

322-3

11

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.66

3296-29

12

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.78

3296-17

13

NUT-LOCK, NI

Part# 3296-17 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

3258-2

14

SCREW

Part# 3258-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.50

3290-133

15

SCREW

Part# 3290-133

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.44

100-7167

16

HANDLE-GUARD

Part# 100-7167

OEM Warranty Repair Part for Toro

Not available

100-7157

17

SEAT MOUNT ASM

Part# 100-7157

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $571.32

100-7158

18

SEAT PLATE ASM

Part# 100-7158

OEM Warranty Repair Part for Toro

Not available

88-3950

19

SEAT

Part# 88-3950 (Superseded to 88-4330)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $277.17

100-7208

20

PIN-CLEVIS

Part# 100-7208

OEM Warranty Repair Part for Toro

Not available

700806

21

KNOB

Part# 700806

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.07

92-6986

22

BOLT-SHOULDER

Part# 92-6986

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.68

92-6750

23

SPACER-NYLON

Part# 92-6750

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.60

109989

24

SPACER-NYLON

Part# 109989

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.62

3272-31

25

PIN-COTTER

Part# 3272-31

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.26

62-7400

26

DECAL

Part# 62-7400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.41

100-4138

27

DECAL-PANEL, CONTROL

Part# 100-4138

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $96.15

106-7630

28

BACKHOE SHIELD KIT

Part# 106-7630 (Superseded to 112-2532)

OEM Warranty Repair Part for Toro

Not available

104-7050

31

TUBE-MANUAL

Part# 104-7050

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.82

104-7048

32

CAP-HOUSING

Part# 104-7048

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.03
