23163 - Toro Backhoe for Dingo Compact Utility Loader (SN: 311000001 - 311999999) (2011) BOOM ASSEMBLY Parts Diagram

Backhoe for Dingo Compact Utility Loader

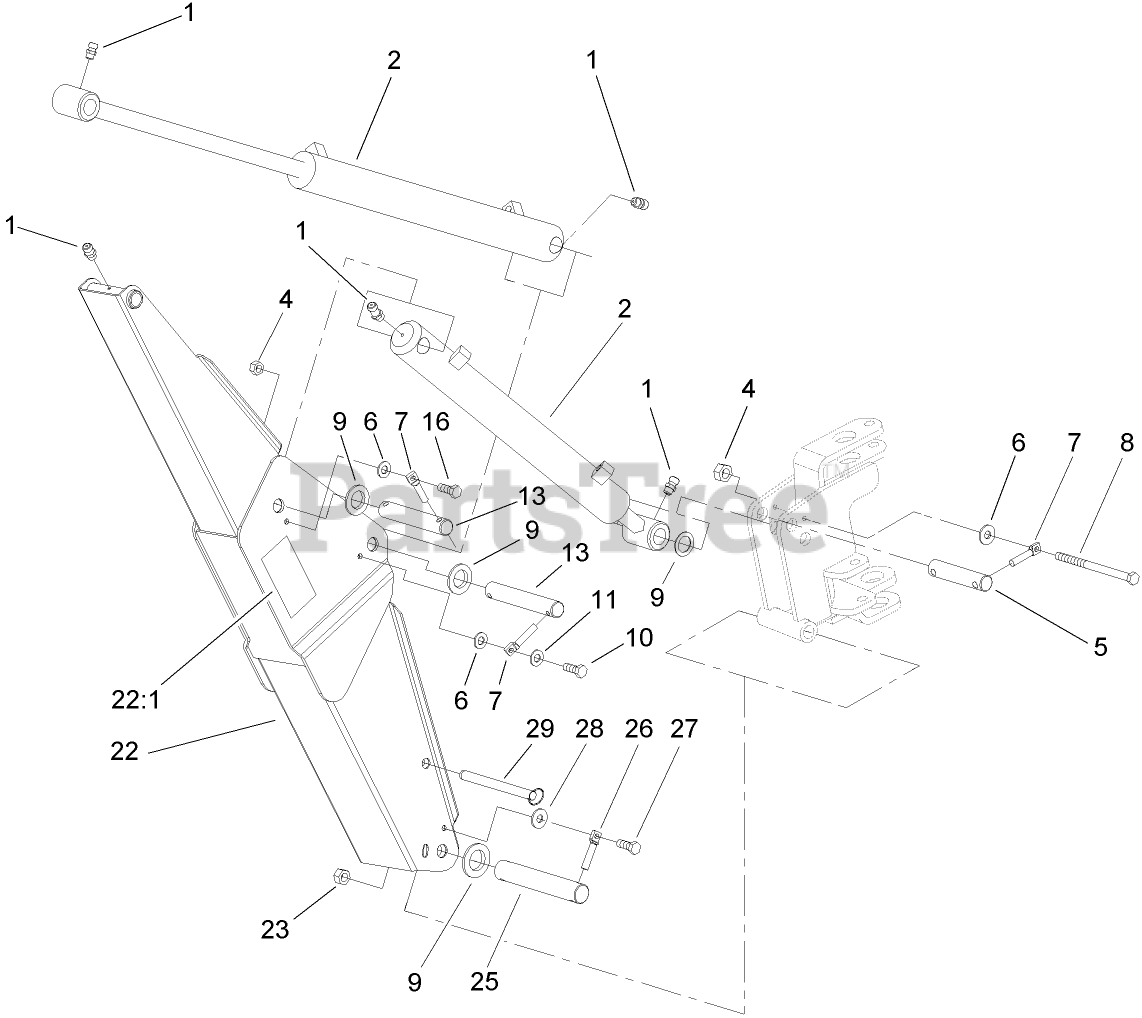

BOOM ASSEMBLY Parts Diagram

  • Title

1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2

Toro 107-9472

HYDRAULIC CYLINDER ASM

$2769.99

$

Usually ships in 3-6 days

0

4

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, only 4 left!

0

5

Toro 108-5651

PIN-PIVOT

$165.99

$

Usually ships in 3-6 days

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 107-9340

PIN-RETAINER, SMALL

$

$

Not available

8

Toro 105-3692

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

9

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

10

Toro 3210-6

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

11

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 108-5653

PIN-PIVOT

$151.99

$

Usually ships in 3-6 days

0

16

Toro 3210-3

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

22

Toro 107-9494

BOOM ASM

$5087.99

$

Usually ships in 3-6 days

0

22:1

Toro 100-4132

DECAL-WARNING

$72.99

$

Usually ships in 3-6 days

0

23

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

25

Toro 108-5664

PIN-PIVOT

$116.99

$

Usually ships in 3-6 days

0

26

Toro 107-9341

PIN-RETAINER, LARGE

$15.99

$

Usually ships in 3-6 days

0

27

Toro 323-46

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 107-9343

PIN-HITCH

$98.99

$

Usually ships in 3-6 days

0
