23176 - Toro 30" Grapple Bucket for Compact Tool Carriers (SN: 323000001 - 999999999) (2023) 30in Grapple Bucket Assembly Parts Diagram

30" Grapple Bucket for Compact Tool Carriers

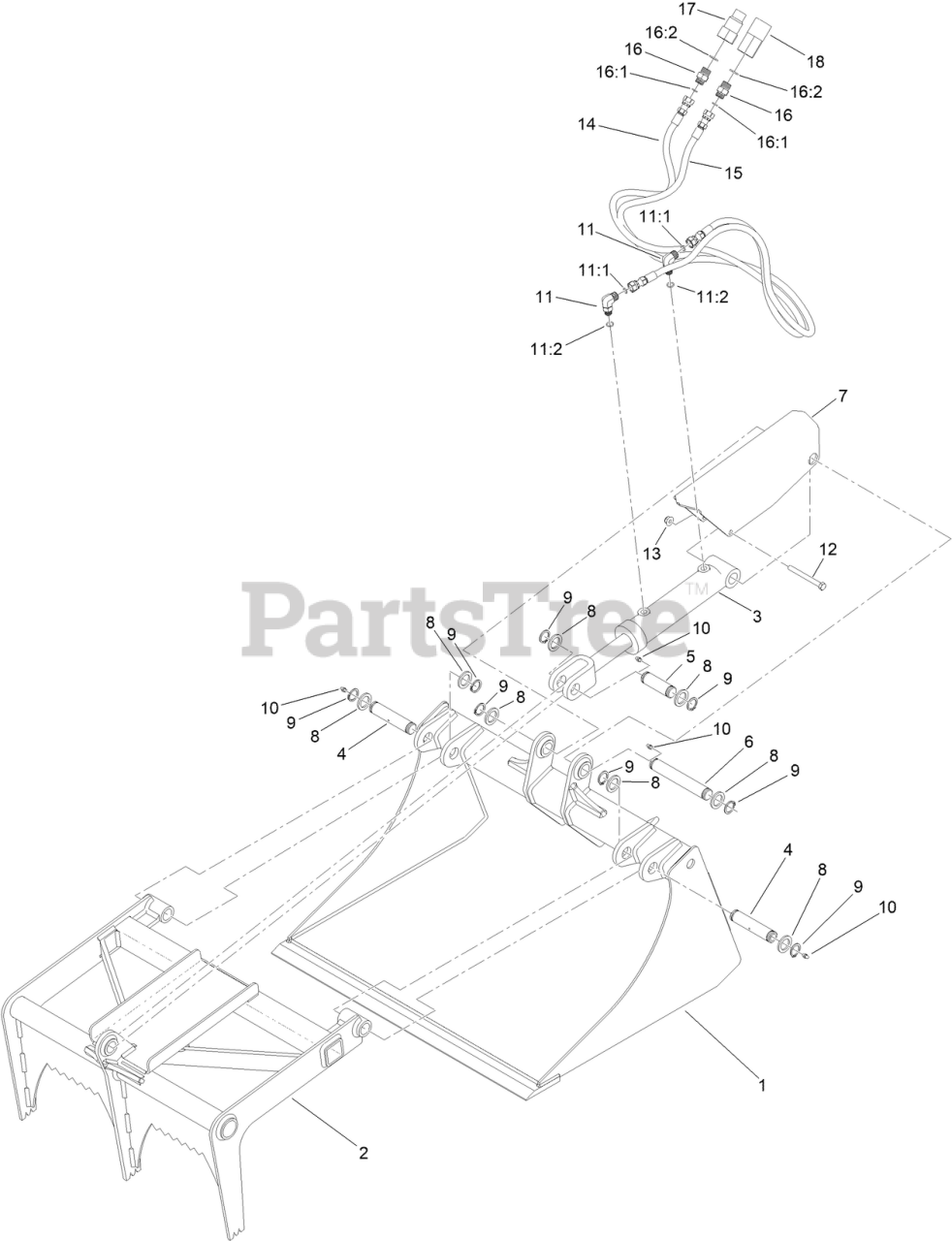

30in Grapple Bucket Assembly Parts Diagram

  • Title

1

Toro 161-1061

BUCKET-GRAPPLE, 30"

$

$

Currently unavailable

2

Toro 161-1059

JAW-GRAPPLE, 30"

$

$

Currently unavailable

3

Toro 139-7173

CYLINDER-HYD

$1165.99

$

Usually ships in 3-6 days

0

4

Toro 139-7175

PIN-PIVOT

$35.99

$

Usually ships in 3-6 days

0

5

Toro 139-7176

PIN-PIVOT

$33.99

$

Usually ships in 3-6 days

0

6

Toro 137-8968

PIN-HINGE

$44.99

$

Usually ships in 3-6 days

0

7

Toro 138-9935

GUARD - GRPL BUCKET

$

$

Currently unavailable

8

Toro 131-8570

SPACER-HARDENED

$3.49

$

In Stock, only 2 left!

0

9

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

10

Toro 137-9002

FITTING-ZERK

$0.99

$

Usually ships in 3-6 days

0

11

Toro 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 2 left!

0

11:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

12

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.99

$

In Stock, only 2 left!

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 145-4456

HYD HOSE ASM

$167.99

$

Usually ships in 3-6 days

0

15

Toro 145-4455

HYD HOSE ASM

$187.99

$

Usually ships in 3-6 days

0

16

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 2 left!

0

16:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

17

Toro 139-7168

COUPLER-MALE

$155.99

$

Usually ships in 3-6 days

0

18

Toro 139-7167

COUPLER-FEMALE

$242.99

$

Usually ships in 3-6 days

0
