23177 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1976) Handle Assembly Parts Diagram

Walk-Behind Mower

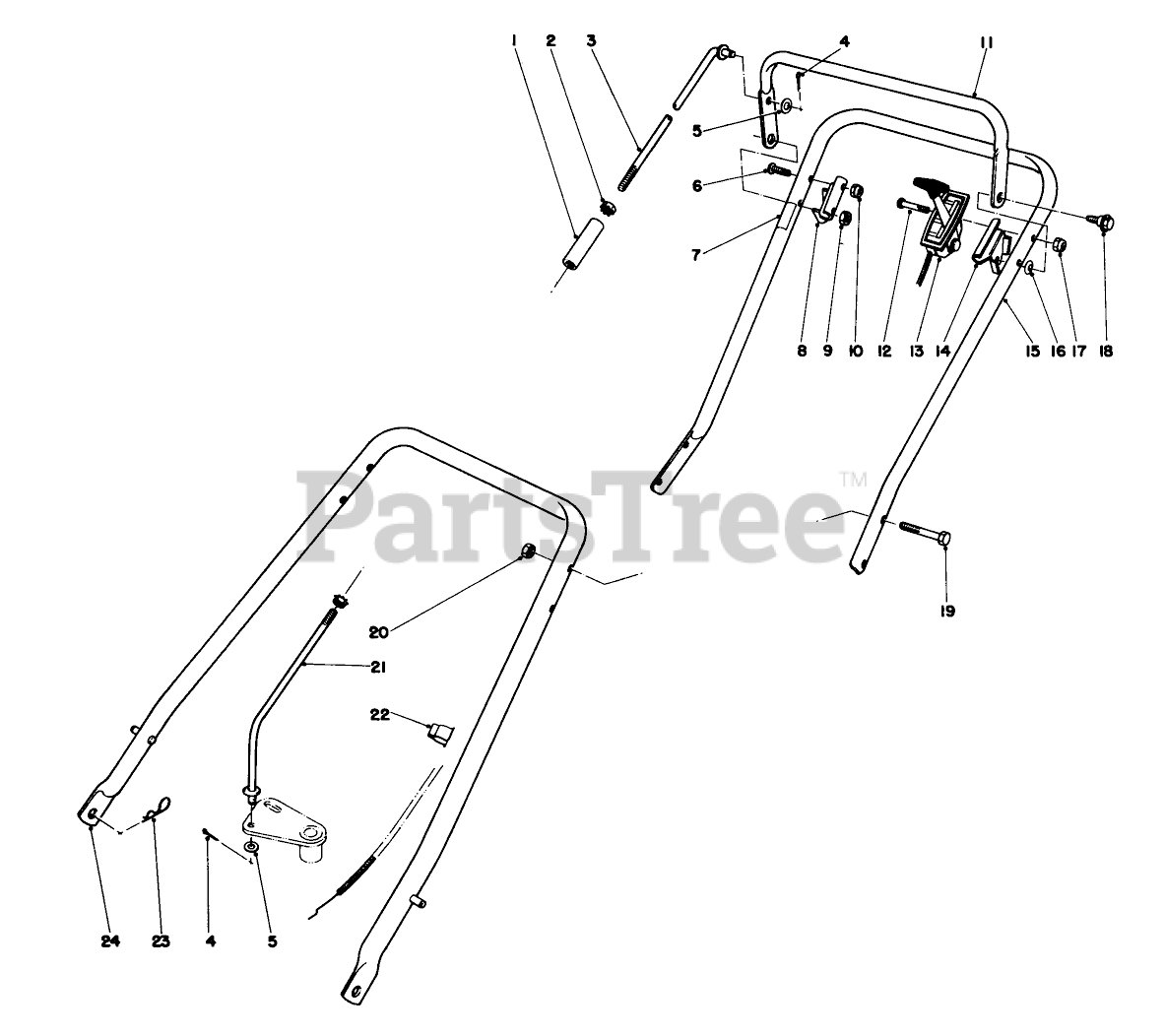

Handle Assembly Parts Diagram

  • Title

1

Toro 3-6481

DISCONTINUED

$

$

Not available

2

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, only 1 left!

0

3

Toro 3-6478

DISCONTINUED

$

$

Not available

4

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 10

0

6

Toro 3251-11

DISCONTINUED

$

$

Not available

7

Toro 12-9230

Decal

$

$

Currently unavailable

8

Toro 3-7371

DISCONTINUED

$

$

Not available

9

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

11

Toro 19-7180

DISCONTINUE

$

$

Not available

12

Toro 3251-11

DISCONTINUED

$

$

Not available

13

Toro 26-8770

DISCONTINUED

$

$

Not available

14

Toro 3-7372

DISCONTINUED

$

$

Not available

15

Toro 26-7840

UPPER HANDLE

$240.99

$

Usually ships in 3-6 days

0

16

Toro 3290-211

WASHER-SPRING

$6.49

$

Usually ships in 3-6 days

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

18

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

19

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

20

Toro 32146-17

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

21

Toro 3-6472

DISCONTINUED

$

$

Not available

22

Toro 5-0748

DISCONTINUED

$

$

Not available

23

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

24

Toro 26-7830

LOWER HANDLE WA

$266.99

$

Usually ships in 3-6 days

0
