232 L - Husqvarna String Trimmer (2002-09) Gear Head Parts Diagram

String Trimmer

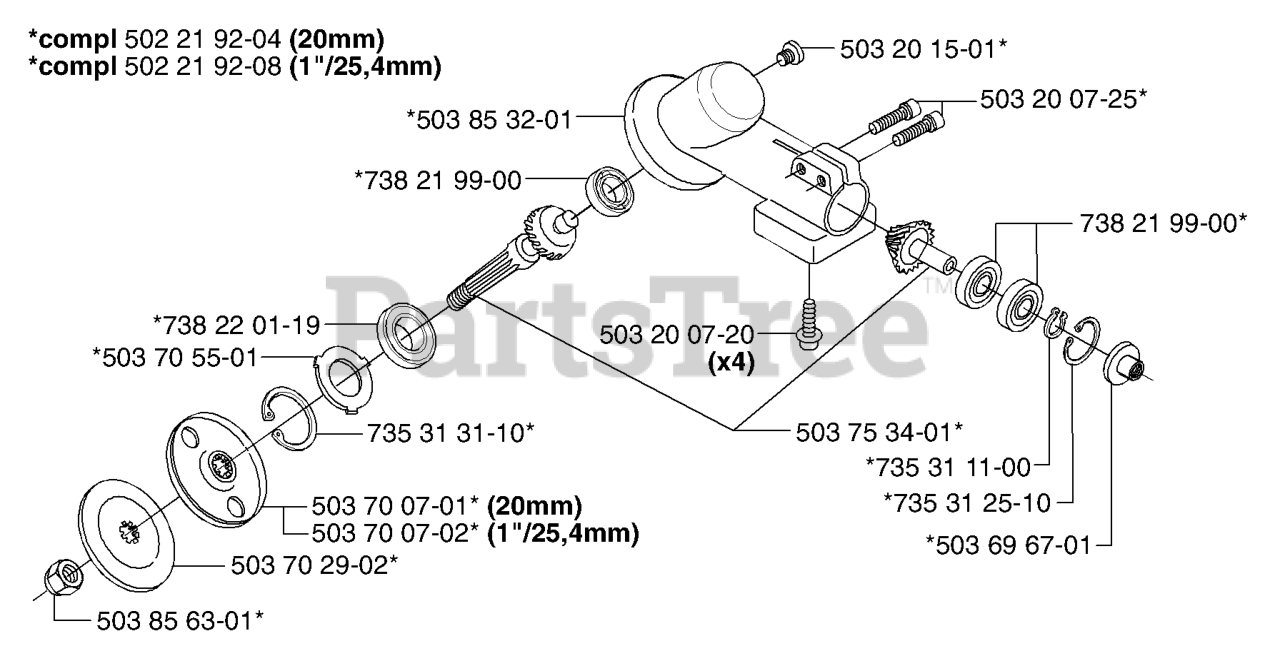

Gear Head Parts Diagram

  • Title

502219204

Husqvarna 502219204

BEVEL GEAR
(Superseded to 502219208)

Note: Compl; (20mm)

$

$

Not available

502219208

Husqvarna 502219208

GEAR HEAD

Note: Compl; (1"/25,4mm)

$

$

Not available

503200720

Husqvarna 503200720

SCREW
(Superseded to 503200220)

$5.49

$

In Stock, Qty 8

0

503200725

Husqvarna 503200725

SCREW

$3.99

$

In Stock, Qty 11

0

503201501

Husqvarna 503201501

PLUG

$7.49

$

In Stock, Qty 5

0

503696701

Husqvarna 503696701

CONNECTOR

$

$

Not available

503700701

Husqvarna 503700701

DRIVER

Note: (20mm)

$65.99

$

In Stock, only 4 left!

0

503700702

Husqvarna 503700702

CARRIER

Note: (1"/25,4mm)

$

$

Not available

503702902

Husqvarna 503702902

FLANGE

$27.99

$

Usually ships in 3-10 days

0

503705501

Husqvarna 503705501

WASHER

$8.49

$

In Stock, only 1 left!

0

503753401

Husqvarna 503753401

GEAR SET
(Superseded to 502219208)

$

$

Not available

503853201

Husqvarna 503853201

GEAR HOUSING

$89.99

$

In Stock, only 1 left!

0

503856301

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.99

$

In Stock, only 4 left!

0

735311100

Husqvarna 735311100

RETAINING RING

$3.99

$

In Stock, only 2 left!

0

735312510

Husqvarna 735312510

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

735313110

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 2 left!

0

738219900

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$10.99

$

In Stock, only 3 left!

0

738220119

Husqvarna 738220119

BALL BEARING 6201-2RS1
(Superseded to 503252301)

$8.49

$

In Stock, only 2 left!

0
