23201 - Toro 25" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 002000001 - 002999999) (1972) Carburetor Model No. 631115 Parts List Parts Diagram

25" Whirlwind Hevi-Duty Walk-Behind Mower

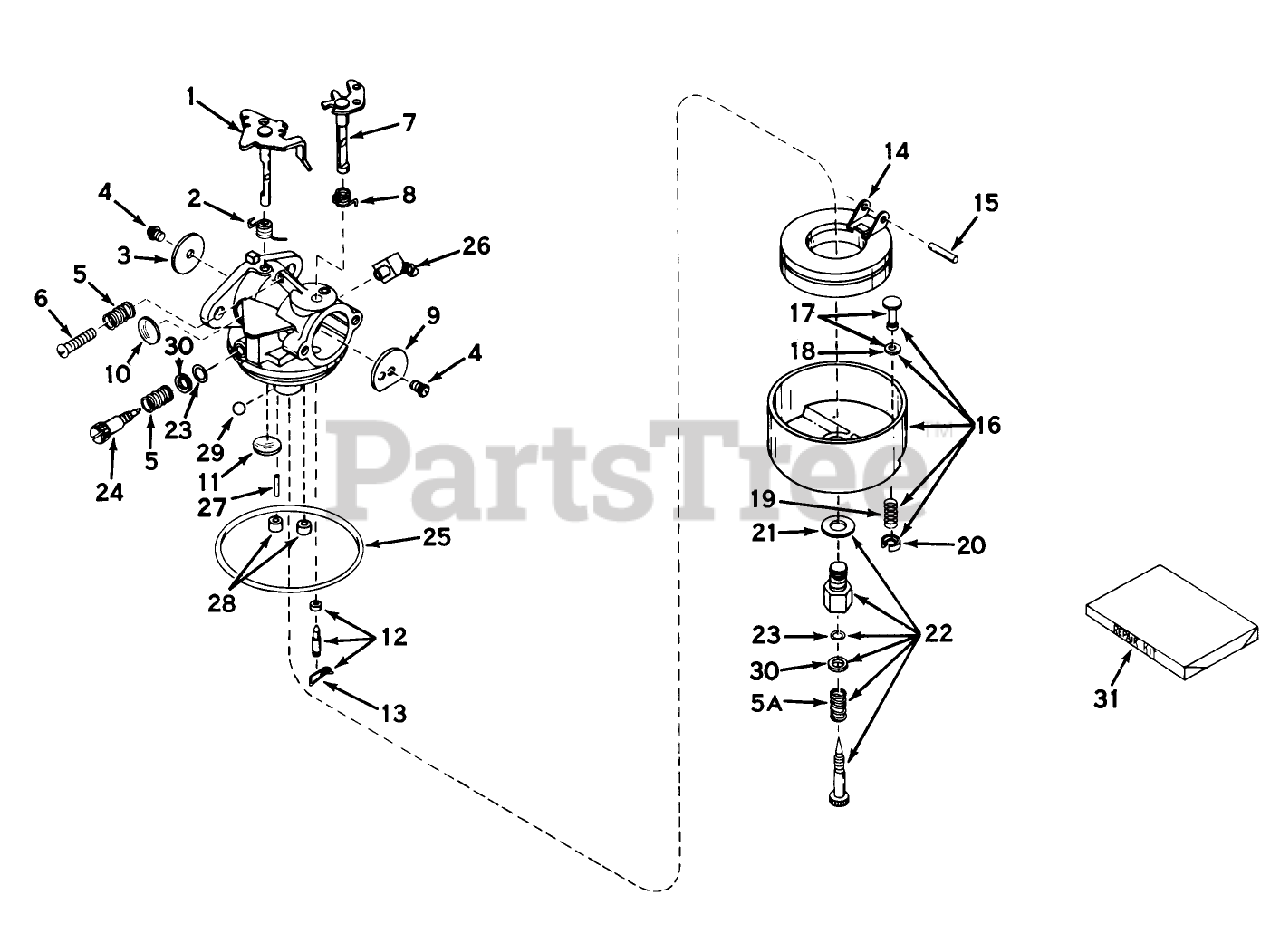

Carburetor Model No. 631115 Parts List Parts Diagram

  • Title

1

Toro 31834

Shaft/Lever-Throttle

$

$

Currently unavailable

2

Toro 630731

Spring, Return

$

$

Currently unavailable

3

Toro 631036

Shutter-Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

5A

Toro 630738

Spring

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 630973

Shaft Lever Assy., Choke

$

$

Currently unavailable

8

Toro 630821

Spring, Choke return

$

$

Currently unavailable

9

Toro 6301037

Shutter, Choke

$

$

Currently unavailable

10

Toro 630748

Plug-Welch, Idle Mixture Well

$

$

Currently unavailable

11

Toro 631027

Plug-Welch, Atmospheric Vent

$

$

Currently unavailable

12

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

Note: Included in repair kit Num 631029.

$

$

Currently unavailable

13

Toro 631022

Clip-Spring

$

$

Currently unavailable

14

Toro 631023

Float,Carburetor

$

$

Currently unavailable

15

Toro 631024

Shaft-Float

Note: Included in repair kit Num 631029.

$

$

Currently unavailable

16

Toro 631025

Bowl Drain Assy., Float (Incl. No. 17)

$

$

Currently unavailable

17

Toro 27136

Plunger Assy., Drain (Incl. Ref. 18)

$

$

Currently unavailable

18

Toro 27554

Gasket-Plunger, Drain

$

$

Currently unavailable

19

Toro 27137

Spring, Drain Plunger

$

$

Currently unavailable

20

Toro 27138

Retainer, Plunger Spring

$

$

Currently unavailable

21

Toro 27110

Washer-Bowl Nut

Note: Included in repair kit Num 631029.

$

$

Currently unavailable

22

Toro 631026

Adjustment Screw Assy., Main (Incl. Nos. 5A, 21 23)

Note: Included in repair kit Num 631029.

$

$

Currently unavailable

23

Toro 630740

ORing

$

$

Currently unavailable

24

Toro 631078

Screw, Idle Adj.

Note: Included in repair kit Num 631029.

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

Note: Included in repair kit Num 631029.

$

$

Currently unavailable

26

Toro 631133

Fitting, Fuel Inlet

$

$

Currently unavailable

27

Toro 631039

Pin

$

$

Currently unavailable

28

Toro 630747

Plug, Cup

$

$

Currently unavailable

29

Toro 631081

BalI, Steel

$

$

Currently unavailable

30

Toro 630739

Washer

$

$

Currently unavailable

31

Toro 631029

Repair Kit

$

$

Currently unavailable
