23208 HD (STX-26) - Toro Stump Grinder (SN: 400000000 - 415097599) Battery and Electrical Assembly Parts Diagram

Stump Grinder

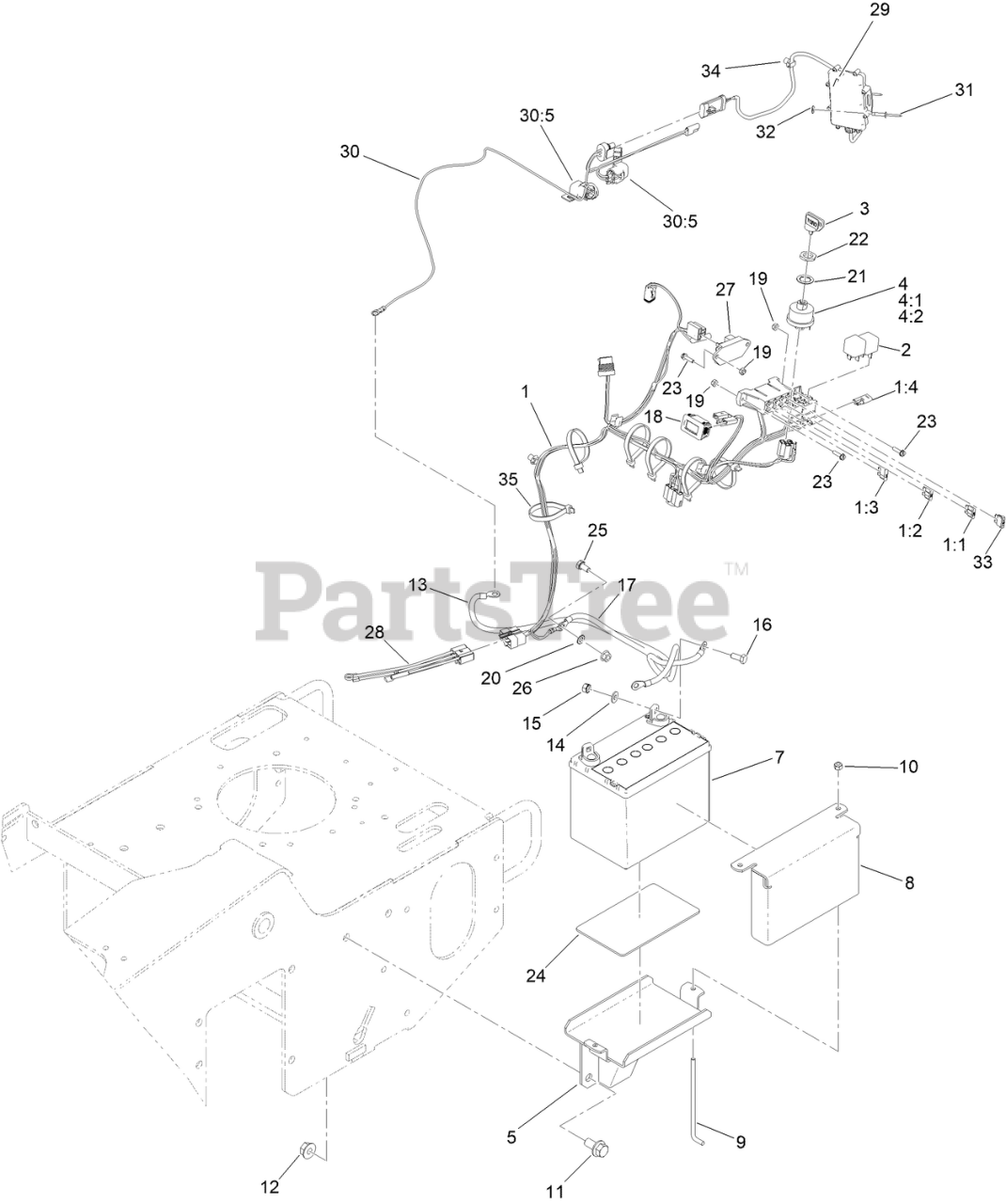

Battery and Electrical Assembly Parts Diagram

  • Title

1

Toro 119-4555

HARNESS-WIRE

$409.99

$

In Stock, only 1 left!

0

1:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.49

$

In Stock, Qty 10

0

1:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, only 1 left!

0

1:3

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 6

0

1:4

Toro 116-0053

CAP-PLUG

$38.99

$

Usually ships in 3-6 days

0

2

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 12

0

3

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Toro 88-9830

See Supercession: 104-2541
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 20+

0

4:1

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

4:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

5

Toro 105-3150-01

TRAY-BATTERY

$116.99

$

Usually ships in 3-6 days

0

7

Toro 99-7421

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

8

Toro 115-6621-03

PLATE-HOLD DOWN, BATTERY

$74.99

$

Usually ships in 3-6 days

0

9

Toro 104-8567

HOLDOWN-BATTERY

$27.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

12

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 14

0

13

Toro 106-8945

CABLE-BATTERY, POSITIVE

$39.99

$

Usually ships in 3-6 days

0

14

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 117-6422

CABLE-BATTERY, BLACK

$32.99

$

Usually ships in 3-6 days

0

18

Toro 120-2244

HOURMETER

$67.99

$

In Stock, Qty 7

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

21

Toro 107-1572

See Supercession: 3254-5
(Superseded to 3-2545)

$

$

Not available

22

Toro 107-1571

See Supercession: 218-461
(Superseded to 218-461)

$3.99

$

In Stock, Qty 18

0

23

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

24

Toro 62-4300

PAD-SKID, ANTI

$18.99

$

Usually ships in 3-6 days

0

25

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 8

0

26

Toro 33004-00

NUT-HF

$0.99

$

In Stock, only 3 left!

0

27

Toro 100-6170

MODULE-DELAY

$59.99

$

In Stock, only 3 left!

0

28

Toro 119-4604

HARNESS

$54.99

$

Usually ships in 3-6 days

0

29

Toro 131-0560

GPS ASM

$2223.99

$

Usually ships in 3-6 days

0

30

Toro 131-0567

HARNESS-WIRE, GPS

$108.99

$

Usually ships in 3-6 days

0

30:4

Toro 121-8864

FUSE-MINI BLADE, 5 AMP

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0

30:5

Toro 32180-101

COVER-FUSE, SINGLE

$12.99

$

Usually ships in 3-6 days

0

31

Toro 103-0138

RIVET-POP

$1.49

$

In Stock, Qty 19

0

32

Toro 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

33

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

34

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

35

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
