23214 (STX-38) - Toro EFI Stump Grinder with Intelli-Sweep (SN: 314000001 - 314999999) (2014) GRINDER HEAD ASSEMBLY Parts Diagram

EFI Stump Grinder with Intelli-Sweep

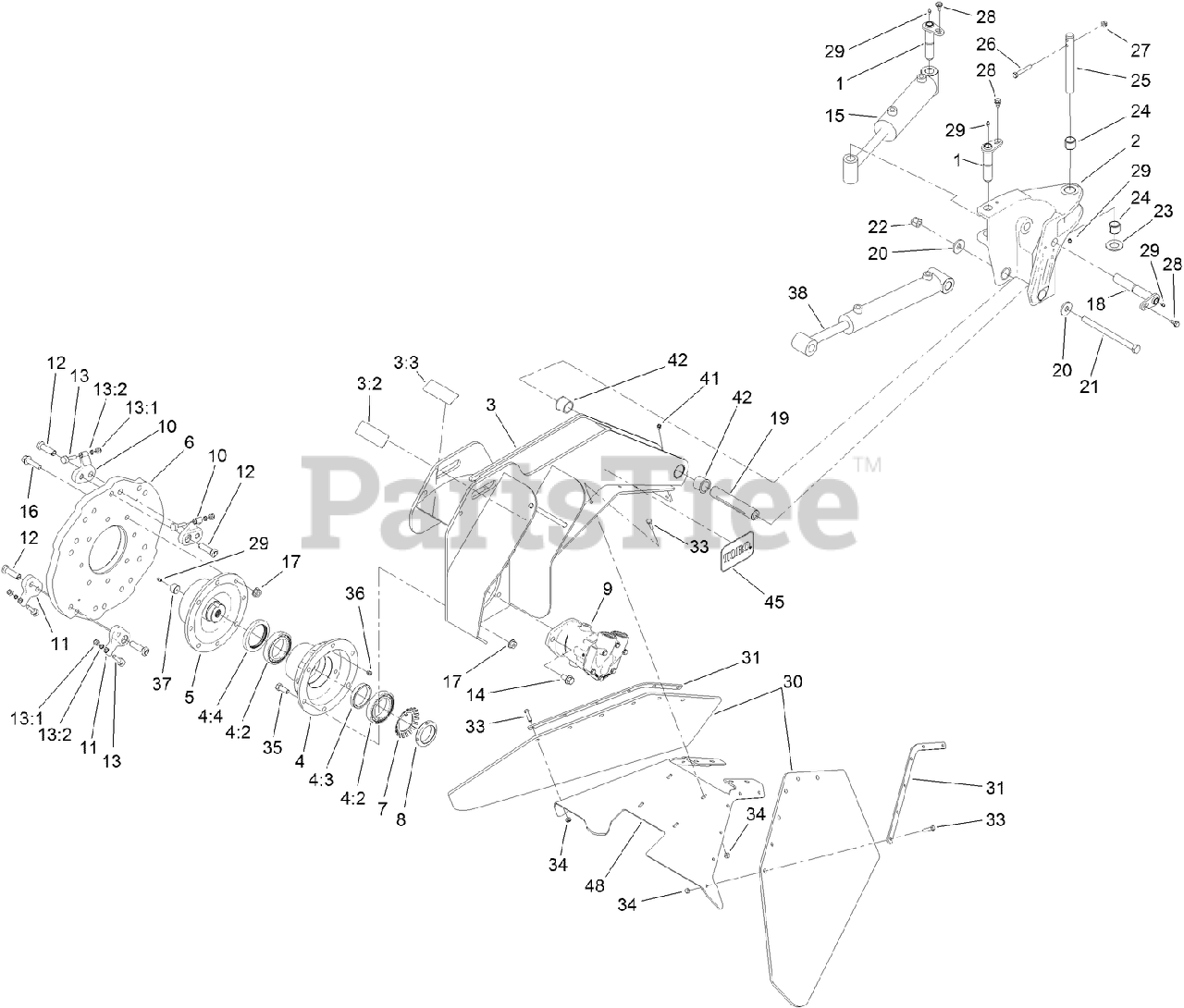

GRINDER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 121-1113

PIN-PIVOT

$103.99

$

Usually ships in 3-6 days

0

2

Toro 121-4565-01

HEAD-PIVOT

$1465.99

$

Usually ships in 3-6 days

0

3

Toro 121-4575

GRINDER HEAD ASM

$2708.99

$

Usually ships in 3-6 days

0

3:2

Toro 93-7321

DECAL-DANGER

$31.99

$

Usually ships in 3-6 days

0

3:3

Toro 107-9366

DECAL-WARNING

$37.99

$

Usually ships in 3-6 days

0

4

Toro 121-4458

WHEEL BEARING HOUSING ASM

$939.99

$

Usually ships in 3-6 days

0

4:2

Toro 121-4378

BEARING-BALL

$75.99

$

Usually ships in 3-6 days

0

4:3

Toro 121-0872

SPACER-BEARING

$75.99

$

Usually ships in 3-6 days

0

4:4

Toro 121-4379

SEAL-GREASE

$165.99

$

Usually ships in 3-6 days

0

5

Toro 121-4337

SHAFT-CUTTER

$

$

Currently unavailable

6

Toro 121-1012-03

PLATE-WHEEL, CUTTER

$845.99

$

Usually ships in 3-6 days

0

7

Toro 104-5915

WASHER-LOCK, BEARING

$68.99

$

Usually ships in 3-6 days

0

8

Toro 104-1973

NUT-LOCK, BEARING

$88.99

$

Usually ships in 3-6 days

0

9

Toro 121-4325

HYD MOTOR ASM

$2660.99

$

Usually ships in 3-6 days

0

10

Toro 115-9384

POCKET-ANGLED

$61.99

$

In Stock, only 3 left!

0

11

Toro 115-9388

POCKET-STRAIGHT

$61.99

$

In Stock, only 3 left!

0

12

Toro 121-4318

BOLT-HSH

$15.99

$

Usually ships in 3-6 days

0

13

Toro 115-9385

GRINDER TOOTH ASM

$25.99

$

In Stock, Qty 20+

0

13:1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13:2

Toro 121-4365

SPACER-TOOTH

$1.99

$

In Stock, Qty 11

0

14

Toro 3234-6

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

15

Toro 121-1956

HYD CYLINDER ASM
(Superseded to 137-8829)

$911.99

$

Usually ships in 3-6 days

0

16

Toro 3234-27

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

17

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 17

0

18

Toro 121-0860

PIN-PIVOT

$134.99

$

Usually ships in 3-6 days

0

19

Toro 121-4571

SPACER-PIVOT

$273.99

$

Usually ships in 3-6 days

0

20

Toro 104-9216

WASHER-HARDENED

$7.49

$

In Stock, only 2 left!

0

21

Toro 117-6327

BOLT-HH

$50.99

$

In Stock, only 1 left!

0

22

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 256-121

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

24

Toro 98-4871

BUSHING-TENSION

$25.99

$

In Stock, only 2 left!

0

25

Toro 121-1112

PIN-PIVOT, GRINDER

$78.99

$

Usually ships in 3-6 days

0

26

Toro 323-47

SCREW-HH

$5.99

$

In Stock, only 2 left!

0

27

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, only 4 left!

0

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

30

Toro 121-4557

SHIELD-CHIP

$256.99

$

Usually ships in 3-6 days

0

31

Toro 121-4558-03

PLATE-CLAMP,CHIP
(Superseded to 140-3603-03)

$47.99

$

Usually ships in 3-6 days

0

33

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

36

Toro 302-34

FITTING-LUBE

$12.99

$

Usually ships in 3-6 days

0

37

Toro 121-0875

PLUG-SHAFT, CUTTER

$55.99

$

Usually ships in 3-6 days

0

38

Toro 121-1955

HYD CYLINDER ASM

$1033.99

$

Usually ships in 3-6 days

0

41

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

Usually ships in 3-6 days

0

42

Toro 104-0015

BUSHING-FLANGE

$7.49

$

Usually ships in 3-6 days

0

45

Toro 104-3989

DECAL

$64.99

$

In Stock, only 4 left!

0

48

Toro 121-4548-03

PLATE-MOUNT,GUARD
(Superseded to 140-3601-03)

$442.99

$

Usually ships in 3-6 days

0
