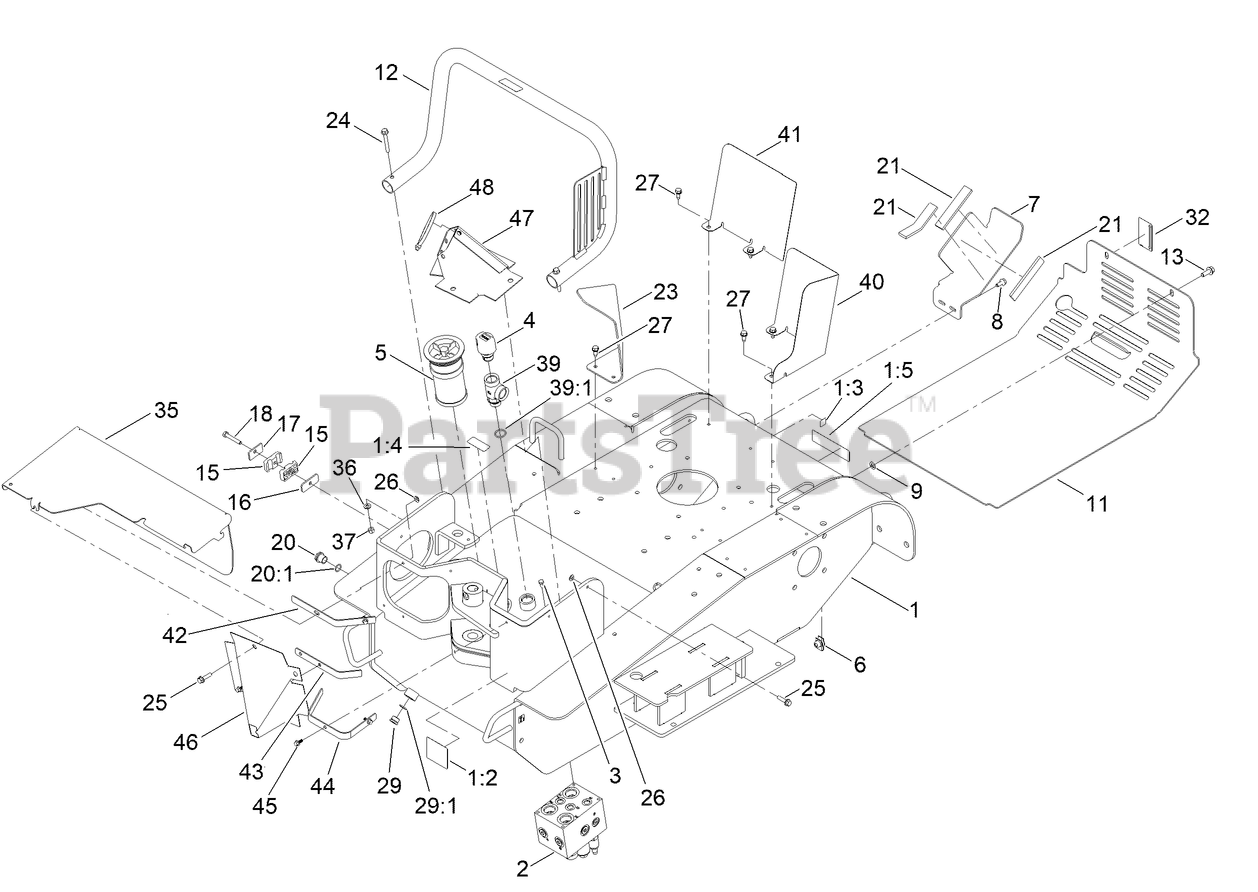

23214 (STX-38) - Toro EFI Stump Grinder with Intelli-Sweep (SN: 410500000 - 413999999) Main Frame Assembly Parts Diagram

EFI Stump Grinder with Intelli-Sweep

Main Frame Assembly Parts Diagram

  • Title

1

Toro 131-0747

FRAME-MAIN

$4485.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-4650

DECAL-WARNING

$25.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

1:4

Toro 93-6686

DECAL-OIL, HYD

$8.99

$

Usually ships in 3-6 days

0

1:5

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

2

Toro 121-1022

VALVE-CUTTER

$1720.99

$

Usually ships in 3-6 days

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

4

Toro 115-9793

BREATHER

$73.99

$

Usually ships in 3-6 days

0

5

Toro 115-5745

CARTRIDGE-FILTER

$271.99

$

Usually ships in 3-6 days

0

6

Toro 105-4886

NUT-TINNERMAN

$2.99

$

In Stock, only 1 left!

0

7

Toro 121-1141-01

BRACKET-TANK

$64.99

$

Usually ships in 3-6 days

0

8

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0

9

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 12

0

11

Toro 121-4532

COVER-REAR

$258.99

$

Usually ships in 3-6 days

0

12

Toro 140-7612

MUFFLER GUARD DECAL ASM

$417.99

$

Usually ships in 3-6 days

0

13

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 16

0

15

Toro 56-7976

CLAMP-TUBE

$2.99

$

Usually ships in 3-6 days

0

16

Toro 119-4636

PLATE-CLAMP

$13.99

$

In Stock, only 1 left!

0

17

Toro 69-9760

COVERPLATE

$6.99

$

Usually ships in 3-6 days

0

18

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

20

Toro 114-3075

SIGHT GLASS ASM

$28.99

$

In Stock, only 1 left!

0

20:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

21

Toro 121-0894

PAD-FOAM

$3.99

$

Usually ships in 3-6 days

0

23

Toro 131-0640-01

PLATE-DEFLECTOR, RH

$38.99

$

Usually ships in 3-6 days

0

24

Toro 135-6323

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

25

Toro 3234-36

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

26

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 1-523420

BUMPER

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0

29

Toro 353-988

PLUG-HEX

$13.99

$

In Stock, only 1 left!

0

29:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

30

Toro 32128-33

NUT-HF

Note: Not illustrated

$0.99

$

In Stock, Qty 20+

0

32

Toro 93-9363

DECAL-BRAKE, PARKING

$19.99

$

Usually ships in 3-6 days

0

35

Toro 140-3615-03

COVER, HYDRAULIC

$135.99

$

Usually ships in 3-6 days

0

36

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

39

Toro 130-7571

FITTING-TEE

$153.99

$

Usually ships in 3-6 days

0

39:1

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

40

Toro 138-9891

USE 138-9891-03
(Superseded to 138-9891-03)

$61.99

$

Usually ships in 3-6 days

0

41

Toro 138-9893

USE 138-9893-03
(Superseded to 138-9893-03)

$48.99

$

Usually ships in 3-6 days

0

42

Toro 140-3625

BRACKET-FRAME, TOP

$

$

Currently unavailable

43

Toro 138-5201

BRACKET-FRAME, BOTTOM

$

$

Currently unavailable

44

Toro 138-5227

BRACKET-BOOT

$

$

Currently unavailable

45

Toro 99-6810

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

46

Toro 140-3580

COVER, CANVAS CYLINDER

$280.99

$

Usually ships in 3-6 days

0

47

Toro 140-3581

COVER, CANVAS HYD HOSES

$280.99

$

Usually ships in 3-6 days

0

48

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
