23267 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) Gear Case Assembly Parts Diagram

Walk-Behind Mower

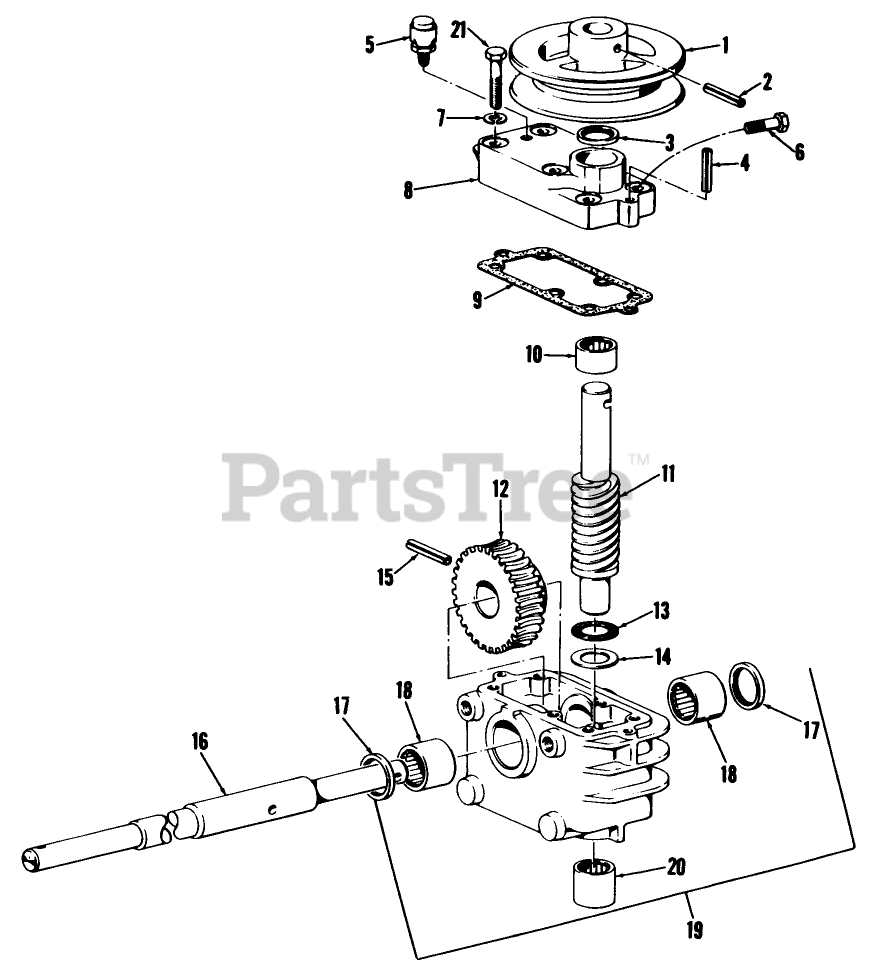

Gear Case Assembly Parts Diagram

  • Title

1

Toro 5-1584

DISCONTINUED

$

$

Not available

2

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

3

Toro 253-85

DISCONTINUED

$

$

Not available

4

Toro 32121-2

PIN-ROLL, SLOTTED

$0.99

$

In Stock, Qty 8

0

5

Toro 302-14

VENT

$10.99

$

Usually ships in 3-6 days

0

6

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 5-1556

DISCONTINUED

$

$

Not available

9

Toro 3-4512

DISCONTINUED

$

$

Not available

10

Toro 252-64

.625 NEEDLE BEARING

$

$

Currently unavailable

11

Toro 5-1563

DISCONTINUED

$

$

Not available

12

Toro 5-1565

DISCONTINUED

$

$

Not available

13

Toro 252-58

NEEDLE BRG

$47.99

$

Usually ships in 3-6 days

0

14

Toro 252-59

See Supercession: 7418
(Superseded to 7418)

$7.99

$

In Stock, only 4 left!

0

15

Toro 32121-12

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

16

Toro 5-2123

DISCONTINUED

$

$

Not available

17

Toro 253-84

SEAL-OIL

$11.99

$

Usually ships in 3-6 days

0

18

Toro 252-6

BEARING-NEEDLE

$13.99

$

In Stock, Qty 7

0

19

Toro 3-7539

DISCONTINUED

$

$

Not available

20

Toro 252-57

DISCONTINUED

$

$

Not available

21

Toro 321-9

SCREW-HH

$5.49

$

In Stock, Qty 20+

0
