23267 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) Carburetor Model No. 632253 Parts Diagram

Walk-Behind Mower

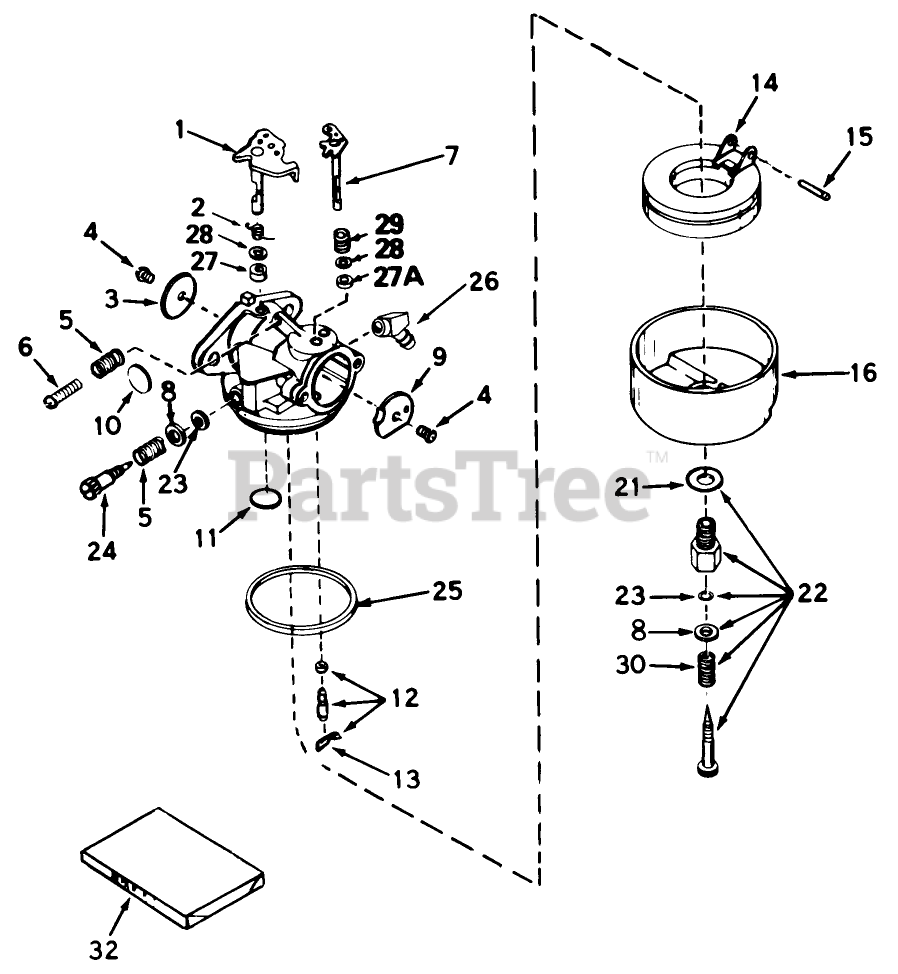

Carburetor Model No. 632253 Parts Diagram

  • Title

1

Toro 31834

Shaft/Lever-Throttle

$

$

Currently unavailable

2

Toro 631767

Spring-Return, Throttle

$

$

Currently unavailable

3

Toro 631036

Shutter-Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 630973

Shaft Lever Assy., Choke

$

$

Currently unavailable

8

Toro 630739

Washer

$

$

Currently unavailable

9

Toro 631582

Shutter, Choke

$

$

Currently unavailable

10

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Included In Repair Kit Num 632235

$

$

Currently unavailable

11

Toro 631027

Plug-Welch, Atmospheric Vent

Note: Included In Repair Kit Num 632235

$

$

Currently unavailable

12

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

Note: Included In Repair Kit Num 632235

$

$

Currently unavailable

13

Toro 631022

Clip-Spring

$

$

Currently unavailable

14

Toro 632019

Float

$

$

Currently unavailable

15

Toro 631024

Shaft-Float

Note: Included In Repair Kit Num 632235

$

$

Currently unavailable

16

Toro 631867

Bowl-Float (no drain)

$

$

Currently unavailable

21

Toro 27110

Washer-Bowl Nut

$

$

Currently unavailable

22

Toro 632234

Adjustment Screw Assy., Main (Incl. Ref.#8,21,2330)

Note: Included In Repair Kit Num 632235

$

$

Currently unavailable

23

Toro 630740

ORing

Note: Included In Repair Kit Num 632235

$

$

Currently unavailable

24

Toro 631078

Screw, Idle Adj.

Note: Included In Repair Kit Num 632235

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

Note: Included In Repair Kit Num 632235

$

$

Currently unavailable

26

Toro 631808

Fitting-Inlet, Fuel

$

$

Currently unavailable

27

Toro 631971

Seal-Dust

$

$

Currently unavailable

27A

Toro 631183

Seal-Dust

$

$

Currently unavailable

28

Toro 631184

Washer-Seal, Dust

$

$

Currently unavailable

29

Toro 632045

Spring-Choke

$

$

Currently unavailable

30

Toro 630738

Spring

$

$

Currently unavailable

32

Toro 632235

Repair Kit

$

$

Currently unavailable
