23267 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

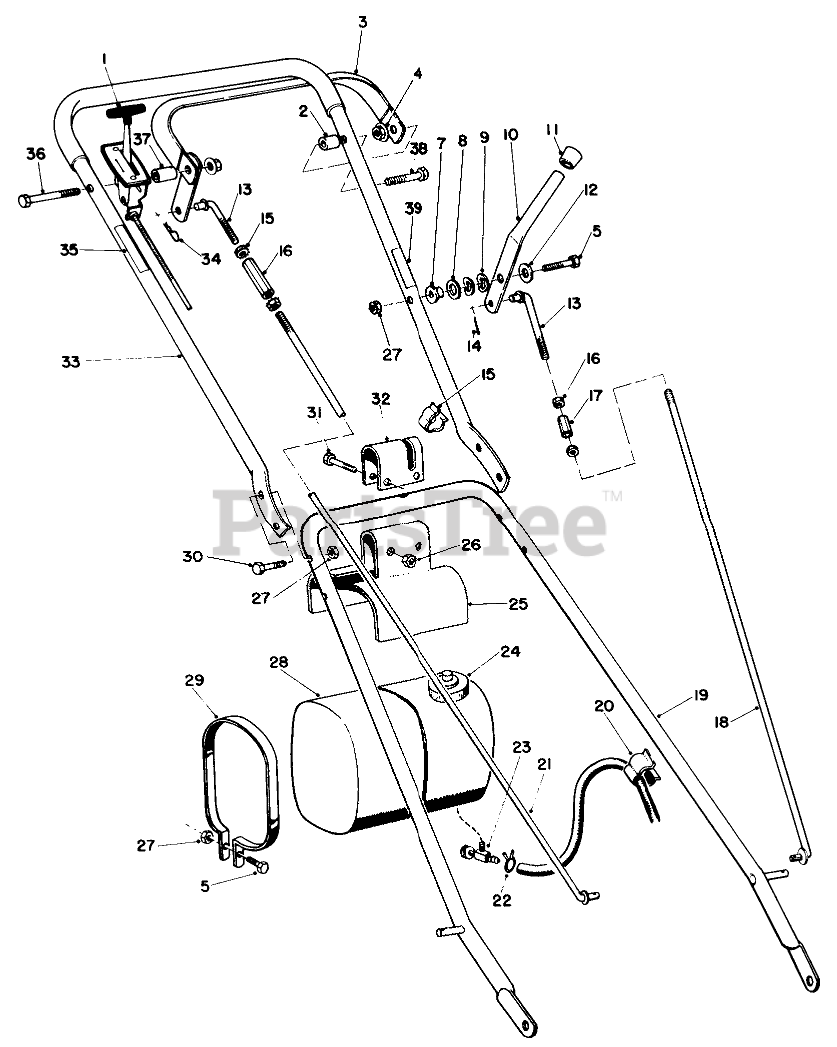

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 29-6720

Control, Throttle
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

3

Toro Part# 29-4700

Control Bail
Usually ships same day

Not available

$

$

4

Toro Part# 32128-10

NUT-LOCK, HHF
Usually ships in 1 day

$

$4.03

0

5
Usually ships in 1 day

$

$1.00

0

Usually ships same day

Not available

$

$

8

Toro Part# 3256-25

WASHER-FLAT
Usually ships in 1 day

$

$0.19

0

9

Toro Part# 3290-211

WASHER-SPRING
Usually ships in 5 to 8 days

$

$5.45

0

10

Toro Part# 5-2154

CUTTER HANDLE R
Usually ships same day

Not available

$

$

11

Toro Part# 5-0747

Button Plug
Usually ships same day

Not available

$

$

12

Toro Part# 3256-22

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

13

Toro Part# 29-4830

LINK CONTROL ROD
Usually ships same day

Not available

$

$

14

Toro Part# 3272-6

PIN-COTTER
Usually ships in 1 day

$

$0.26

0

Usually ships same day

Not available

$

$

16
Usually ships in 1 day

$

$4.82

0

17

Toro Part# 3-6481

CONTROL ROD SLEEVE
Usually ships same day

Not available

$

$

18

Toro Part# 22-6030

CUTTER CONTROL ROD
Usually ships same day

Not available

$

$

19

Toro Part# 26-7830

LOWER HANDLE WA
Usually ships in 5 to 8 days

$

$162.98

0

Usually ships same day

Not available

$

$

21

Toro Part# 29-4850

CONTROL ROD
Usually ships same day

Not available

$

$

22

Toro Part# 2210-87

Clamp
(Superseded to 2412-36)
Usually ships in 5 to 8 days

$

$1.79

0

23

Toro Part# 304-71

.125 ID SHUTOFF VALVE
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

25

Toro Part# 3-6345

FUEL TANK BRACKET
Usually ships same day

Not available

$

$

26

Toro Part# 32146-5

Nut
(Superseded to 32153-3)
Usually ships in 5 to 8 days

$

$4.98

0

27

Toro Part# 32146-17

NUT-LOCK
(Superseded to 3296-42)
Usually ships in 1 day

$

$0.40

0

28

Toro Part# 222-14

Tank
(Superseded to 52-2331)
Usually ships in 5 to 8 days

$

$292.67

0

29

Toro Part# 3-6346

TANK STRAP
Usually ships same day

Not available

$

$

30

Toro Part# 321-8

SCREW-HH
Usually ships in 1 day

$

$3.46

0

31

Toro Part# 322-7

SCREW-HH
Usually ships in 1 day

$

$0.88

0

Usually ships same day

Not available

$

$

33

Toro Part# 29-6820

Upper Handle
Usually ships same day

Not available

$

$

34

Toro Part# 3290-250

PIN-COTTER
Usually ships in 5 to 8 days

$

$4.99

0

35

Toro Part# 29-9880

Decal-Throttle
Usually ships same day

Not available

$

$

36
Usually ships in 1 day

$

$0.84

0

37

Toro Part# 29-6750

SLEEVE-PIVOT ROLLED
Usually ships same day

Not available

$

$

38

Toro Part# 321-9

SCREW-HH
Usually ships in 1 day

$

$4.25

0

39

Toro Part# 38-3200

BLADE CONTROL DECAL
Usually ships same day

Not available

$

$
