23267 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Engine Tecumseh Model No. Tvm140-70287k Parts Diagram

Walk-Behind Mower

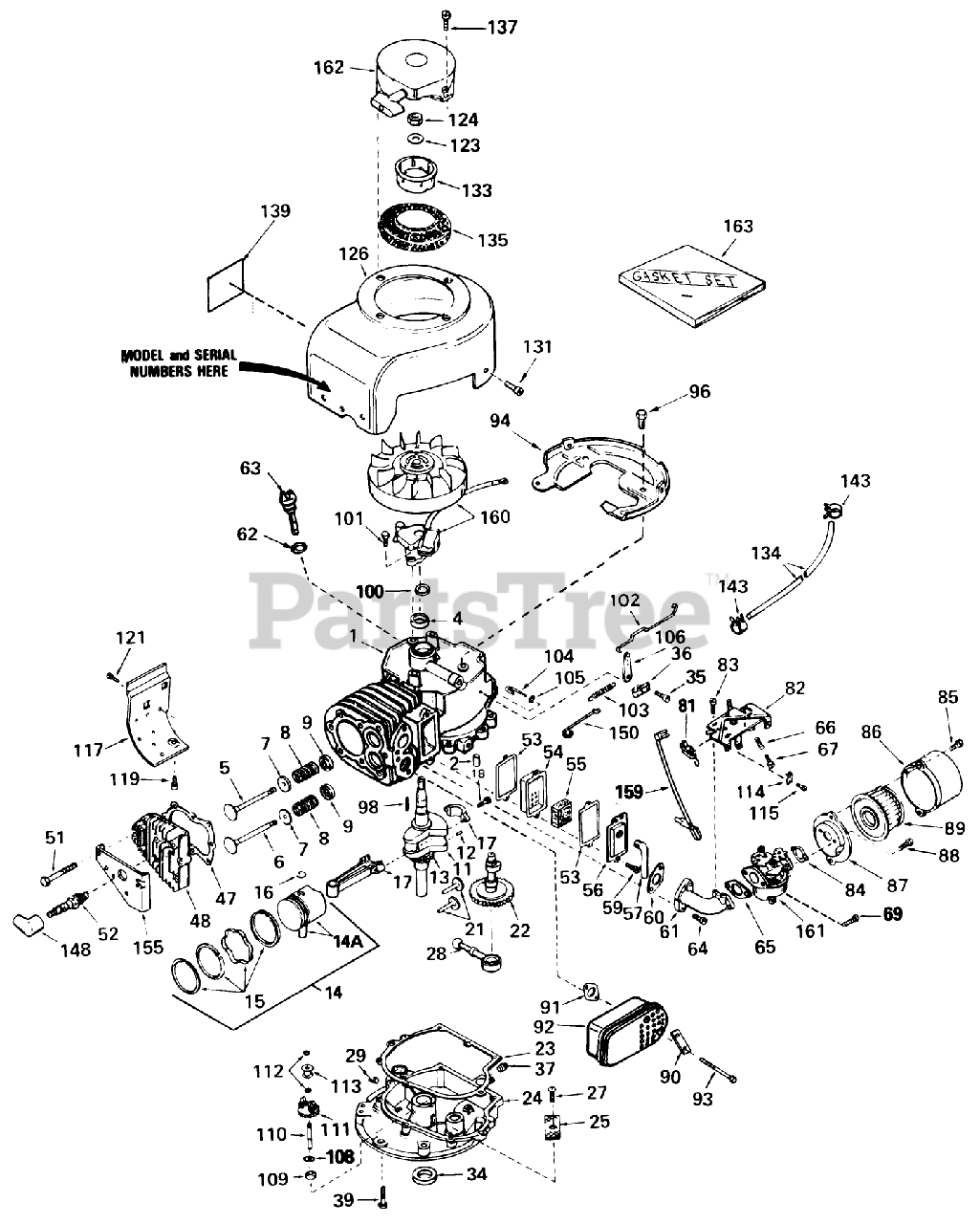

Engine Tecumseh Model No. Tvm140-70287k Parts Diagram

  • Title

1

Toro 34913

Cylinder Assy. (Incl. Ref. #2, 4 63)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

4

Toro 32630

Oil Seal

$

$

Currently unavailable

5

Toro 32783

Valve, Intake (Standard)(Incl. No. 9)

$

$

Currently unavailable

5

Toro 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

7

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

8

Toro 27881

Spring-Valve

$

$

Currently unavailable

9

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

11

Toro 34880

Crankshaft Assy. (Incl. Ref. #12 13)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

14

Toro 34531

Piston, Pin Ring Assy. (Std.)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34532

Piston, Pin Ring Assy. (.010 Oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34533

Piston, Pin Ring Assy. (.020 Oversize)(Incl. Ref. #14A,15 16)

$

$

Currently unavailable

14A

Toro 33312B

Piston Pin Assy. (Std.)(Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 33313B

Piston Pin Assy. (.010 Oversize)(Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 33314B

Piston Pin Assy. (.020 Oversize)(Incl. Ref. #16)

$

$

Currently unavailable

15

Toro 33315

Ring Set, Piston (Std.)
(Superseded to 704701)

$

$

Not available

15

Toro 33316

Ring Set, Piston (.010 Oversize)

$

$

Not available

15

Toro 33317

Ring Set, Piston (.020 oversize)

$

$

Currently unavailable

16

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

17

Toro 31380C

Rod Assy., Connecting (Incl. Ref. #18)

$

$

Currently unavailable

18

Toro 650662B

Bolt, Connecting Rod

$

$

Currently unavailable

21

Toro 34034

Lifter-Valve

$

$

Currently unavailable

22

Toro 32114

Screw

$

$

Currently unavailable

23

Toro 30684

Gasket-Cover, Cylinder

Note: Included In Gasket Set Num 33234a.

$

$

Currently unavailable

24

Toro 31552C

Flange Assy., Mounting (Incl. #25, 27, 34, 37 110)

$

$

Currently unavailable

25

Toro 31355

Screen-Oil Filter

$

$

Currently unavailable

27

Toro 29117

Screw

$

$

Currently unavailable

28

Toro 31356

Pump, Oil

$

$

Currently unavailable

29

Toro 28582

Plug-Pipe (Internal Hex, 1/4-18)

$

$

Currently unavailable

34

Toro 27897

Seal-Oil

$

$

Currently unavailable

35

Toro 650548

Screw

$

$

Currently unavailable

36

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

37

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

39

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

47

Toro 28938B

Gasket-Head, Cylinder

Note: Included In Gasket Set Num 33234a.

$

$

Currently unavailable

48

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

51

Toro 650697A

Screw (5/16-18 X 2-1/2)

$

$

Currently unavailable

52

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

52

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

53

Toro 27896

Gasket-Breather

Note: Included In Gasket Set Num 33234a.

$

$

Currently unavailable

54

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

55

Toro 28424

Element-Breather

$

$

Currently unavailable

56

Toro 28425

Cover-Valve

$

$

Currently unavailable

57

Toro 27627

Tube-Breather

$

$

Currently unavailable

59

Toro 650128

Screw

$

$

Currently unavailable

60

Toro 27915

Gasket-Intake

Note: Included In Gasket Set Num 33234a.

$

$

Currently unavailable

61

Toro 32632

Pipe-Intake
(Superseded to 741323)

$

$

Not available

62

Toro 29673

Gasket

Note: Included In Gasket Set Num 33234a.

$

$

Currently unavailable

63

Toro 34165

Dipstick, Oil (Incl. No. 45)

$

$

Currently unavailable

64

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

65

Toro 26756

Gasket

Note: Included In Gasket Set Num 33234a.

$

$

Currently unavailable

66

Toro 31342

Spring-Compression

$

$

Currently unavailable

67

Toro 650549

Screw

$

$

Currently unavailable

69

Toro 650372

Screw-Hex Hd.

$

$

Currently unavailable

81

Toro 610973

Terminal

$

$

Currently unavailable

82

Toro 32181A

Control Assy.Speed (Incl. Ref. #79 80)

$

$

Currently unavailable

83

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

84

Toro 27272

Gasket

Note: Included In Gasket Set Num 33234a.

$

$

Currently unavailable

85

Toro 650152

Screw

$

$

Currently unavailable

86

Toro 31715

Body-Air Cleaner
(Superseded to 742361)

$

$

Not available

87

Toro 31691

Bracket

$

$

Currently unavailable

88

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

89

Toro 30727

Element

$

$

Currently unavailable

90

Toro 31588

62513 SNWTHWR W/284

$3.23

$

Usually ships in 3-6 days

0

91

Toro 27930

Gasket Exhaust

Note: Included In Gasket Set Num 33234a.

$

$

Currently unavailable

92

Toro 28269

Muffler

$

$

Currently unavailable

93

Toro 650696

Screw Hex Hd.

$

$

Currently unavailable

94

Toro 29536

Baffle Blower Housing

$

$

Currently unavailable

96

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

98

Toro 32589

Key-Flywheel

$

$

Currently unavailable

100

Toro 33876

Gasket Stator

$

$

Currently unavailable

101

Toro 650489

Screw

$

$

Currently unavailable

102

Toro 31823

Link Governor
(Superseded to 742364)

$

$

Not available

103

Toro 31361

Spring Governor

$

$

Currently unavailable

104

Toro 30669

Rod, Governor (Incl. Nos. 146)

$

$

Currently unavailable

105

Toro 28277

Washer-Flat

$

$

Currently unavailable

106

Toro 31357

Lever-Governor

$

$

Currently unavailable

108

Toro 30590A

Washer-Flat

$

$

Currently unavailable

109

Toro 31707A

Spacer Assy. Governor (Incl. Ref. #41)

$

$

Currently unavailable

110

Toro 30668

Shaft, Governor

$

$

Currently unavailable

111

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

112

Toro 29193

Ring-Retaining

$

$

Currently unavailable

113

Toro 30588A

Spool-Governor

$

$

Currently unavailable

114

Toro 27793

Conduit

$

$

Currently unavailable

115

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

117

Toro 30622

Emnsion, Blower Housing

$

$

Currently unavailable

119

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 30688

Screw

$

$

Currently unavailable

123

Toro 650815

Washer-Belleville

$

$

Currently unavailable

124

Toro 8116

DISCONTINUED

$

$

Not available

126

Toro 32223A

Housing, Blower

$

$

Currently unavailable

131

Toro 29747A

Screw, Hex Hd.

$

$

Currently unavailable

133

Toro 32125

Cup-Starter

$

$

Currently unavailable

134

Toro 30962

Line-Fuel

$

$

Currently unavailable

135

Toro 590417

Screen, Air

$

$

Currently unavailable

137

Toro 29716

Screw

$

$

Currently unavailable

139

Toro 34346

Decal-Instruction

$

$

Currently unavailable

143

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

148

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

150

Toro 32582

Link Governor Spring

$

$

Currently unavailable

155

Toro 30939A

Cover-Head, Cylinder

$

$

Currently unavailable

159

Toro 34235

Wire, Ground

$

$

Currently unavailable

160

Toro 611038

Magneto (The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.)

$

$

Currently unavailable

161

Toro 632253

Carburetor (Incl. Ref. #65)

$

$

Currently unavailable

162

Toro 590420

Starter, Rewind

$

$

Currently unavailable

163

Toro 33234A

Gasket Set

$

$

Currently unavailable
