23267 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) CARBURETOR MODEL NO. 632253 Parts Diagram

Walk-Behind Mower

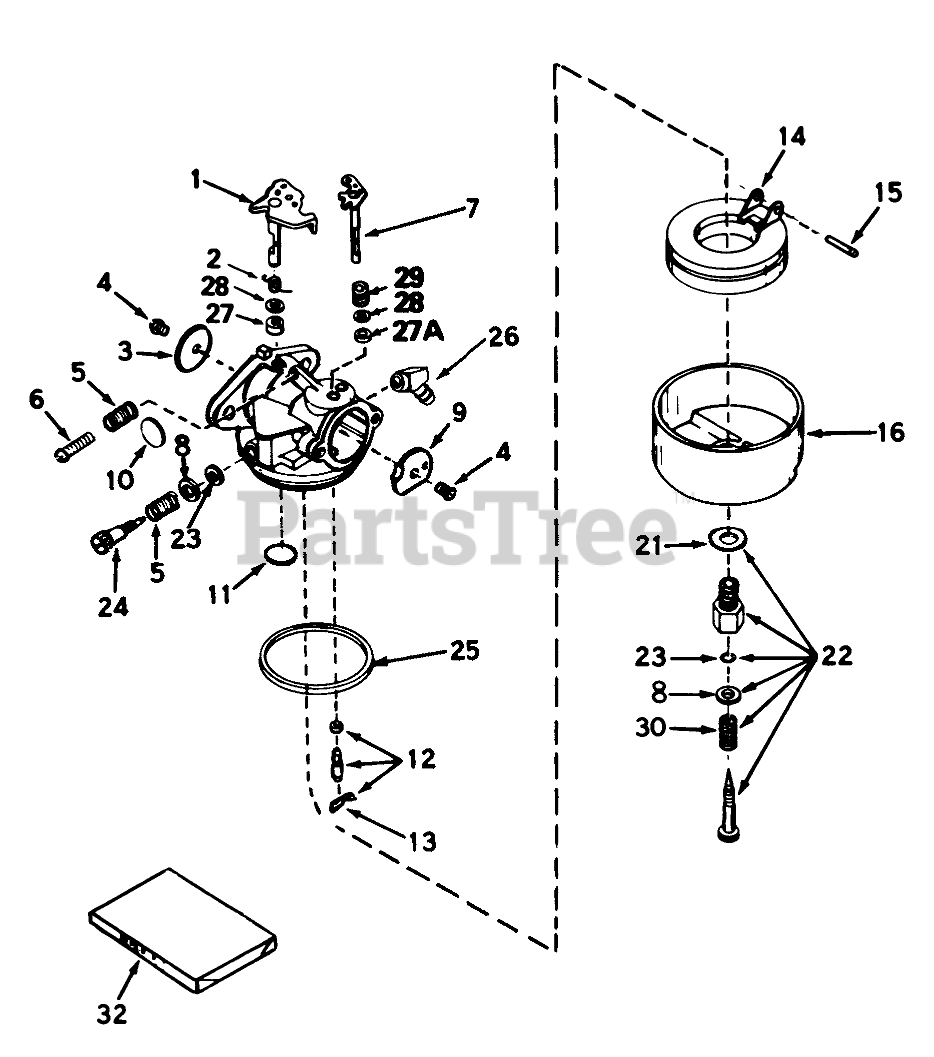

CARBURETOR MODEL NO. 632253 Parts Diagram

  • Title
1

Tecumseh Part# 31834

Shaft/Lever-Throttle
Usually ships in 8 to 14 days

$

$9.16

0

2

Tecumseh Part# 631767

Spring-Return, Throttle
Usually ships in 1 day

$

$1.76

0

3

Tecumseh Part# 631036

Shutter-Throttle
Usually ships in 8 to 14 days

$

$1.68

0

4

Tecumseh Part# 650506

Screw-Shutter
Usually ships in 1 day

$

$1.22

0

5

Tecumseh Part# 630766

Spring-Tension
Usually ships in 1 day

$

$1.76

0

6

Tecumseh Part# 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)
Usually ships in 1 day

$

$1.66

0

7

Tecumseh Part# 630973

Shaft& Lever Assy., Choke
Usually ships in 8 to 14 days

$

$7.22

0

Usually ships in 1 day

$

$1.76

0

9

Tecumseh Part# 631582

Shutter, Choke
Usually ships in 8 to 14 days

$

$1.68

0

10

Tecumseh Part# 630748

Plug-Welch, Idle Mixture Well

Note: Included In Repair Kit Num 632235.

Usually ships in 1 day

$

$1.64

0

11

Tecumseh Part# 631027

Plug-Welch, Atmospheric Vent

Note: Included In Repair Kit Num 632235.

Usually ships in 1 day

$

$1.64

0

12

Tecumseh Part# 631021

Inlet Needle, Seat & Clip Assy. (Incl. Ref. #13)
(Superseded to 631021B)

Note: Included In Repair Kit Num 632235.

Usually ships in 1 day

$

$5.40

0

13

Tecumseh Part# 631022

Clip-Spring
Usually ships in 1 day

$

$1.76

0

14

Tecumseh Part# 632019

Float
(Superseded to 632019A)
Usually ships in 1 day

$

$7.31

0

15

Tecumseh Part# 631024

Shaft-Float

Note: Included In Repair Kit Num 632235.

Usually ships in 1 day

$

$1.64

0

16

Tecumseh Part# 631867

Bowl-Float (no drain)
Usually ships in 1 day

$

$3.28

0

21

Tecumseh Part# 27110

Washer-Bowl Nut
(Superseded to 27110A)
Usually ships in 1 day

$

$1.50

0

22

Tecumseh Part# 632234

Adjustment Screw Assy., Main (Incl. Ref.#8,21,23&30)

Note: Included In Repair Kit Num 632235.

Usually ships in 8 to 14 days

$

$11.04

0

23

Tecumseh Part# 630740

"O"Ring

Note: Included In Repair Kit Num 632235.

Usually ships in 1 day

$

$2.08

0

24

Tecumseh Part# 631078

Screw, Idle Adj.
(Superseded to 631838)

Note: Included In Repair Kit Num 632235.

Usually ships in 1 day

$

$3.80

0

25

Tecumseh Part# 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Included In Repair Kit Num 632235.

Usually ships in 1 day

$

$1.38

0

26

Tecumseh Part# 631808

Fitting-Inlet, Fuel
Usually ships in 8 to 14 days

$

$13.10

0

27

Tecumseh Part# 631971

Seal-Dust
(Superseded to 631183)
Usually ships in 1 day

$

$1.76

0

27A
Usually ships in 1 day

$

$1.76

0

28

Tecumseh Part# 631184

Washer-Seal, Dust
Usually ships in 1 day

$

$1.76

0

29

Tecumseh Part# 632045

Spring-Choke
Usually ships in 1 day

$

$1.76

0

Usually ships in 1 day

$

$1.76

0

32
Usually ships in 1 day

$

$20.84

0
