23267 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) Engine Tecumseh Model No. Tvm140-70287l Parts Diagram

Walk-Behind Mower

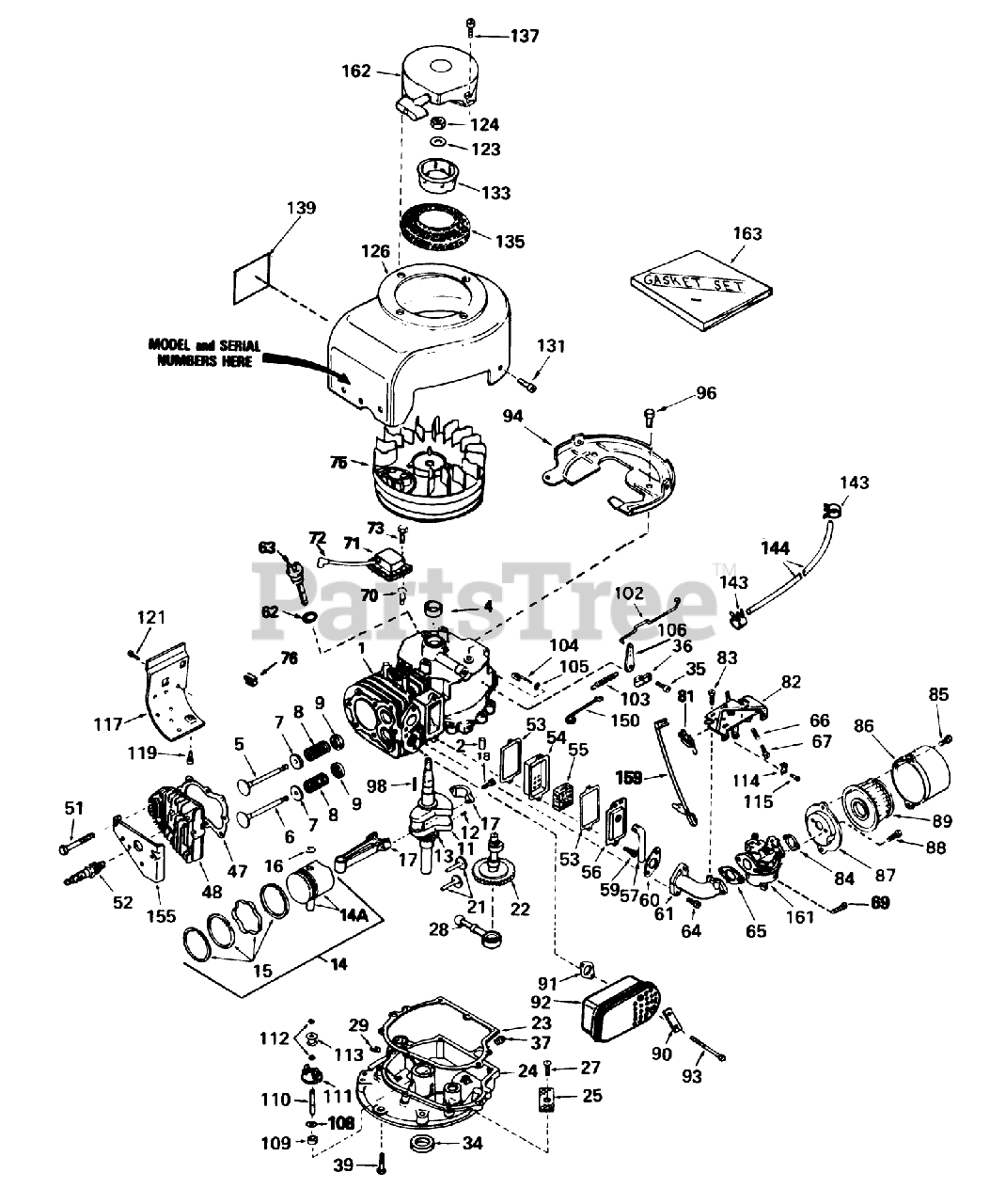

Engine Tecumseh Model No. Tvm140-70287l Parts Diagram

  • Title

1

Toro 34913A

Cylinder Assy. (Incl. Ref. #2 4)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

4

Toro 32630

Oil Seal

$

$

Currently unavailable

5

Toro 32783

Valve, Intake (Standard)(Incl. No. 9)

$

$

Currently unavailable

5

Toro 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

7

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

8

Toro 27881

Spring-Valve

$

$

Currently unavailable

9

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

11

Toro 35209

Crankshaft Assy. (Incl. Ref. #12 13)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

14

Toro 34531

Piston, Pin Ring Assy. (Std.)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34532

Piston, Pin Ring Assy. (.010 Oversize)(Incl. Ref. #14A, 15 16)

$

$

Currently unavailable

14

Toro 34533

Piston, Pin Ring Assy. (.020 Oversize)(Incl. Ref. #14A,15 16)

$

$

Currently unavailable

14A

Toro 33312B

Piston Pin Assy. (Std.)(Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 33313B

Piston Pin Assy. (.010 Oversize)(Incl. Ref. #16)

$

$

Currently unavailable

14A

Toro 33314B

Piston Pin Assy. (.020 Oversize)(Incl. Ref. #16)

$

$

Currently unavailable

15

Toro 34854

Ring Set (Std.)

$

$

Currently unavailable

15

Toro 34855

Ring Set (.020" OS)

$

$

Currently unavailable

15

Toro 34856

Ring Set (.010" OS)

$

$

Currently unavailable

16

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

17

Toro 31380C

Rod Assy., Connecting (Incl. Ref. #18)

$

$

Currently unavailable

18

Toro 650662B

Bolt, Connecting Rod

$

$

Currently unavailable

21

Toro 34034

Lifter-Valve

$

$

Currently unavailable

22

Toro 32144

Camshaft (Mechanical Compression Release)

$

$

Currently unavailable

23

Toro 30684

Gasket-Cover, Cylinder

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$

$

Currently unavailable

24

Toro 31552C

Flange Assy., Mounting (Incl. #25, 27, 34, 37 110)

$

$

Currently unavailable

25

Toro 31355

Screen-Oil Filter

$

$

Currently unavailable

27

Toro 29117

Screw

$

$

Currently unavailable

28

Toro 31356

Pump, Oil

$

$

Currently unavailable

29

Toro 28582

Plug-Pipe (Internal Hex, 1/4-18)

$

$

Currently unavailable

34

Toro 27897

Seal-Oil

$

$

Currently unavailable

35

Toro 650548

Screw

$

$

Currently unavailable

36

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

37

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

39

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

47

Toro 28938B

Gasket-Head, Cylinder

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$

$

Currently unavailable

48

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

51

Toro 650697A

Screw (5/16-18 X 2-1/2)

$

$

Currently unavailable

52

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

52

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

53

Toro 27896

Gasket-Breather

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$

$

Currently unavailable

54

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

55

Toro 28424

Element-Breather

$

$

Currently unavailable

56

Toro 28425

Cover-Valve

$

$

Currently unavailable

57

Toro 27627

Tube-Breather

$

$

Currently unavailable

59

Toro 650128

Screw

$

$

Currently unavailable

60

Toro 27915

Gasket-Intake

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$

$

Currently unavailable

61

Toro 32632

Pipe-Intake
(Superseded to 741323)

$

$

Not available

62

Toro 29673

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$

$

Currently unavailable

63

Toro 34165

Dipstick, Oil (Incl. No. 45)

$

$

Currently unavailable

64

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

65

Toro 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$

$

Currently unavailable

66

Toro 31342

Spring-Compression

$

$

Currently unavailable

67

Toro 650549

Screw

$

$

Currently unavailable

69

Toro 650372

Screw-Hex Hd.

$

$

Currently unavailable

70

Toro 650872

Stud

$

$

Currently unavailable

71

Toro 34443A

Solid State

$

$

Currently unavailable

72

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

73

Toro 650814

Screw

$

$

Currently unavailable

75

Toro 611084

FIywheel

$

$

Currently unavailable

76

Toro 29443

Clip-Wire

$

$

Currently unavailable

81

Toro 610973

Terminal

$

$

Currently unavailable

82

Toro 32181A

Control Assy.Speed (Incl. Ref. #79 80)

$

$

Currently unavailable

83

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

84

Toro 27272

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$

$

Currently unavailable

85

Toro 650152

Screw

$

$

Currently unavailable

86

Toro 31715

Body-Air Cleaner
(Superseded to 742361)

$

$

Not available

87

Toro 31691

Bracket

$

$

Currently unavailable

88

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

89

Toro 30727

Element

$

$

Currently unavailable

90

Toro 31588

62513 SNWTHWR W/284

$3.23

$

Usually ships in 3-6 days

0

91

Toro 27930

Gasket Exhaust

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$

$

Currently unavailable

92

Toro 28269

Muffler

$

$

Currently unavailable

93

Toro 650696

Screw Hex Hd.

$

$

Currently unavailable

94

Toro 29536

Baffle Blower Housing

$

$

Currently unavailable

96

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

98

Toro 32589

Key-Flywheel

$

$

Currently unavailable

102

Toro 31823

Link Governor
(Superseded to 742364)

$

$

Not available

103

Toro 31361

Spring Governor

$

$

Currently unavailable

104

Toro 30669

Rod, Governor (Incl. Nos. 146)

$

$

Currently unavailable

105

Toro 28277

Washer-Flat

$

$

Currently unavailable

106

Toro 31357

Lever-Governor

$

$

Currently unavailable

108

Toro 30590A

Washer-Flat

$

$

Currently unavailable

109

Toro 31707A

Spacer Assy. Governor (Incl. Ref. #41)

$

$

Currently unavailable

110

Toro 30668

Shaft, Governor

$

$

Currently unavailable

111

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

112

Toro 29193

Ring-Retaining

$

$

Currently unavailable

113

Toro 30588A

Spool-Governor

$

$

Currently unavailable

114

Toro 27793

Conduit

$

$

Currently unavailable

115

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

117

Toro 30622A

Extension-Blower Hsng.

$

$

Currently unavailable

119

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 30688

Screw

$

$

Currently unavailable

123

Toro 650815

Washer-Belleville

$

$

Currently unavailable

124

Toro 8116

DISCONTINUED

$

$

Not available

126

Toro 35210

Housing Blower

$

$

Currently unavailable

131

Toro 29747B

Screw

$

$

Currently unavailable

133

Toro 32125

Cup-Starter

$

$

Currently unavailable

135

Toro 35009

Screen-Starter

$

$

Currently unavailable

137

Toro 29716

Screw

$

$

Currently unavailable

139

Toro 34346

Decal-Instruction

$

$

Currently unavailable

143

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

144

Toro 30962

Line-Fuel

$

$

Currently unavailable

150

Toro 32582

Link Governor Spring

$

$

Currently unavailable

155

Toro 30939A

Cover-Head, Cylinder

$

$

Currently unavailable

159

Toro 35182

Wire-Ground

$

$

Currently unavailable

161

Toro 632253

Carburetor (Incl. Ref. #65)

$

$

Currently unavailable

162

Toro 590420A

tarter-Rewind

$

$

Currently unavailable

163

Toro 33234A

Gasket Set

$

$

Currently unavailable
