23267 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

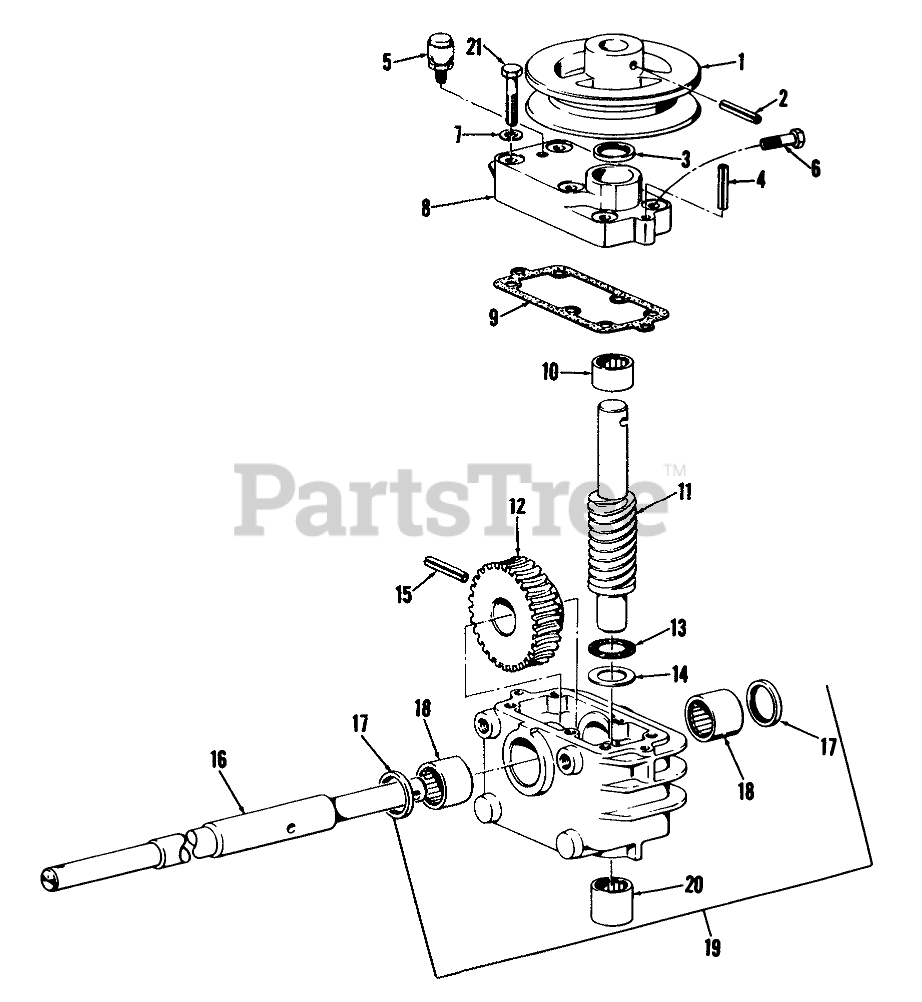

GEAR CASE ASSEMBLY Parts Diagram

  • Title
Usually ships same day

Not available

$

$

2

Toro Part# 32121-6

PIN-ROLL, SLOTTED
Usually ships in 5 to 8 days

$

$0.63

0

3

Toro Part# 253-85

5/8 X .125 OIL SEAL
Usually ships same day

Not available

$

$

4

Toro Part# 32121-2

PIN-ROLL, SLOTTED
Usually ships in 1 day

$

$0.36

0

Usually ships in 5 to 8 days

$

$6.98

0

6

Toro Part# 321-8

SCREW-HH
Usually ships in 1 day

$

$3.46

0

7

Toro Part# 3253-3

WASHER-LOCK
Usually ships in 1 day

$

$0.12

0

8

Toro Part# 5-1556

Cover, Gear Case
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

10

Toro Part# 252-64

.625 NEEDLE BEARING
Usually ships same day

Currently unavailable

$

$

11

Toro Part# 5-1563

Shaft, Worm
Usually ships same day

Not available

$

$

12

Toro Part# 5-1565

WORM GEAR
Usually ships same day

Not available

$

$

13

Toro Part# 252-58

NEEDLE BRG
Usually ships in 5 to 8 days

$

$30.26

0

14

Toro Part# 252-59

BEARING-THRUST
(Superseded to 7418)
Usually ships in 1 day

$

$5.27

0

15
Usually ships in 5 to 8 days

$

$1.91

0

16

Toro Part# 5-2123

Drive Shaft
Usually ships same day

Not available

$

$

17
Usually ships in 1 day

$

$9.91

0

18

Toro Part# 252-6

BEARING-NEEDLE
Usually ships in 1 day

$

$10.87

0

19

Toro Part# 3-7539

Gear Case Assy. w/Bearing (Incl. Ref.#18&20)
Usually ships same day

Not available

$

$

20

Toro Part# 252-57

.625 NEEDLE BEARING
Usually ships same day

Not available

$

$

21

Toro Part# 321-9

SCREW-HH
Usually ships in 1 day

$

$4.25

0
