233 RJ - Husqvarna Brush Cutter (SN: 20090100001 - 20112700000) BEVEL GEAR Parts Diagram

Brush Cutter

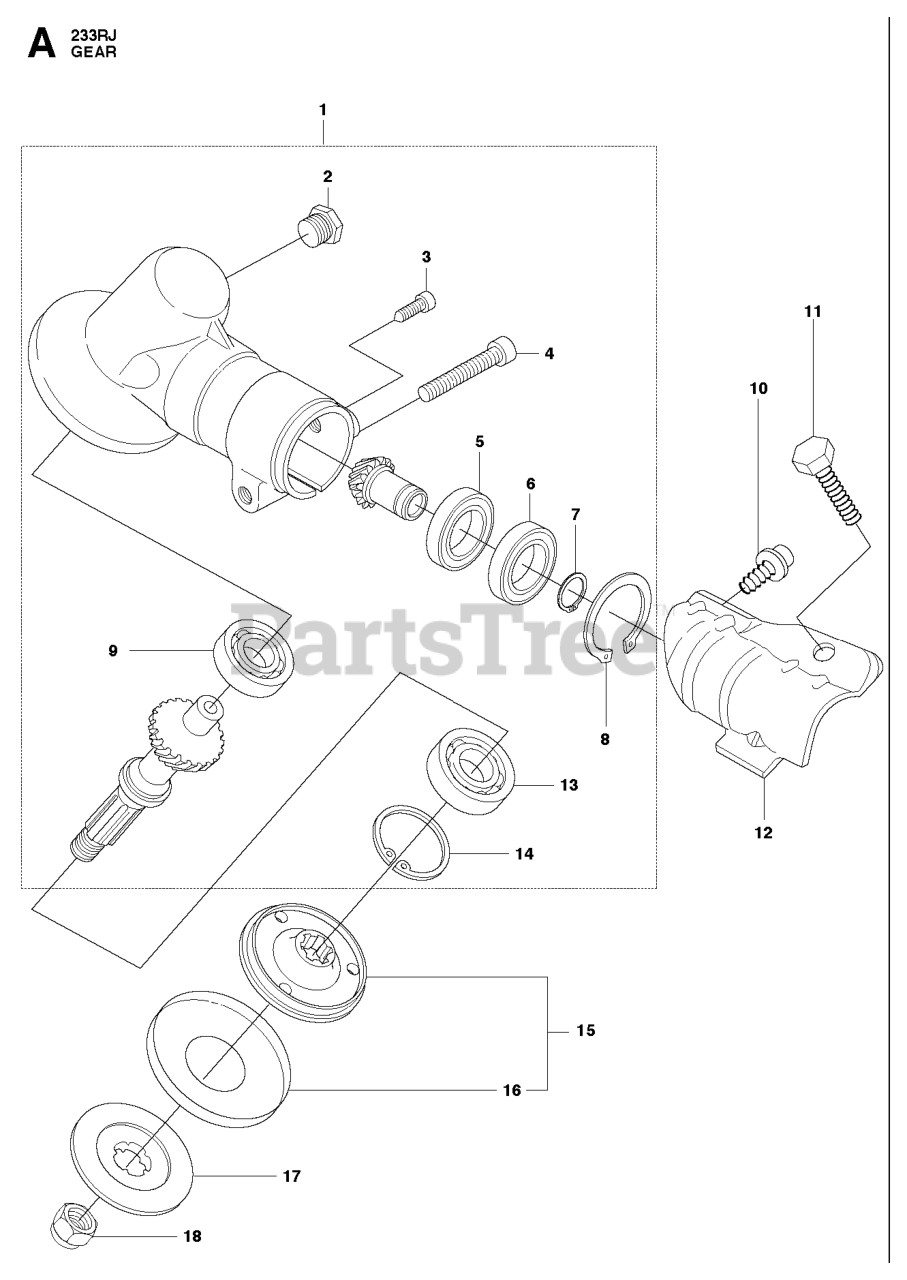

BEVEL GEAR Parts Diagram

  • Title

12

Husqvarna 503935501

RP BRACKET TRIMMER GUARD
(Superseded to 574306904)

$15.99

$

In Stock, only 2 left!

0

14

Husqvarna 735312810

RETAINING RING SGH 28

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 503252401

BEARING
(Superseded to 525831801)

$24.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503201412

SCREW

Note: Screw M5x12

$3.99

$

In Stock, Qty 8

0

2

Husqvarna 503201501

PLUG

$5.99

$

In Stock, only 4 left!

0

15

Husqvarna 537234901

DRIVE DISC

$26.99

$

Usually ships in 3-10 days

0

8

Husqvarna 735312510

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 503200712

SCREW

Note: Screw M5x12

$4.99

$

In Stock, Qty 7

0

9

Husqvarna 738219800

BALL BEARING 8X22X7/608Z

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 738219902

BEARING

$20.99

$

In Stock, only 2 left!

0

4

Husqvarna 503200725

SCREW

Note: Screw M5x25

$3.49

$

In Stock, Qty 11

0

16

Husqvarna 537292601

WASHER
(Superseded to 537234901)

$26.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, Qty 6

0

5

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$10.99

$

In Stock, only 4 left!

0

1

Husqvarna 537333202

GEARCASE-A

$

$

Not available

7

Husqvarna 735311100

RETAINING RING

$2.49

$

In Stock, only 2 left!

0

17

Husqvarna 537285601

SUPPORT FLANGE

$15.99

$

Usually ships in 3-10 days

0

11

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

Note: Screw M6x20

$3.49

$

Usually ships in 3-10 days

0
