23333 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HANDLE ASSEMBLY Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

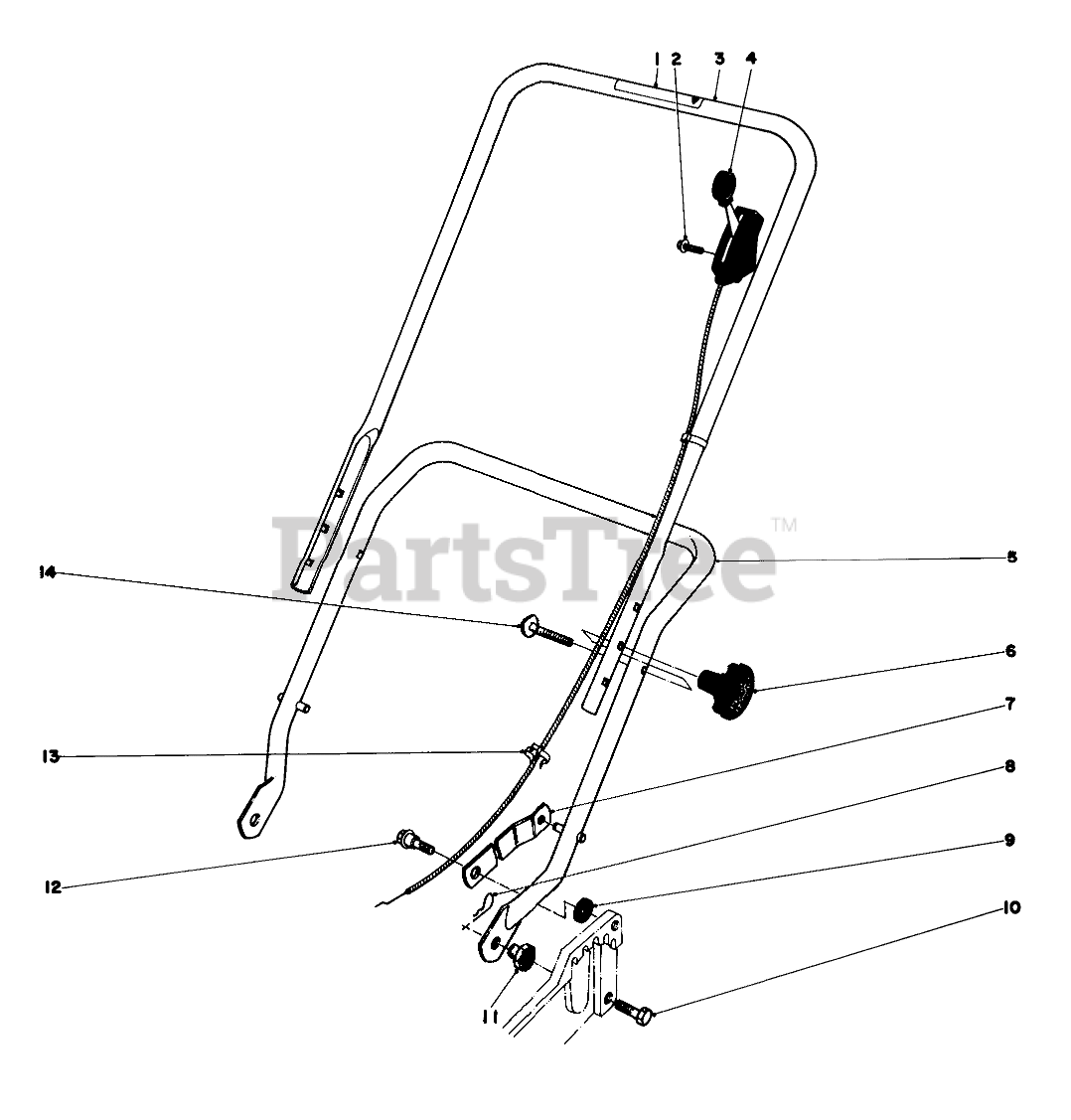

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 29-6290

Decal

$

$

Not available

2

Toro 32144-22

SCREW

$0.99

$

Usually ships in 3-6 days

0

3

Toro 33-4291

Upper Handle (Incl. Ref. #1)

$

$

Not available

4

Toro 33-2533

Throttle Control
(Superseded to 46-6000)

$53.99

$

Usually ships in 3-6 days

0

5

Toro 33-4340

LOWER HANDLE ASM

$

$

Not available

6

Toro 19-4050

KNOB

$18.99

$

In Stock, only 3 left!

0

7

Toro 26-0760

HANDLE LATCH

$

$

Not available

8

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

9

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 13

0

10

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 12-2080

HANDLE PIVOT NUT

$27.99

$

Usually ships in 3-6 days

0

12

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

13

Toro 218-465

BOWDEN CLIP

$

$

Not available

14

Toro 6-6330

HANDLE SCREW

$

$

Not available
