23370 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) Engine Tecumseh Model No. Av-600-660 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

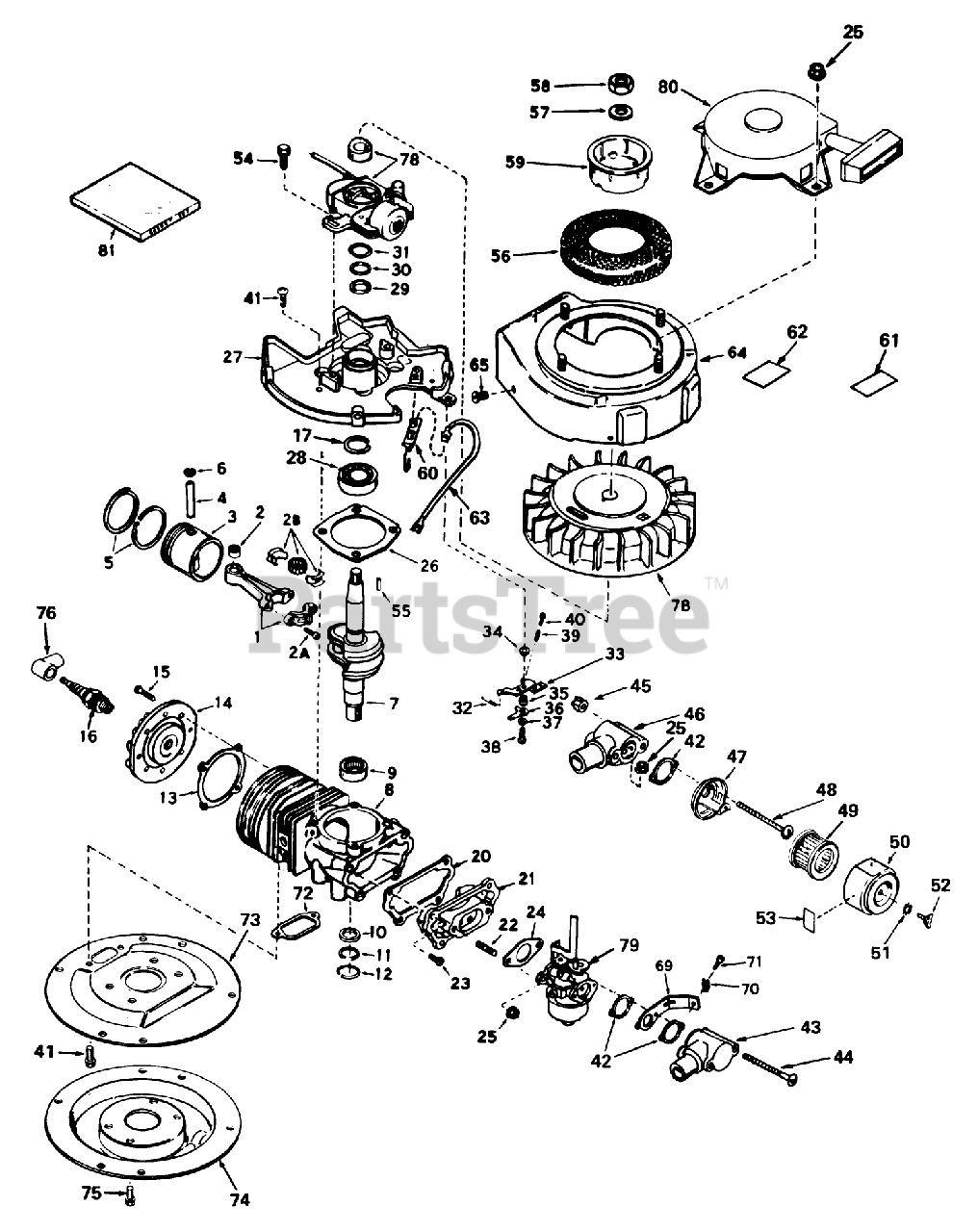

Engine Tecumseh Model No. Av-600-660 Parts Diagram

  • Title

1

Toro 310246

Rod Assy., Connecting (Incl. Nos. 2, 2A 2B)

$

$

Currently unavailable

2

Toro 530104A

Bearing-Cartridge

$

$

Currently unavailable

2A

Toro 650633

Bolt-Rod, Connecting

$

$

Currently unavailable

2B

Toro 530150

Needle Bearing and Liner Set (37 Needles)

$

$

Currently unavailable

3

Toro 310230A

Piston Assy. (Incl. Nos. 4, 5 6)

$

$

Currently unavailable

4

Toro 310178

Pin, Piston

$

$

Currently unavailable

5

Toro 310190

Ring Set

$

$

Currently unavailable

6

Toro 310167

Ring-Retaning

$

$

Currently unavailable

7

Toro 290496

Crankshaft

$

$

Currently unavailable

8

Toro 250263A

Block Assy., Cylinder (Incl. Nos. 9 thru 12)

$

$

Currently unavailable

9

Toro 530143A

Bearing, Needle

$

$

Currently unavailable

10

Toro 510145

Seal, Crankshaft

$

$

Currently unavailable

11

Toro 510143

Retainer, Crankshaft Seal

$

$

Currently unavailable

12

Toro 510142

Spring, Crankshaft Seal Retainer

$

$

Currently unavailable

13

Toro 510274

Gasket, Head

Note: Included In Gasket Set Num 510296b.

$

$

Currently unavailable

14

Toro 250240A

Head-Cylinder

$

$

Currently unavailable

15

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

16

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

17

Toro 570630

Ring, Retaining

$

$

Currently unavailable

20

Toro 510282A

Gasket, Reed Plate

Note: Included In Gasket Set Num 510296b.

$

$

Currently unavailable

21

Toro 470149

Plate Assy., Reed (Incl. No. 22)

$

$

Currently unavailable

22

Toro 650700

Stud Carburetor

$

$

Currently unavailable

23

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

24

Toro 510110

Gasket, Carburetor

Note: Included In Gasket Set Num 510296b.

$

$

Currently unavailable

25

Toro 650457

Locknut

$

$

Currently unavailable

26

Toro 510292

Gasket, Shroud Base

Note: Included In Gasket Set Num 510296b.

$

$

Currently unavailable

27

Toro 350388

Base Assy., Housing (Incl. Nos. 29, 30 31)

$

$

Currently unavailable

28

Toro 530110

Bearing-Ball

$

$

Currently unavailable

29

Toro 510105

Seal, Crankshaft
(Superseded to 510195)

$

$

Not available

30

Toro 510106A

Retainer, Crankshaft Seal

$

$

Currently unavailable

31

Toro 510109A

Spring, Crankshaft Seal Retainer

$

$

Currently unavailable

32

Toro 570417

Spring, Governor

$

$

Currently unavailable

33

Toro 570421

Lever, Control

$

$

Currently unavailable

34

Toro 570422

Washer

$

$

Currently unavailable

35

Toro 570412

Spacer

$

$

Currently unavailable

36

Toro 570415

Lever, Adjusting

$

$

Currently unavailable

37

Toro 650583

Washer

$

$

Currently unavailable

38

Toro 650544

Screw, Pan Flex Hd.

$

$

Currently unavailable

39

Toro 31342

Spring-Compression

$

$

Currently unavailable

40

Toro 650549

Screw

$

$

Currently unavailable

41

Toro 650497

Screw

$

$

Currently unavailable

42

Toro 27272

Gasket

$

$

Currently unavailable

43

Toro 32389

Elbow, Carburetor

$

$

Currently unavailable

44

Toro 650605

Screw, Rd. Hd. Mach.

$

$

Currently unavailable

45

Toro 33450

Nut-Lock

$

$

Currently unavailable

46

Toro 32388

Elbow

$

$

Currently unavailable

47

Toro 450230

Air Cleaner Pan

$

$

Currently unavailable

48

Toro 29786

Screw

$

$

Currently unavailable

49

Toro 450229

Air Cleaner Element

$

$

Currently unavailable

50

Toro 450231

Air Cleaner Cover

$

$

Currently unavailable

51

Toro 650518

Washer-Lock

$

$

Currently unavailable

52

Toro 650715

Wing Screw

$

$

Currently unavailable

53

Toro 550201

Air Cleaner Decal

$

$

Currently unavailable

54

Toro 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

55

Toro 610961

Key-Flywheel

$

$

Currently unavailable

56

Toro 590417

Screen, Air

$

$

Currently unavailable

57

Toro 650763

Washer-Spring

$

$

Currently unavailable

58

Toro 650390

Nut-Flywheel

$

$

Currently unavailable

59

Toro 590416

Starter Cup

$

$

Currently unavailable

60

Toro 610973

Terminal

$

$

Currently unavailable

61

Toro 550206

Decal, Warning

$

$

Currently unavailable

62

Toro 550208

Decal, Fuel Mix

$

$

Currently unavailable

63

Toro 610974

Wire, Ground

$

$

Currently unavailable

64

Toro 350393

Housing, Blower

$

$

Currently unavailable

65

Toro 650356

Screw-Hex, Hd.

$

$

Currently unavailable

69

Toro 570420

Bracket, Boden Wire

$

$

Currently unavailable

70

Toro 27793

Conduit

$

$

Currently unavailable

71

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

72

Toro 510314

Gasket, Exhaust

Note: Included In Gasket Set Num 510296b.

$

$

Currently unavailable

73

Toro 330175

Ring, Adapter

$

$

Currently unavailable

74

Toro 390297

Muffler

$

$

Currently unavailable

75

Toro 650797

Screw, Flanged Hex Hd.

$

$

Currently unavailable

76

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

78

Toro 610794A

Magneto

$

$

Currently unavailable

79

Toro 632074

Carburetor (Incl. No. 24)

$

$

Currently unavailable

80

Toro 590420

Starter, Rewind

$

$

Currently unavailable

81

Toro 510296B

Gasket Set

$

$

Currently unavailable
