23370 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HANDLE ASSEMBLY Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

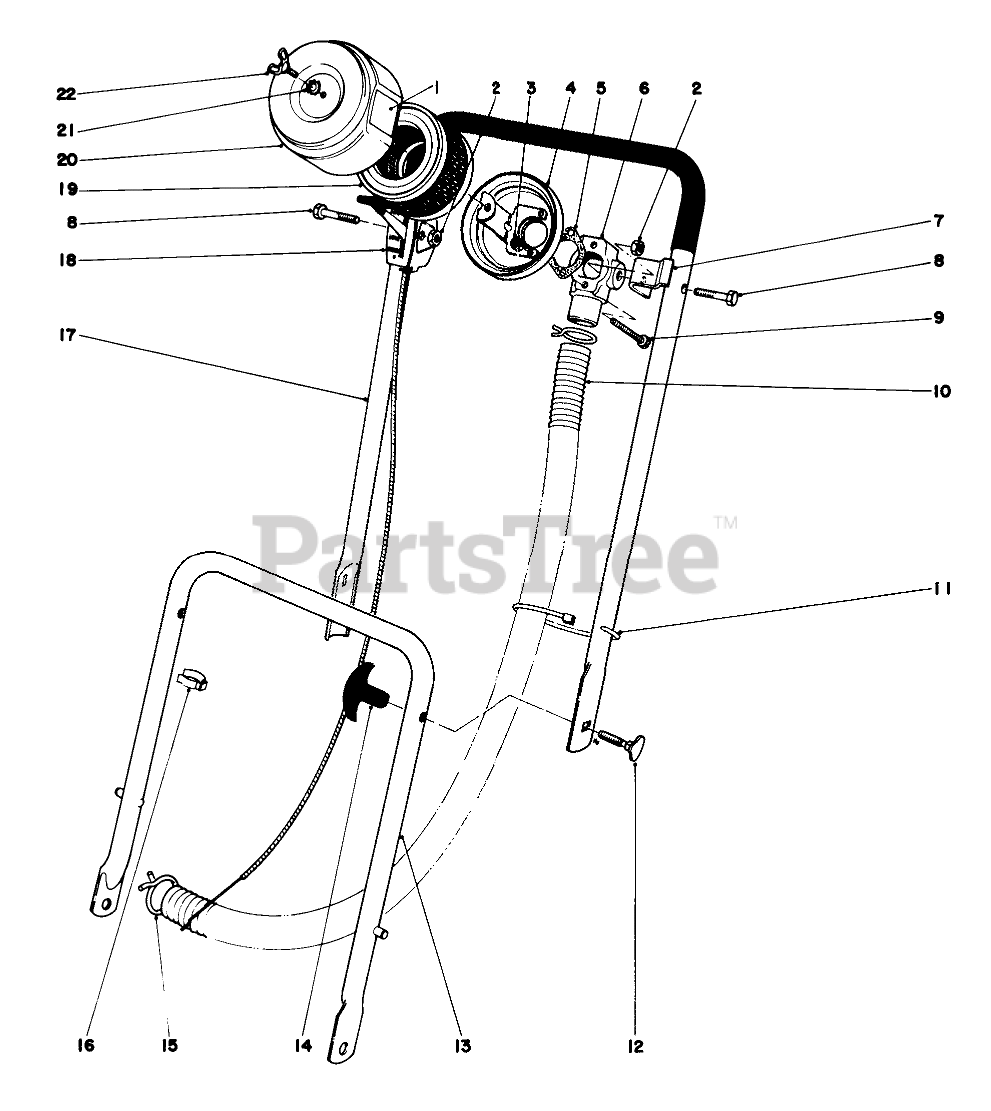

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Tecumseh 550201

Air Cleaner Decal

$

$

Currently unavailable

2

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

3

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 450230

Air Cleaner Pan

$

$

Currently unavailable

5

Tecumseh 27272

Gasket
(Superseded to 27272A)

$4.49

$

In Stock, Qty 20+

0

6

Tecumseh 32388

Elbow

$

$

Currently unavailable

7

Toro 36-8750

Support Air Cleaner

$

$

Not available

8

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 1 left!

0

9

Toro 3290-423

Slotted Hex Hd. Machine Screw

$

$

Not available

10

Toro 37-0130

Air Cleaner Hose

$

$

Not available

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 12

0

12

Toro 6-6330

HANDLE SCREW

$

$

Not available

13

Toro 27-7050

Lower Handle
(Superseded to 38-1260)

$202.99

$

Usually ships in 3-6 days

0

14

Toro 233-41

KNOB

$

$

Not available

15

Toro 2412-69

CLAMP

$

$

Not available

16

Toro 218-465

BOWDEN CLIP

$

$

Not available

17

Toro 36-8880

Handle Upper

$

$

Not available

18

Toro 29-8610

THROTTLE CONTROL

$

$

Not available

19

Tecumseh 450229

Air Cleaner Element

$

$

Currently unavailable

20

Tecumseh 450231

Air Cleaner Cover

$

$

Currently unavailable

21

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

22

Tecumseh 650715

Wing Screw

$

$

Currently unavailable

Toro 8-2259

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
