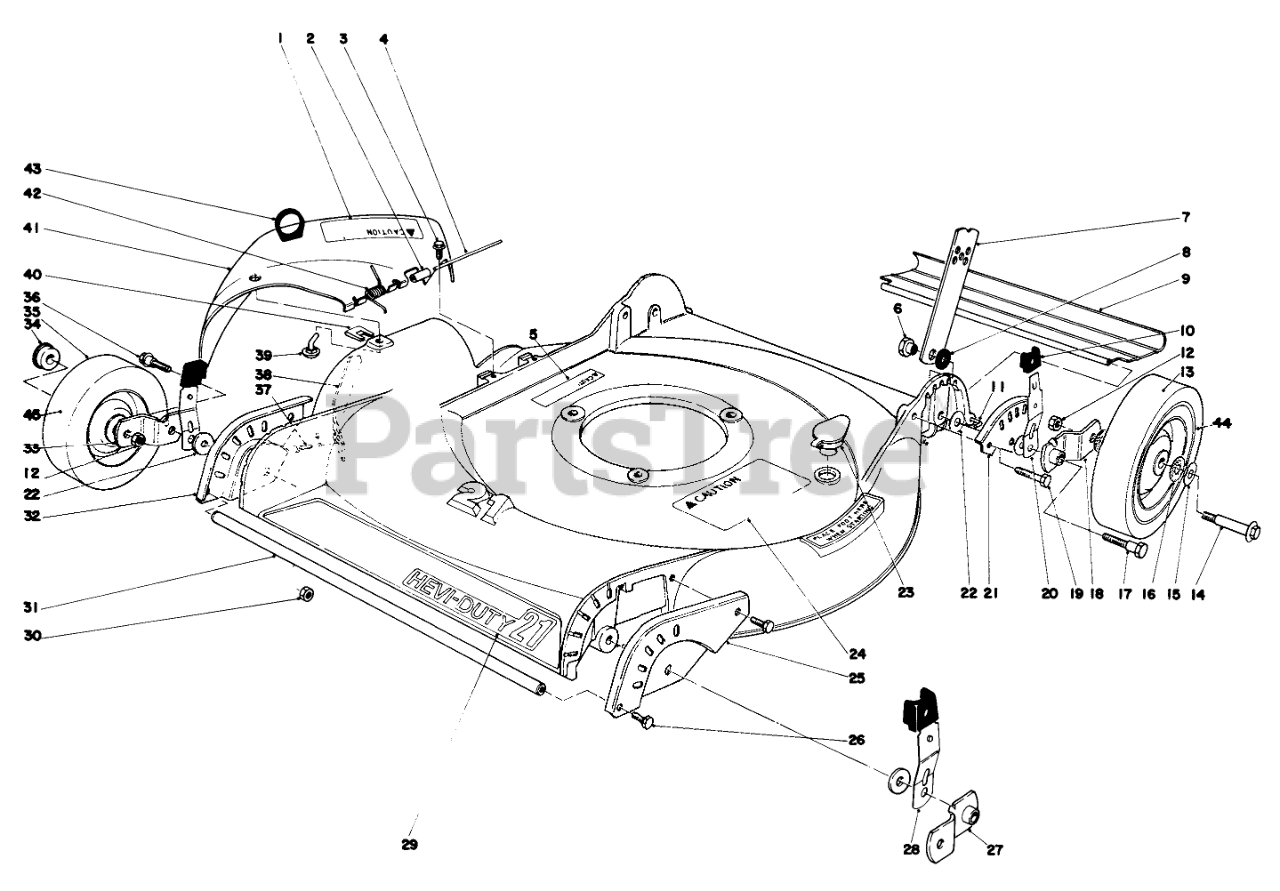

23370 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HOUSING ASSEMBLY Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 20-4330

Caution Decal

$

$

Not available

2

Toro 28-3270

SLEEVE

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

4

Toro 3-2644

HINGE PIN

$

$

Not available

5

Toro 3-7643

Decal
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

6

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

7

Toro 27-7080

HANDLE LATCH

$22.99

$

Usually ships in 3-6 days

0

8

Toro 27-6510

HANDLE LATCH SPACER

$4.99

$

Usually ships in 3-6 days

0

9

Toro 28-3780

SHIELD - TRAILING

$

$

Not available

10

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

11

Toro 33-3201

SHIELD ROD

$

$

Not available

12

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

13

Toro 36-8850

Wheel Assembly (Incl. Ref. #34 & 44)

$

$

Not available

14

Toro 3-2652

Bolt

$

$

Not available

15

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

16

Toro 26-7500

FELT WASHER

$

$

Not available

17

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

18

Toro 37-1160

PIVOT ARM ASM "B"

$

$

Not available

Toro 37-1180

Pivot Arm "A"
(Superseded to 39-2560)

Note: Not illustrated

$

$

Not available

19

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

20

Toro 36-8890

Spring Arm Rear

$

$

Not available

21

Toro 36-8710

Wheel Quadrant L.H.

$

$

Not available

22

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

23

Toro 6-4500

WASHOUT PLUG

$

$

Not available

24

Toro 29-4720

DECAL SAF INST

$

$

Not available

25

Toro 36-8700

LH WHEEL QUAD FR

$

$

Not available

26

Toro 32104-38

SELF TAPPING SCREW

$

$

Not available

27

Toro 36-8830

Pivot Arm "C"

$

$

Not available

28

Toro 36-8900

Spring Arm Assembly (Front)

$

$

Not available

29

Toro 26-7740

Decal Hevi-Duty 21

$

$

Currently unavailable

30

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

31

Toro 36-8810

Bumper

$

$

Not available

32

Toro 36-8680

RH WHEEL QUAD FRONT

$

$

Not available

Toro 36-8720

REAR WHEEL QUAD RH

Note: Not illustrated

$

$

Not available

33

Toro 36-8820

Pivot Arm Assembly "D"

$

$

Not available

34

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

35

Toro 36-8840

Wheel Assembly (Incl. Ref. #34 & 45)

$

$

Not available

36

Toro 25-3440

PIVOT SCREW

$

$

Not available

37

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

38

Toro 12-2990

Bar Safety

$

$

Not available

39

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

40

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

41

Toro 36-2970

Deflector

$

$

Not available

42

Toro 28-1560

TORSION SPRING

$

$

Not available

43

Toro 28-1430

LIFT LOOP

$

$

Not available

44

Toro 36-8990

Tire

$

$

Not available

45

Toro 36-8980

TIRE 7"

$

$

Not available
